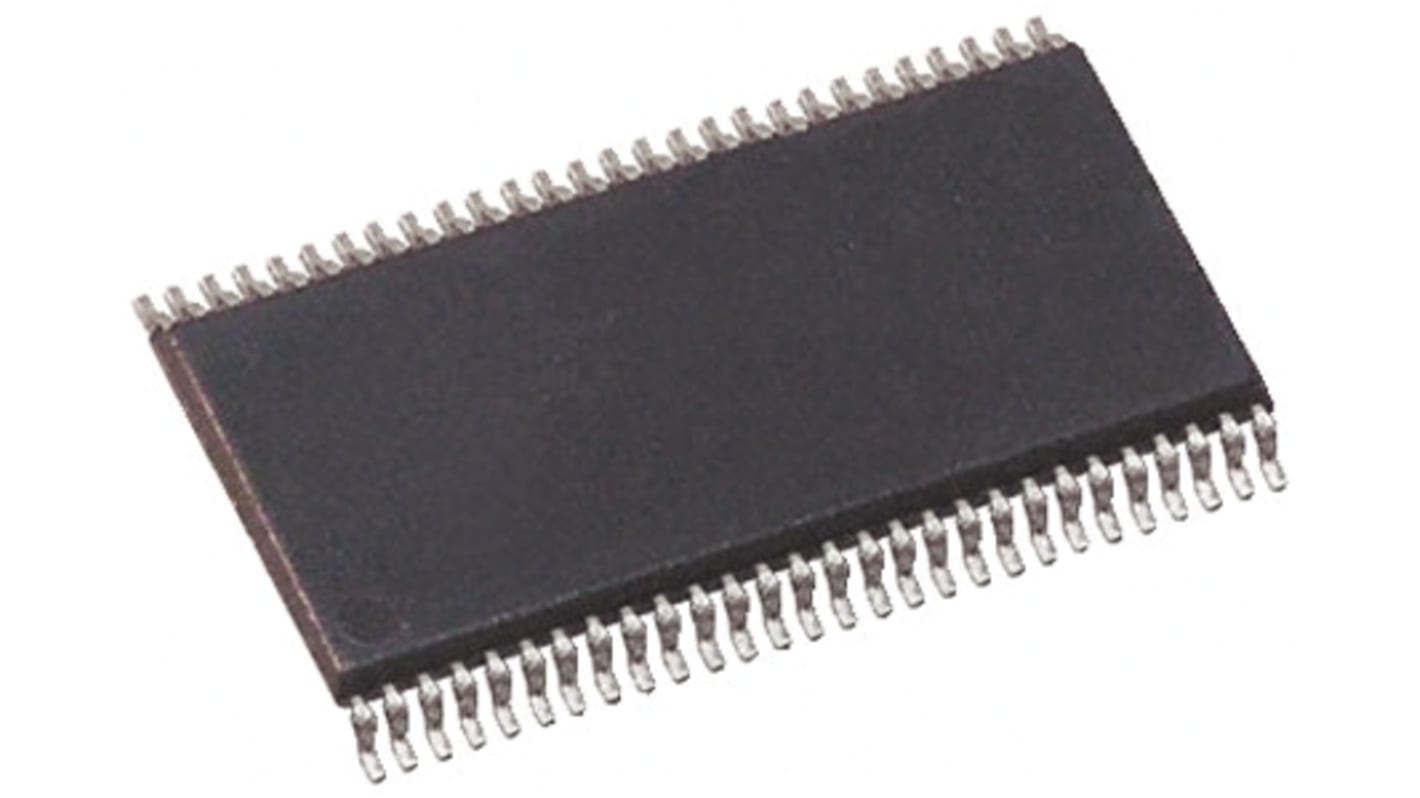

Texas Instruments, Serdes IC 28 CMOS LVDS, 56-Pin TSSOP
- N° de stock RS:
- 121-9403
- Référence fabricant:
- SN75LVDS83BDGG
- Fabricant:
- Texas Instruments
Offre groupée disponible
Sous-total (1 tube de 35 unités)*
185,78 €
(TVA exclue)
224,805 €
(TVA incluse)
Ajouter 35 unités pour bénéficier d'une livraison gratuite
En stock
- Plus 35 unité(s) expédiée(s) à partir du 23 février 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le tube* |
|---|---|---|
| 35 - 35 | 5,308 € | 185,78 € |
| 70 - 140 | 4,767 € | 166,85 € |
| 175 + | 4,645 € | 162,58 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 121-9403
- Référence fabricant:
- SN75LVDS83BDGG
- Fabricant:
- Texas Instruments
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Texas Instruments | |
| Number of Drivers | 28 | |
| Product Type | Serdes IC | |
| Number of Receivers | 28 | |
| Input Type | CMOS | |
| Output Type | LVDS | |
| Sub Type | Serdes | |
| Transmission Data Rate | 135Mbps | |
| Number of Elements per Chip | 4 | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Pin Count | 56 | |
| Minimum Supply Voltage | 1.62V | |
| Differential Input High Threshold Voltage | 1.8V | |
| Differential Input Low Threshold Voltage | 0.81V | |
| Maximum Supply Voltage | 3.6V | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.05mm | |
| Length | 14.1mm | |
| Series | SN75LVDS83B | |
| Standards/Approvals | RoHS | |
| Width | 6.2 mm | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Texas Instruments | ||
Number of Drivers 28 | ||
Product Type Serdes IC | ||
Number of Receivers 28 | ||
Input Type CMOS | ||
Output Type LVDS | ||
Sub Type Serdes | ||
Transmission Data Rate 135Mbps | ||
Number of Elements per Chip 4 | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Pin Count 56 | ||
Minimum Supply Voltage 1.62V | ||
Differential Input High Threshold Voltage 1.8V | ||
Differential Input Low Threshold Voltage 0.81V | ||
Maximum Supply Voltage 3.6V | ||
ESD Protection Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 1.05mm | ||
Length 14.1mm | ||
Series SN75LVDS83B | ||
Standards/Approvals RoHS | ||
Width 6.2 mm | ||
Automotive Standard No | ||
FlatLink/FPD-Link Serialiser/Deserialiser, Texas Instruments
LVDS Transmitters for use with 24-bit FPD (Flat Panel Display) links operating at 65 and 85 MHz.
LVCMOS/LVTTL inputs
3.3V Low-power operation
PLL transmitter data clock
Complies with TIA/EIA-644 LVDS standard
LVDS Communication
Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.
Applications: Firewire, SATA, SCSI
