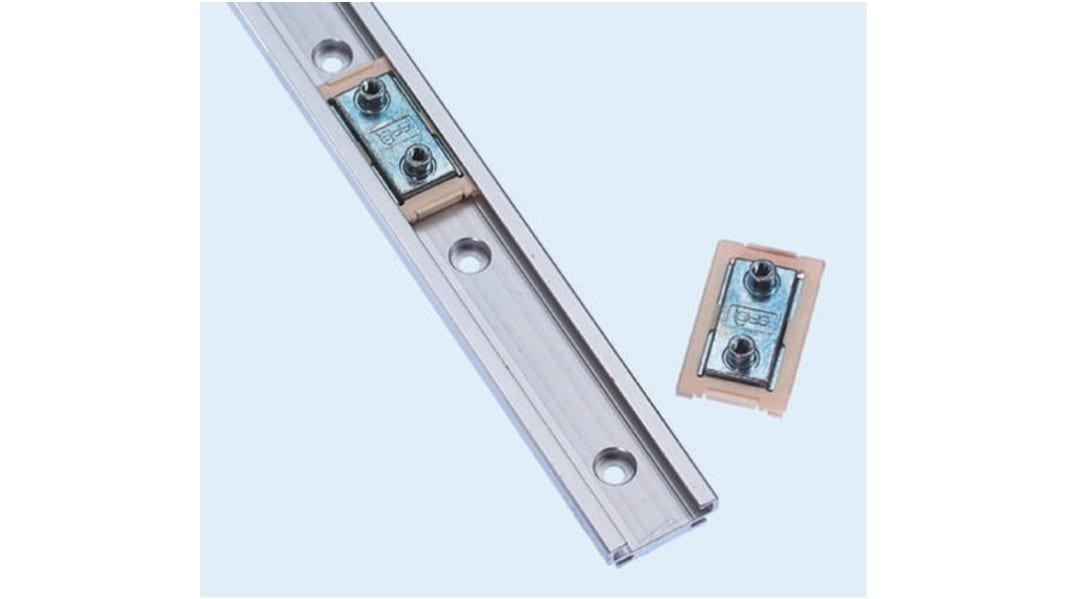

Igus N Series, NS-01-27-1000, Linear Guide Rail 27 mm width 1000 mm Length
- N° de stock RS:
- 375-2417
- Référence fabricant:
- NS-01-27-1000
- Fabricant:
- Igus
Visuel non contractuel
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
39,41 €
(TVA exclue)
47,69 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 16 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 60 unité(s) expédiée(s) à partir du 04 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 39,41 € |
| 5 - 9 | 37,84 € |
| 10 + | 37,05 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 375-2417
- Référence fabricant:
- NS-01-27-1000
- Fabricant:
- Igus
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Igus | |
| Product Type | Linear Guide Rail | |
| Rail Width | 27mm | |
| Rail Length | 1000mm | |
| Series | N | |
| Material | Anodised Aluminium | |
| Static Load Rating | 500N | |
| Standards/Approvals | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Igus | ||
Product Type Linear Guide Rail | ||
Rail Width 27mm | ||
Rail Length 1000mm | ||
Series N | ||
Material Anodised Aluminium | ||
Static Load Rating 500N | ||
Standards/Approvals No | ||
Statut RoHS : Exempté
- Pays d'origine :
- DE
Igus Series N Linear Guide Rail, 27mm Rail Width, 1000mm Rail Length - NS-01-27-1000
This linear guide rail provides a guided sliding solution for motion systems, designed for use in automation and mechanical assemblies where controlled linear movement is required. It is fabricated from anodised aluminium for a balance of weight reduction and surface protection, making it suitable for integration into equipment.
Features and Benefits:
• 500N static load rating delivers high load-bearing capacity
• 27mm rail width supports compact linear motion arrangements
• 1000mm length enables extended stroke applications
• Anodised aluminium construction offers enhanced surface durability
• Compatible with precision guide components for accurate positioning
• 27mm rail width supports compact linear motion arrangements
• 1000mm length enables extended stroke applications
• Anodised aluminium construction offers enhanced surface durability
• Compatible with precision guide components for accurate positioning
Applications
• Suitable for linear actuator mounts in automated machinery
• Ideal for equipment frames in electronic assembly stations
• Used with sliding stages in test and measurement rigs
• Can be used for positioning systems in electrical enclosures
• Suitable for CNC accessory upgrades requiring guided motion
• Ideal for equipment frames in electronic assembly stations
• Used with sliding stages in test and measurement rigs
• Can be used for positioning systems in electrical enclosures
• Suitable for CNC accessory upgrades requiring guided motion
What material treatment improves resistance to surface wear?
The rail is anodised, creating a hard oxide layer that increases surface abrasion resistance and reduces the risk of corrosion in typical indoor industrial settings.
How should I account for static loads when selecting this rail?
Use the 500N static load rating as the maximum supported stationary load per rail
factor in safety margins and dynamic forces separately when configuring assemblies.
What mounting considerations apply to installation?
The rail width is 27mm, so ensure mating carriage and mounting fixtures match this profile and that mounting surfaces are flat to maintain alignment.
How does the rail support precision motion systems?
Its aluminium profile provides a stable guide for compatible precision sliding components, enabling repeatable linear positioning when mounted with correct geometry.
