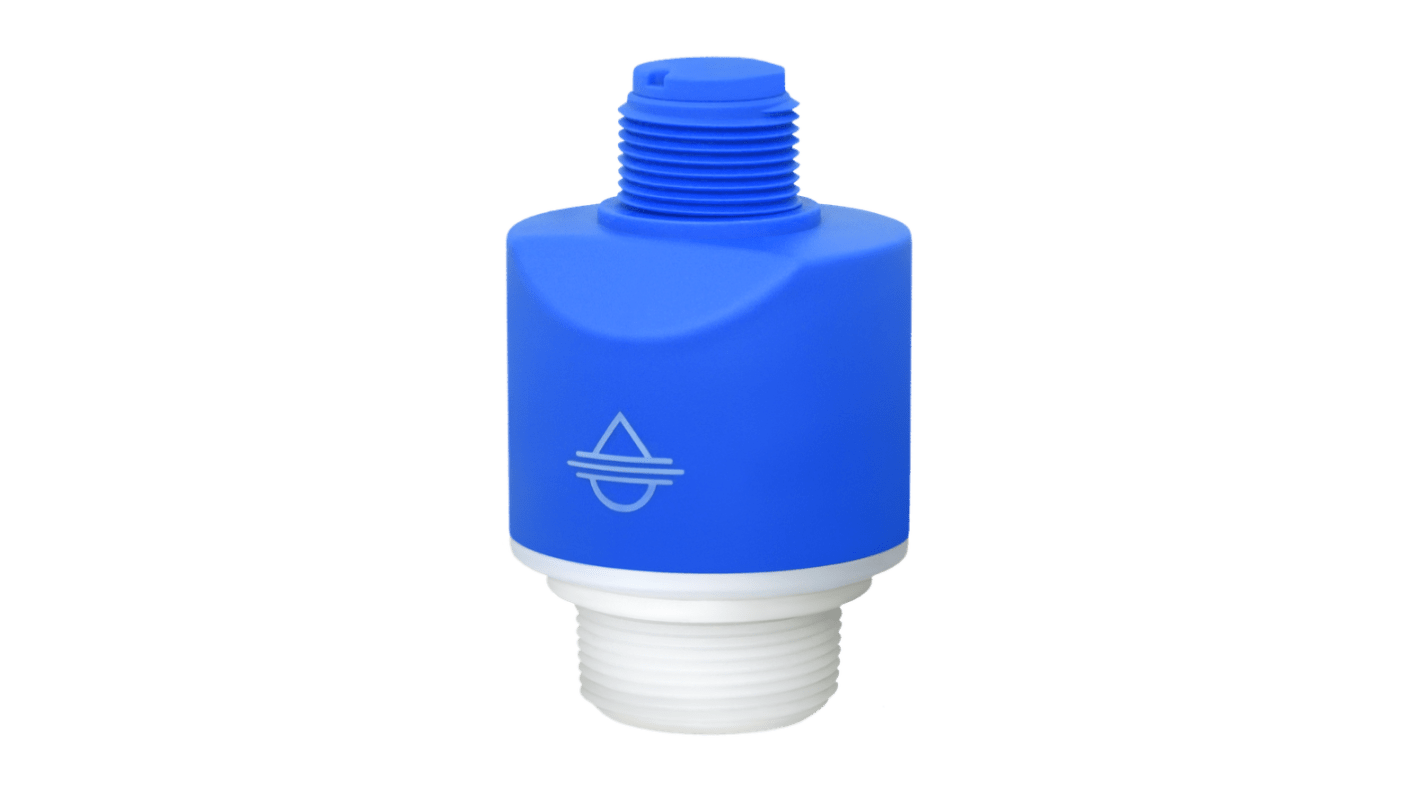

Flowline LR80 Series Radar Level Sensor, Flange, Viton, Housing Polyvinylidene Difluoride
- N° de stock RS:
- 149-396
- Référence fabricant:
- LR80-0010
- Fabricant:
- Flowline
Sous-total (1 unité)*
862,21 €
(TVA exclue)
1 043,27 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 14 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 862,21 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 149-396
- Référence fabricant:
- LR80-0010
- Fabricant:
- Flowline
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Flowline | |
| Product Type | Level Sensor | |
| Device Type | Radar | |
| Mount Type | Flange | |
| Housing Material | Polyvinylidene Difluoride | |
| Cable Length | 10mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 60°C | |
| Maximum DC Voltage | 30V dc | |
| Maximum Current | 20mA | |
| Maximum Pressure | 3bar | |
| Gasket Material | Viton | |
| Standards/Approvals | 15.209, 15C ISED IC:RSS-102, -33, 6 (1) (b), 6 (2) CE/Red 2014/53/EU:EN 302 372, C22.2 No. 61010-1-12 FCC:Part 15.256, RSS-247 UKCA RER 2017:6 (1) (a), REACH, RSS-211, Conflict Minerals, CRN, EN 300 328 SRRC: (No. (2002) 353) RoHS, EN 301 489-1, EN 302 729 | |
| Hazardous Area Certification | No | |
| Series | LR80 | |
| Sélectionner tout | ||
|---|---|---|
Marque Flowline | ||
Product Type Level Sensor | ||
Device Type Radar | ||
Mount Type Flange | ||
Housing Material Polyvinylidene Difluoride | ||
Cable Length 10mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 60°C | ||
Maximum DC Voltage 30V dc | ||
Maximum Current 20mA | ||
Maximum Pressure 3bar | ||
Gasket Material Viton | ||
Standards/Approvals 15.209, 15C ISED IC:RSS-102, -33, 6 (1) (b), 6 (2) CE/Red 2014/53/EU:EN 302 372, C22.2 No. 61010-1-12 FCC:Part 15.256, RSS-247 UKCA RER 2017:6 (1) (a), REACH, RSS-211, Conflict Minerals, CRN, EN 300 328 SRRC: (No. (2002) 353) RoHS, EN 301 489-1, EN 302 729 | ||
Hazardous Area Certification No | ||
Series LR80 | ||
- Pays d'origine :
- IN
The Flowline general purpose 80 GHz radar sensor provides continuous level measurement up to 10m for liquids or 5m for solids with a 4 to 20 mA signal output. The sensor is wirelessly configured over Bluetooth via our LevelTap App which enables you to see the level, verify the status, and manage the settings of connected sensors from the safety of the ground or nearby catwalk.
80 GHz technology provides reliable, maintenance-free operation
Rugged PVDF antenna and enclosure for corrosive liquid or solids
IP68 rated sensor for harsh outdoor or below grade installations
Sealed 10m PVC jacketed cable for corrosive level environments
Zero dead band maximizes the potential fill capacity of small tanks
Optionally measures through top wall of plastic or fiberglass tanks
