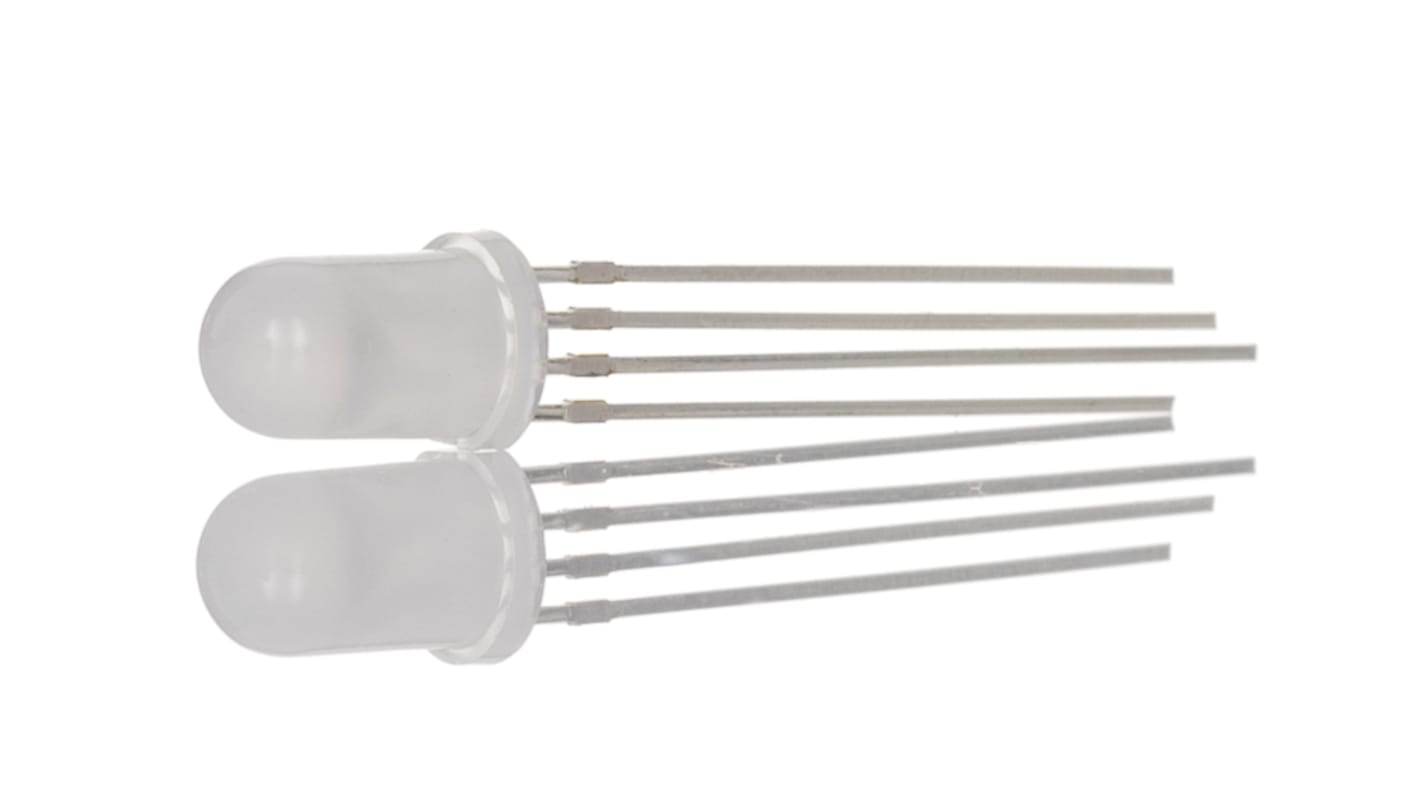

RS PRO1.6 → 3.6V RGB LED 5 mm Through Hole

Voir l’ensemble des LEDs
Offre groupée disponible

Sous-total (1 paquet de 5 unités)*

2,00 €

(TVA exclue)

2,40 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 555 unité(s) prête(s) à être expédiée(s)
  • Plus 7 320 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
le paquet*
5 - 200,40 €2,00 €
25 - 450,394 €1,97 €
50 - 1200,368 €1,84 €
125 - 4950,318 €1,59 €
500 +0,238 €1,19 €

*Prix donné à titre indicatif

N° de stock RS:
254-5727
Fabricant:
RS PRO
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

RS PRO

LED Colours

RGB

Package Type

5 mm

Mounting Type

Through Hole

Number of LEDs

1

Forward Voltage

1.6 → 3.6V

Luminous Intensity

150 → 5000mcd

Number of Pins

4

Viewing Angle

60°

Lens Shape

Round

Dominant Wavelength

624/525/470nm

Dimensions

5 x 8.65mm

Forward Current

25mA

Lens Colour

White

Pays d'origine :
CN
An IC compatible robust multicolour LED (Light Emitting Diode) featuring Red, Pure Green and Blue. A multipurpose 4 pin LED with a single common anode type offering low power consumption and a high level of reliability.

Designed for through hole mounting the LED is easy to mount with minimum soldering using the 4 leads and at 5mm the round LED lens is clear and easily visible.

This LED utilises a solid state design for long service life and a reliable uniform light output. Ideal for use in applications such as telephones, computers, TV’s and monitors.

Features and Benefits


  • 5mm Round LED

  • Viewing angle of 60°

  • Pin Length of 24 - 27mm

  • Pin diameter of 0.5mm

  • Distance between Pins 1.27mm

  • Operating temperature range of -40°C to 80°C

Standards: ROHS compliant, EU REACH compliant
