MEAN WELL LED Driver, 12 V Output, 40.08 W Output, 3.34 A 1 to 10 V PWM Resistance

Voir l’ensemble des LED Drivers
Offre groupée disponible

Sous-total (1 unité)*

38,51 €

(TVA exclue)

46,60 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 3 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
  • Plus 11 unité(s) expédiée(s) à partir du 27 février 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 - 438,51 €
5 - 937,55 €
10 - 2436,59 €
25 +34,76 €

*Prix donné à titre indicatif

N° de stock RS:
738-1640
Numéro d'article Distrelec:
169-96-740
Référence fabricant:
LPF-40D-12
Fabricant:
MEAN WELL
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

MEAN WELL

Output Voltage

12 V

Product Type

LED Driver

Maximum Output Power

40.08W

Input Voltage

127 → 431 V dc, 90 → 305 V ac

Mount Type

Screw

Sub Type

LED Driver

Dimming Operation

1 to 10 V PWM Resistance

Input Voltage Type

AC/DC

Terminal Type

Wire

IP Rating

IP67

Operating Modes

Constant Voltage

Driver Current

3.34 A

Series

LPF-40D

Standards/Approvals

UL, TUV, SELV, ENEC, CSA, CE

Number of Outputs

5

Configuration

Enclosed

Primary Type

AC-DC

Power Dissipation

40.08W

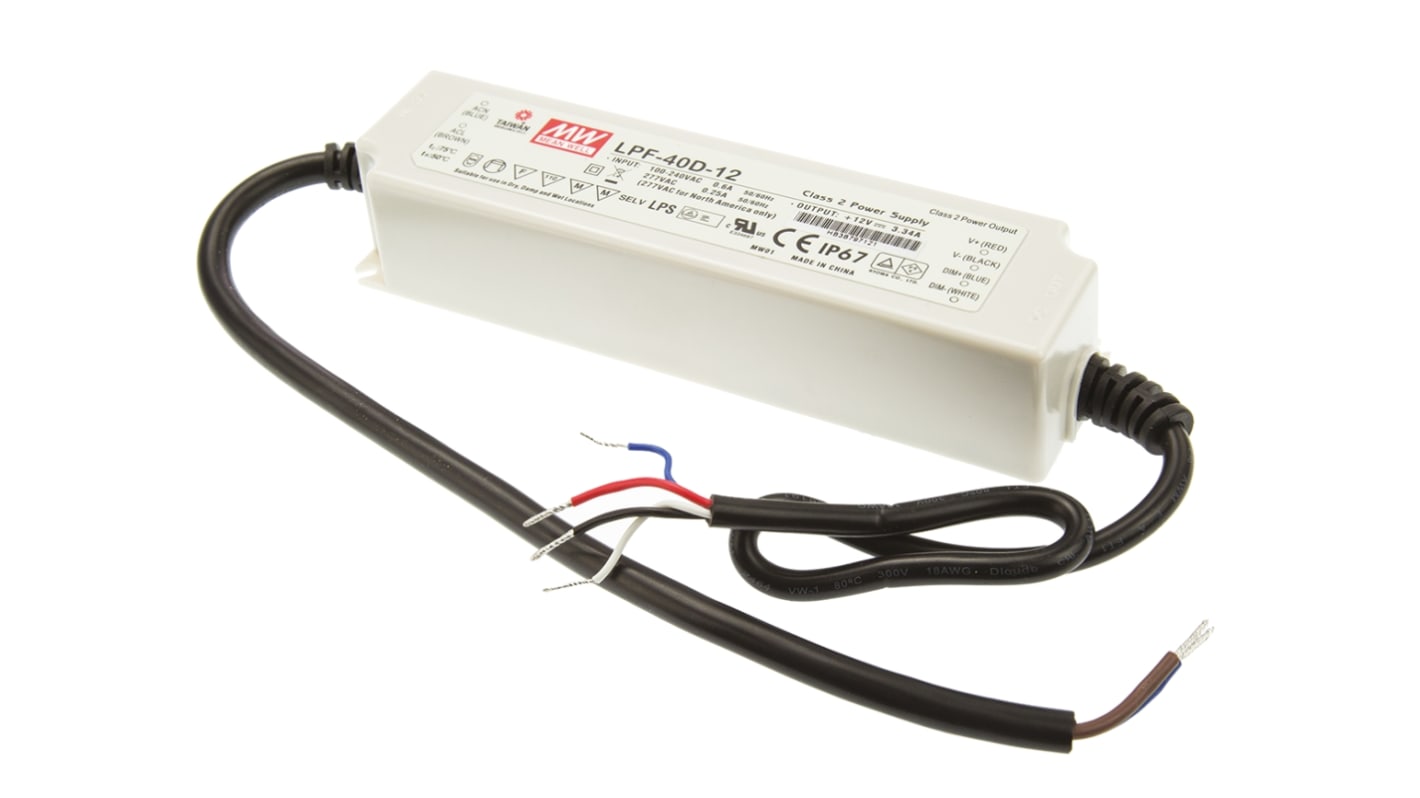

Mean Well 40W IP67 Dimmable Constant Voltage LED Driver / Power Supply - LPF Series


LPF-40D series 40W IP67 waterproof dimmable constant voltage LED driver / power supply with universal AC input. These IP67 dimmable LED drivers / power supplies have a built in 3 in 1 dimming function, IP67 encapsulation and built in active PFC function. Suitable applications for these dimmable IP67 LED drivers / power supplies include LED lighting and moving sign applications.

Full range universal AC input

Fully encapsulated to IP67

Fully isolated plastic case

Free air convection cooling

Built in active PFC function

Built in 3 in 1 dimming function (1 to 10 Vdc or PMW signal or resistance)

Short circuit, overload, over voltage and over temperature protection

High efficiency of up to 89%

Compliance to worldwide safety regulations for lighting

EMC compliance to EN55015

Harmonic current compliance to EN61000-3-2 Class C (≥60% load); EN61000-3-3

Mean Well LED Drivers / Power Supplies - IP Rated


Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
MTBF to MIL-HDBK-217F
Derate output above 50°C operating temperature

Approvals

cULus, TUV

Standards

UL8750, EN61347-1, EN61347-2-13 independent, IP67 approved; Design refer to UL60950-1, TUV EN60950-1
