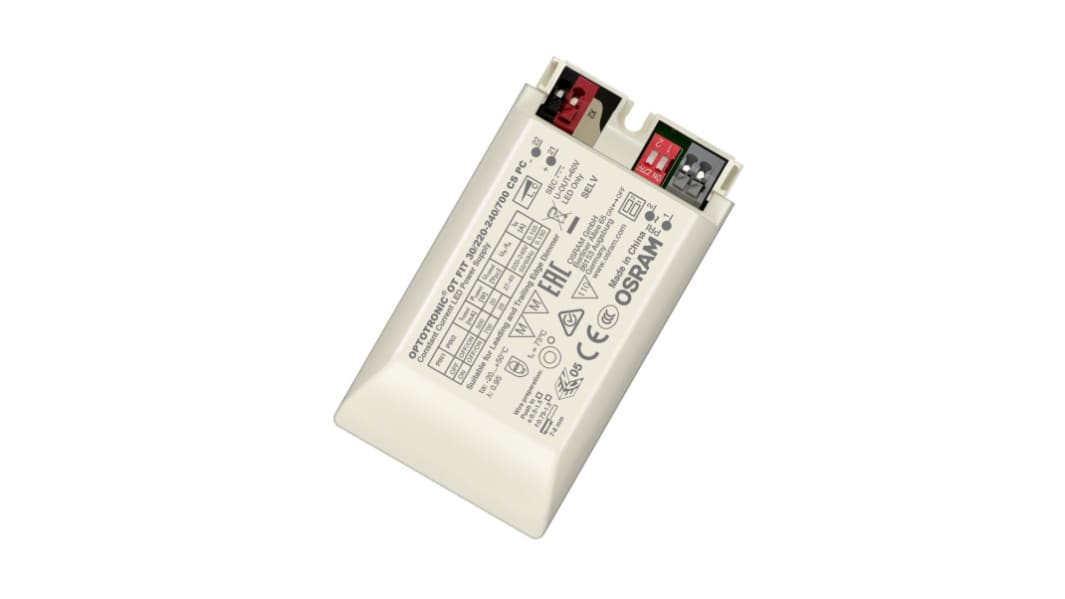

Osram LED Driver, 27/40 V Output, 28 W Output, 500 to 700 mA PWM
- N° de stock RS:
- 251-5262
- Référence fabricant:
- OT-FIT-30/220-240/700-CS-PC
- Fabricant:
- Osram
Offre groupée disponible
Sous-total (1 unité)*
18,38 €
(TVA exclue)
22,24 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité | Prix par unité |
|---|---|
| 1 - 4 | 18,38 € |
| 5 - 9 | 17,45 € |
| 10 - 24 | 16,58 € |
| 25 - 49 | 15,75 € |
| 50 + | 15,16 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 251-5262
- Référence fabricant:
- OT-FIT-30/220-240/700-CS-PC
- Fabricant:
- Osram
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Osram | |
| Output Voltage | 27/40 V | |
| Product Type | Constant Voltage LED Driver | |
| Maximum Output Power | 28W | |
| Input Voltage | 220/240 V | |
| Mount Type | Independent | |
| Sub Type | LED Driver | |
| Dimming Operation | PWM | |
| Terminal Type | Push Terminal | |
| Input Voltage Type | AC | |
| IP Rating | IP20 | |
| LED Voltage | 27 to 40 V | |
| Driver Current | 500 to 700 mA | |
| Operating Modes | Constant Current | |
| Series | OT FIT | |
| Standards/Approvals | Acc. to IEC 61000-3-2, Acc. to IEC 61347-2-13, Acc. to IEC 62384, Standards Acc. to IEC 61347-1 | |
| Power Dissipation | 5.0W | |
| Sélectionner tout | ||
|---|---|---|
Marque Osram | ||
Output Voltage 27/40 V | ||
Product Type Constant Voltage LED Driver | ||
Maximum Output Power 28W | ||
Input Voltage 220/240 V | ||
Mount Type Independent | ||
Sub Type LED Driver | ||
Dimming Operation PWM | ||
Terminal Type Push Terminal | ||
Input Voltage Type AC | ||
IP Rating IP20 | ||
LED Voltage 27 to 40 V | ||
Driver Current 500 to 700 mA | ||
Operating Modes Constant Current | ||
Series OT FIT | ||
Standards/Approvals Acc. to IEC 61000-3-2, Acc. to IEC 61347-2-13, Acc. to IEC 62384, Standards Acc. to IEC 61347-1 | ||
Power Dissipation 5.0W | ||
- Pays d'origine :
- CN
The Osram Optotronic phase-cut LED driver is compatible with the most common leading-edge and trailing-edge phase dimmers. It has flexible current setting and flicker-free dimming.
Cable clamp housing for independent mounting
Dimmable on the leading edge and trailing edge
Housing for independent installation
