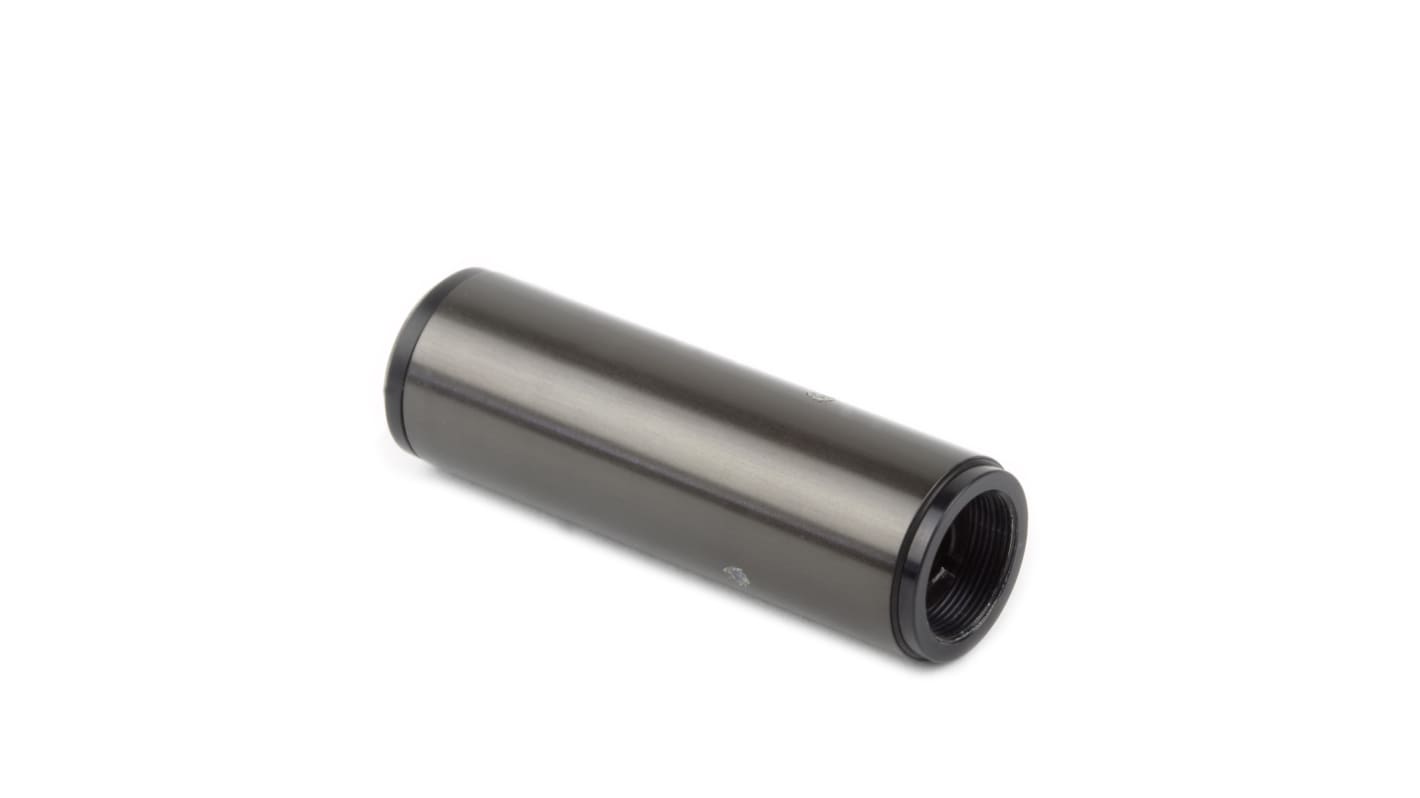

Global Laser 1421-128-000 Laser Module 650 nm 0.36 mW Diode, PWM control Dot pattern 10V 10 V
- N° de stock RS:
- 260-5829
- Référence fabricant:
- 1421-128-000
- Fabricant:
- Global Laser
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
312,30 €
(TVA exclue)
377,88 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité | Prix par unité |
|---|---|
| 1 - 4 | 312,30 € |
| 5 - 9 | 296,69 € |
| 10 - 24 | 282,01 € |
| 25 + | 267,64 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 260-5829
- Référence fabricant:
- 1421-128-000
- Fabricant:
- Global Laser
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Global Laser | |
| Product Type | Laser Module | |
| Laser Type | Diode | |
| Laser Colour | Green | |
| Emission Pattern | Dot | |
| Laser Wavelength | 650nm | |
| Optical Output Power | 0.36mW | |
| Laser Class | 1 | |
| Control Type | PWM | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 65°C | |
| Standards/Approvals | IEC 60825-1:2014, RoSH | |
| Diameter | 14mm | |
| Length | 47.10mm | |
| Maximum Supply Voltage | 10V | |
| Minimum Supply Voltage | 10V | |
| Supply Current | 4mA | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Global Laser | ||
Product Type Laser Module | ||
Laser Type Diode | ||
Laser Colour Green | ||
Emission Pattern Dot | ||
Laser Wavelength 650nm | ||
Optical Output Power 0.36mW | ||
Laser Class 1 | ||
Control Type PWM | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 65°C | ||
Standards/Approvals IEC 60825-1:2014, RoSH | ||
Diameter 14mm | ||
Length 47.10mm | ||
Maximum Supply Voltage 10V | ||
Minimum Supply Voltage 10V | ||
Supply Current 4mA | ||
Automotive Standard No | ||
- Pays d'origine :
- GB
The Global Laser Blue, green & red Modula table laser diode. It is represent the highest level of optical and electrical performance at an economical price, and combination that is unmatched in the marketplace. The secret of their superiority is a control circuit design, which is not only gives you excellent output power, but also stability over time and temperature, it is offers fast, closed-loop modulation with an extinction, and ratio as high as 10000:1. The lversion allows you to control the output intensity linearly by applying a voltage of between 0 to1 volts, to the control input. Stability over time and temperature, but also offers fast, closed-loop modulation with an extinction ratio as high as 10000:1.
High boresight accuracy <1mRad
Choice of blue, green and red wavelengths
Laser output power up to 35mW
Choice of collimating lenses to produce circular or elliptical beams
User adjustable focus
