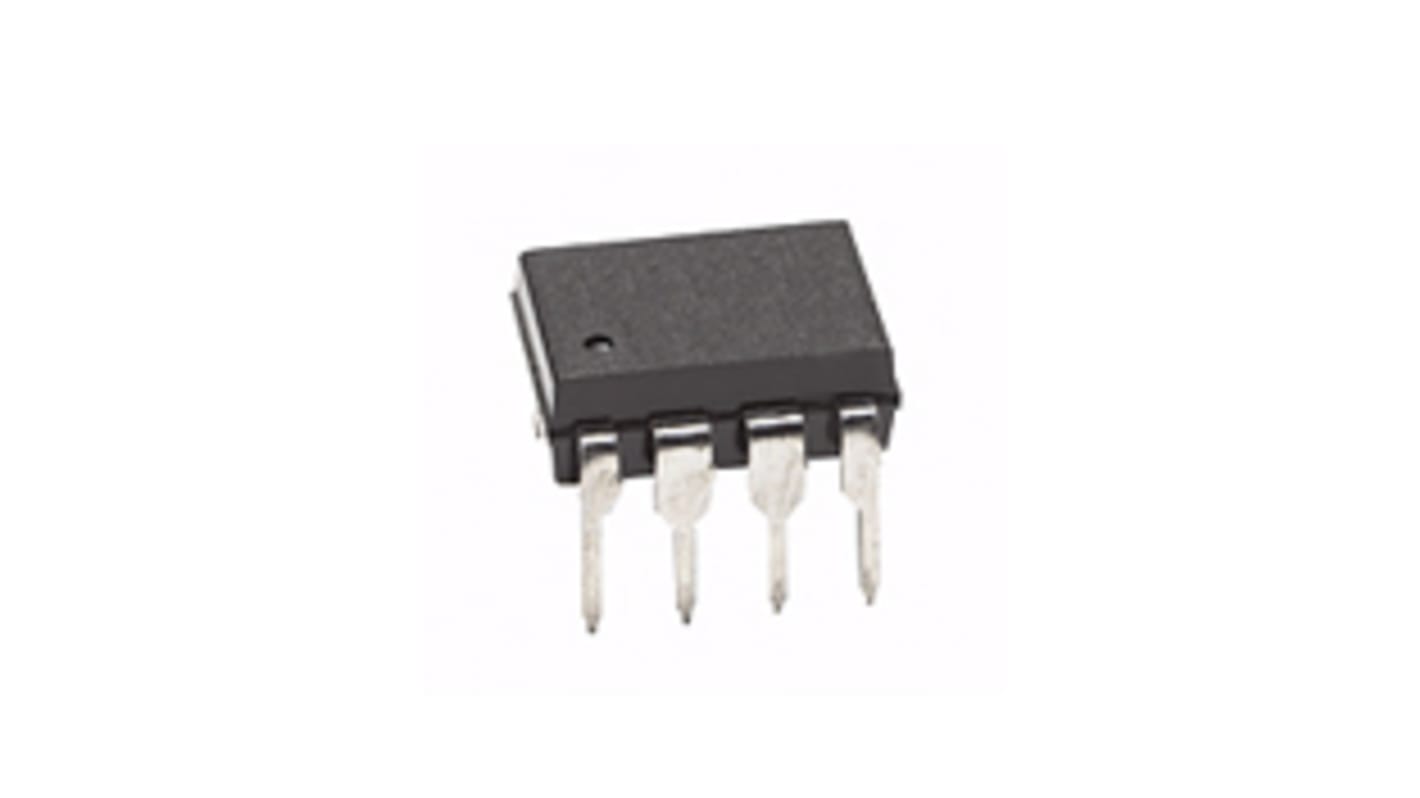

Name: HCPL-7800A-500E Broadcom 1-Channel Isolation Amplifier, 8-Pin 5.5 V DIP
Brand: Broadcom
SKU: 174-3675
Price: 8.79 EUR
Availability: OutOfStock

Unité

sélectionner ou taper la quantité

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Broadcom
	Product Type	Isolation Amplifier
	Maximum Supply Voltage	5.5V
	Minimum Supply Voltage	5.5V
	Number of Channels	1
	Mount Type	Surface
	Package Type	DIP
	Pin Count	8
	CMRR - Common Mode Rejection Ratio	76dB
	Isolation Voltage	3750Vrms
	Vos - Input Offset Voltage	0.3 mV
	Isolation Type	Optical
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	100°C
	Height	3.56mm
	Length	9.8mm
	Width	6.35 mm
	Standards/Approvals	CSA, IEC/EN/DIN EN 60747-5-5, UL 1577
	Series	HCPL-7800A
	Automotive Standard	No

	Sélectionner tout
	Marque Broadcom
	Product Type Isolation Amplifier
	Maximum Supply Voltage 5.5V
	Minimum Supply Voltage 5.5V
	Number of Channels 1
	Mount Type Surface
	Package Type DIP
	Pin Count 8
	CMRR - Common Mode Rejection Ratio 76dB
	Isolation Voltage 3750Vrms
	Vos - Input Offset Voltage 0.3 mV
	Isolation Type Optical
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 100°C
	Height 3.56mm
	Length 9.8mm
	Width 6.35 mm
	Standards/Approvals CSA, IEC/EN/DIN EN 60747-5-5, UL 1577
	Series HCPL-7800A
	Automotive Standard No

The Broadcom series HCPL-7800A isolation amplifier family was designed for current sensing and voltage sensing in electronic motor drives. In a typical implementation, motor currents flow through an external resistor and the resulting analog voltage drop is sensed by the HCPL-7800A. A differential output voltage is created on the other side of the HCPL-7800A optical isolation barrier. This differential output voltage is proportional to the motor current and can be converted to a single-ended signal by using an op-amp.

15 kV/us Common-Mode Rejection at VCM = 1000 V

Compact, Auto-Insert able Standard 8-pin DIP Package

0.00025 V/V/ degrees C Gain Drift vs. Temperature

0.3 mV Input Offset Voltage

100 kHz Bandwidth

0.004% Nonlinearity

Worldwide Safety Approval:

UL 1577 (3750 Vrms/1 min.), CSA and IEC/EN/DIN EN 60747-5-2

Advanced Sigma-Delta (S-D) A/D Converter Technology

Fully Differential Circuit Topology

Options available are:

300 = Surface Mount Option

500 = Tape and Reel Packaging Option
