RS Better World

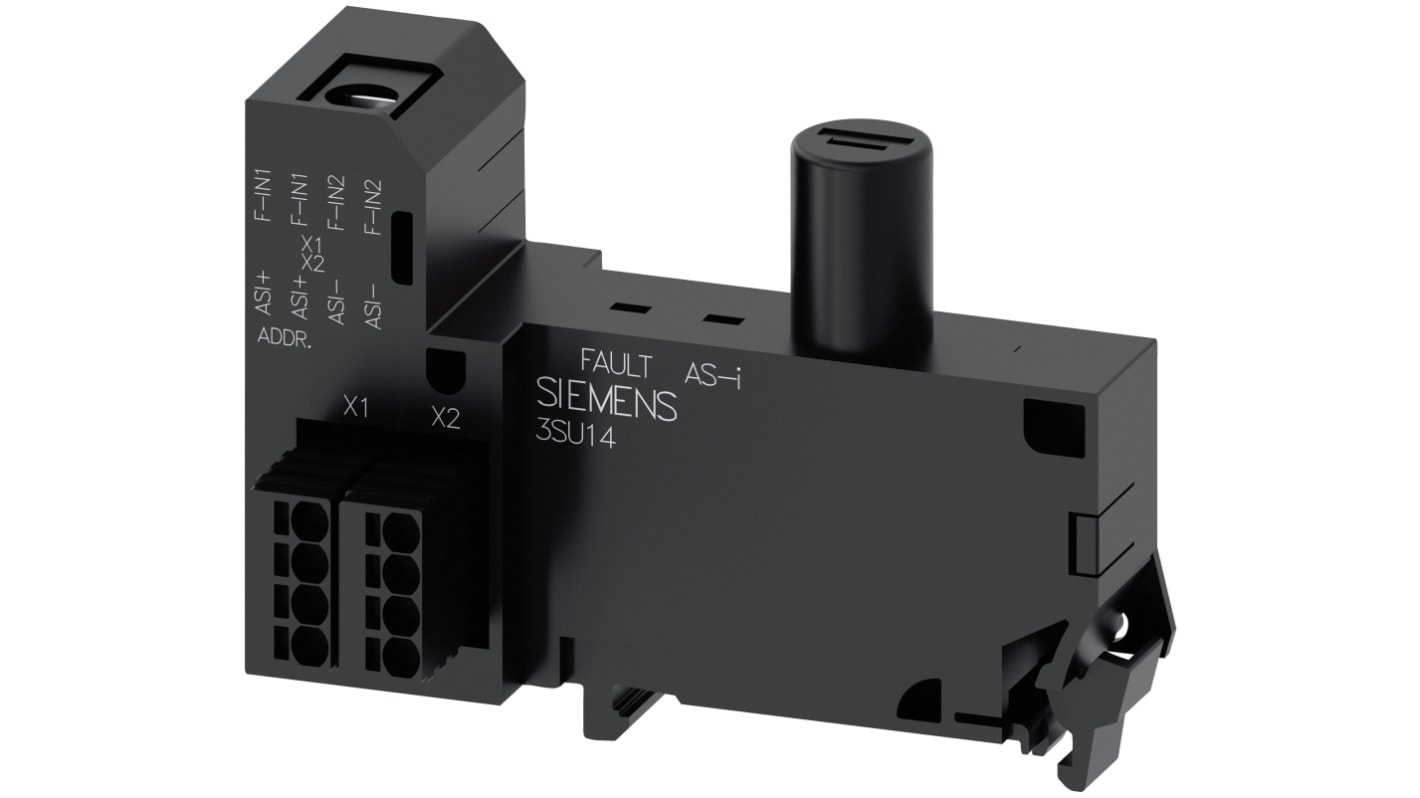

Siemens SIRIUS ACT Series 3-Contact Interface Module, Floor, 60mA
- N° de stock RS:
- 193-3896
- Référence fabricant:
- 3SU1401-2EE20-6AA0
- Fabricant:
- Siemens
Sous-total (1 unité)*
186,85 €
(TVA exclue)
226,09 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 30 juin 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 186,85 € |
*Prix donné à titre indicatif
Notre gamme de produits Better World vous facilite l'accès à des produits plus durables et plus fiables.
Cliquez ici pour en savoir plus.
- N° de stock RS:
- 193-3896
- Référence fabricant:
- 3SU1401-2EE20-6AA0
- Fabricant:
- Siemens
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Siemens | |
| Product Type | Interface Module | |
| Current | 60mA | |
| Number of Contacts | 3 | |
| Mount Type | Floor | |
| Voltage | 30V | |
| Cable CSA | 20, 26AWG | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Depth | 36.7mm | |
| Width | 25.9mm | |
| Standards/Approvals | SILCL3, CAT4, SIL3 | |
| Length | 54.6mm | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Low Carbon Manufacture | |
| Series | SIRIUS ACT | |
| Sélectionner tout | ||
|---|---|---|
Marque Siemens | ||
Product Type Interface Module | ||
Current 60mA | ||
Number of Contacts 3 | ||
Mount Type Floor | ||
Voltage 30V | ||
Cable CSA 20, 26AWG | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Depth 36.7mm | ||
Width 25.9mm | ||
Standards/Approvals SILCL3, CAT4, SIL3 | ||
Length 54.6mm | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Low Carbon Manufacture | ||
Series SIRIUS ACT | ||
- Pays d'origine :
- CZ
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
