Phoenix Contact VARIOFACE Series 16-Contact Female Interface Module, FLK Connector, Rear, 16A
- N° de stock RS:
- 135-624
- Référence fabricant:
- 2280239
- Fabricant:
- Phoenix Contact
Sous-total (1 paquet de 5 unités)*
173,50 €
(TVA exclue)
209,94 €
(TVA incluse)
Ajouter 1 paquet pour bénéficier d'une livraison gratuite
Temporairement en rupture de stock
- Expédition à partir du 12 juin 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Paquet(s) | le paquet | Prix par unité* |
|---|---|---|
| 1 + | 173,50 € | 34,70 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 135-624
- Référence fabricant:
- 2280239
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Interface Module | |
| Gender | Female | |
| Wire Size | 0.2 to 4 mm² | |
| Current | 16A | |
| Number of Contacts | 16 | |
| Connector Type | FLK | |
| Mount Type | Rear | |
| Test Proof Voltage | 0.6kV | |
| Voltage | 63 V | |
| Minimum Operating Temperature | -20°C | |
| Cable CSA | 0.2 to 4 mm² | |
| Maximum Operating Temperature | 50°C | |
| Depth | 47.24mm | |
| Standards/Approvals | No | |
| Width | 39.88 mm | |
| Length | 8mm | |
| Series | VARIOFACE | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Interface Module | ||
Gender Female | ||
Wire Size 0.2 to 4 mm² | ||
Current 16A | ||
Number of Contacts 16 | ||
Connector Type FLK | ||
Mount Type Rear | ||
Test Proof Voltage 0.6kV | ||
Voltage 63 V | ||
Minimum Operating Temperature -20°C | ||
Cable CSA 0.2 to 4 mm² | ||
Maximum Operating Temperature 50°C | ||
Depth 47.24mm | ||
Standards/Approvals No | ||
Width 39.88 mm | ||
Length 8mm | ||
Series VARIOFACE | ||
- Pays d'origine :
- DE

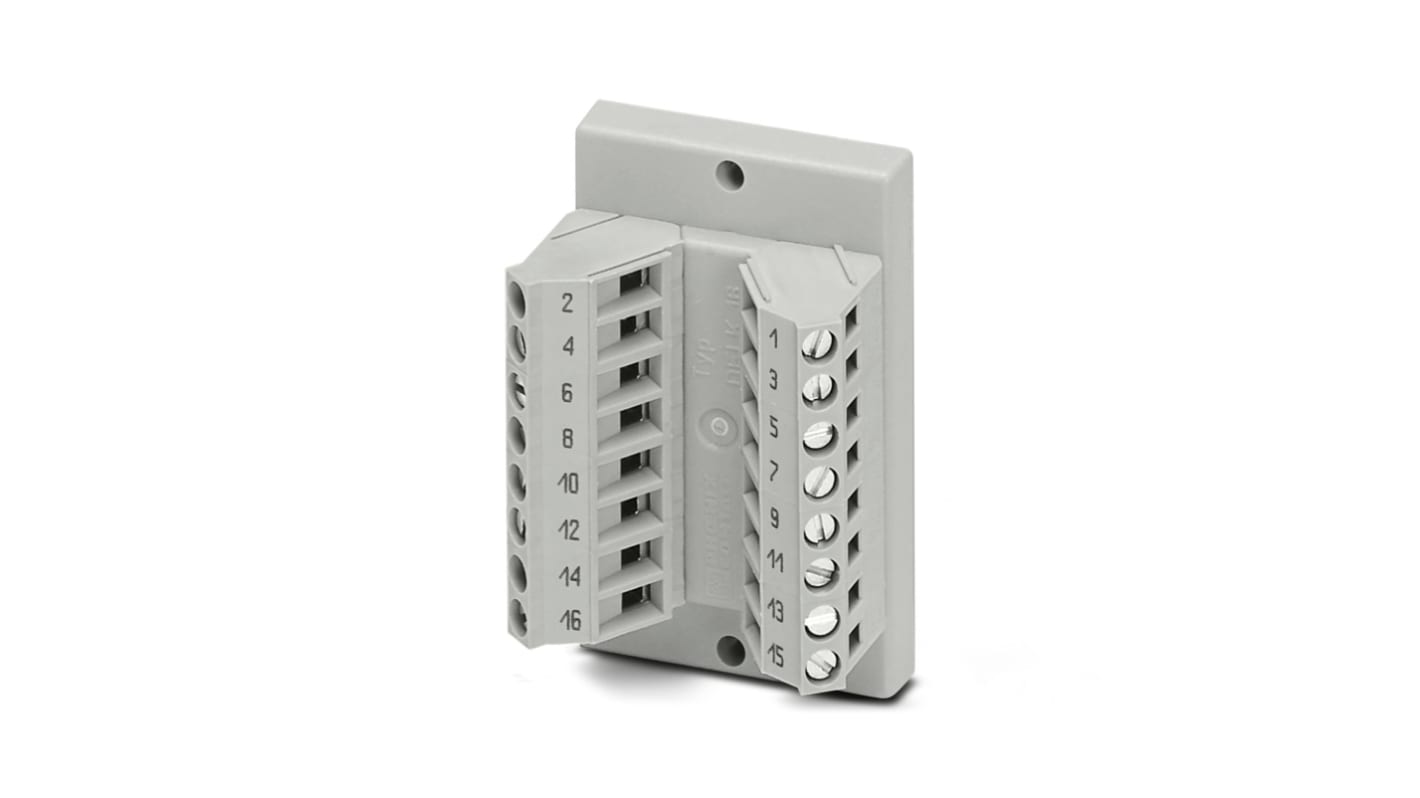

The Phoenix Contact VARIOFACE feed-through module is designed to implement a reliable 1:1 connection between screw connection terminal blocks and an IDC/FLK pin strip. This interface module ensures efficient and secure connectivity for various applications, with its high-quality construction and technical specifications.
Reliable insulation for enhanced safety during use
Provides effective protection and reliability in operations
Supports various connection methods for flexibility
Ensures long-lasting performance and durability
Complies with environmental standards for sustainability
Durable housing material for extended service life
Seamless connection between blocks and pin strips
