- N° de stock RS:
- 667-6757
- Référence fabricant:
- FLZ610 17218100000
- Fabricant:
- Pfannenberg
En cours d'approvisionnement -expédition le 06/06/2024, pour livraison dès le lendemain
Ajouté
Prix la pièce
205,10 €
(TVA exclue)
248,17 €
(TVA incluse)
Unité | Prix par unité |
1 - 4 | 205,10 € |
5 - 14 | 190,75 € |
15 - 24 | 182,54 € |
25 - 59 | 174,34 € |
60 + | 162,04 € |
- N° de stock RS:
- 667-6757
- Référence fabricant:
- FLZ610 17218100000
- Fabricant:
- Pfannenberg
Législations et de normes
- Pays d'origine :
- DE
Détails du produit

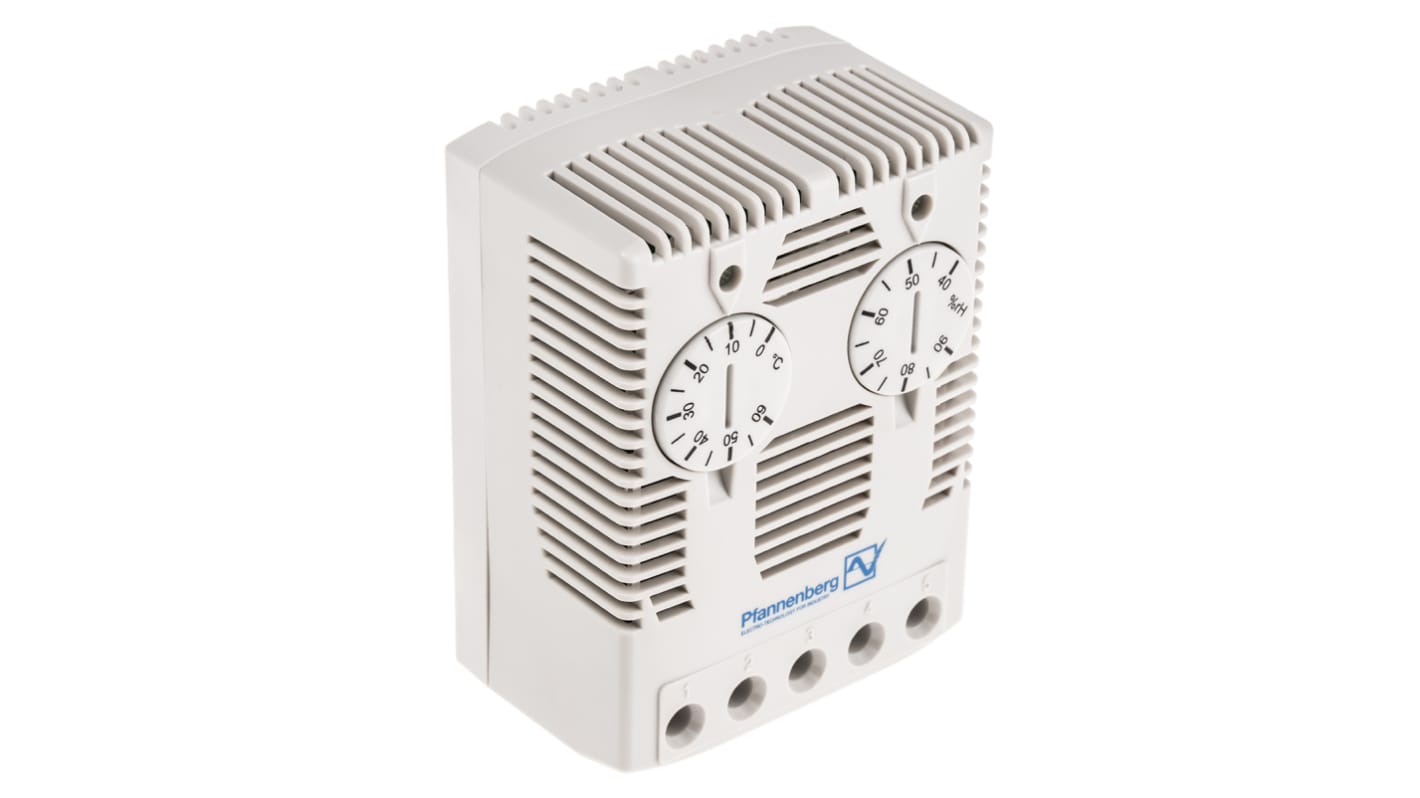

FLZ 610 Hygrostat-thermostat Combination Device
FLZ series hygrostats switch on control cabinet heaters or filterfans when a preset relative humidity is exceeded. The relative humidity is kept above the dew point and the condensation of water on electrical components, and corrosion of unprotected sheet metal, is prevented. The electronic combination device unites in one housing the thermostat and hygrostat, which monitor relative humidity and temperature independently of each other.
Features and Benefits:
• Setting range 40 - 90% RH / 0°C → +60°C
• Switching temperature difference approx 2K+1K/approx 4% RH ± 1%
• Contact resistance <10mΩ
• Operating temperature range -20 → +60°C
• Protection rating IP20
• Screw terminal connection for cable cross-section 0.5 → 2.5mm sq
• Snap fastening for 35mm profile bars according to EN 60715
• Colour RAL 7035
• Switching temperature difference approx 2K+1K/approx 4% RH ± 1%
• Contact resistance <10mΩ
• Operating temperature range -20 → +60°C
• Protection rating IP20
• Screw terminal connection for cable cross-section 0.5 → 2.5mm sq
• Snap fastening for 35mm profile bars according to EN 60715
• Colour RAL 7035
Approvals
UL, cUL
Approvals
UL, cUL
Spécifications
Attribut | Valeur |
---|---|
Activation Humidity | 40 → 90%RH |
Supply Voltage | 230 V ac/dc |
Maximum Humidity Setting | 90%RH |
Minimum Humidity Setting | 40%RH |
