Lapp ÖLFLEX® H05V-K Series Grey 0.5 mm² Hook Up Wire, 16/32, 100m, PVC Insulation, 4510061

Voir l’ensemble des Hook Up Wire

Sous-total (1 bobine de 100 mètres)*

41,02 €

(TVA exclue)

49,63 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 7 unité(s) prête(s) à être expédiée(s)
  • Plus 24 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Bobine(s)
la bobine
le mètre*
1 +41,02 €0,41 €

*Prix donné à titre indicatif

N° de stock RS:
724-4320
Référence fabricant:
4510061
Fabricant:
Lapp
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Lapp

Cross Sectional Area

0.5 mm²

Sheath Colour

Grey

Cable Shape

Single Core

Core Strands

16/32

Length

100m

Insulation Material

PVC

European Harmonised Code

H05V-K

Voltage Rating

500 V

Outer Diameter

2.1mm

CPR Certification

Eca

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

+80°C

Conductor Material

Bare Copper

Standards Met

EAC

Fire Behaviour

Flame Retardant

Series

ÖLFLEX® H05V-K

Number of Strands

16

Size of Strands

32 AWG

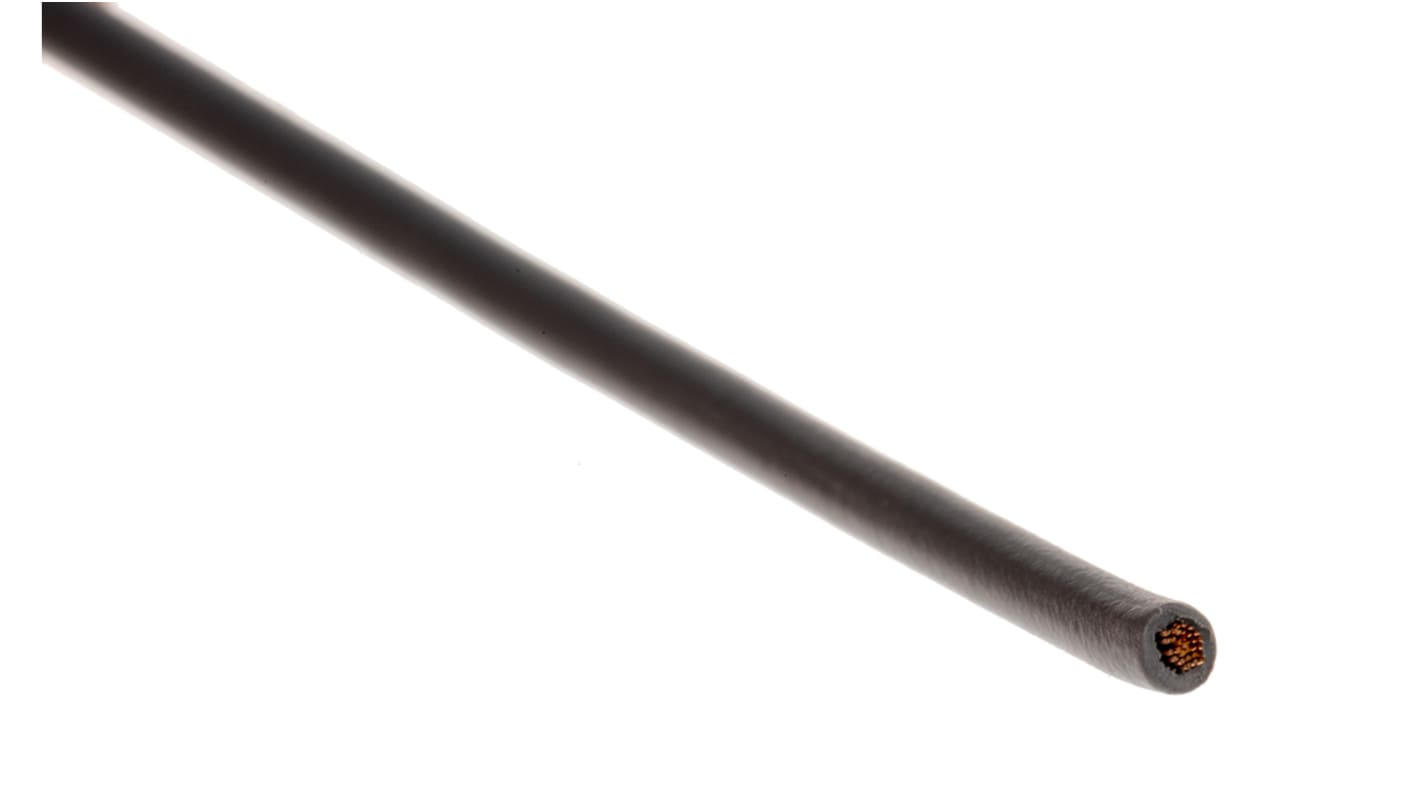

Lapp Single Core Cable - H05V-K


From Lapp, this single-core H05V-K hook-up wire is ideal for fixed installations in power and control applications. The cable features a fine-wired copper conductor with PVC based core insulation, and is flame retardant.

The H05V-K hook-up wire has European HAR cable type certification.

Features and Benefits

• Bare copper wire conductor according to VDE 0295 class 5; HD 383 S2
• Nominal working voltage 300/500V
• Minimum bending radius 6 x cable diameter
• Flame-retardant according to IEC 60332-1-2
• Operating Temperature when Fixed: -40°C to +80°C

Applications

These versatile hook-up wires are typically used in the internal wiring of devices, or for protected installations in and on lighting equipment. This hook-up wire is often used in the following applications:

• Power Management
• Industrial Machinery
• Medical Equipment

Frequently Asked Questions

Can this wire be used outdoors?

Wires are designed to be used in indoor systems, however, the wide temperature operation resistance may allow for a short period of time outdoor operation.

Which wire types are a better choice, stranded or solid?

Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.

Note

These are supplied in boxes not reels.

Standards

EN 50525-2-31, IEC 60332-1-2

LAPP Hook Up Wire, Single Core, 32AWG - ÖLFLEX Series - 4510061


For internal wiring of electronic devices such as headphones and portable chargers, opt for this hook up wire from LAPP. It comes on a 100m reel, giving you the flexibility to make a long run or cut it to size as needed. The cable's 32AWG size makes it compatible with small applications. Inside, there's a single core made of 16 copper strands for high conductivity. Thanks to a wide operating temperature range between -30°C to +80°C, this is a safe option for use in harsh industrial environments.

• Grey colour allows for quick identification in your system
• PVC sheath offers resistance against corrosion, chemicals and water for durability

Applications


• Power and control units
• Switchboards
• Domestic appliances

What's the maximum voltage this wire can support?


This hook up wire has a voltage rating of 500V to support heavy-duty applications.
