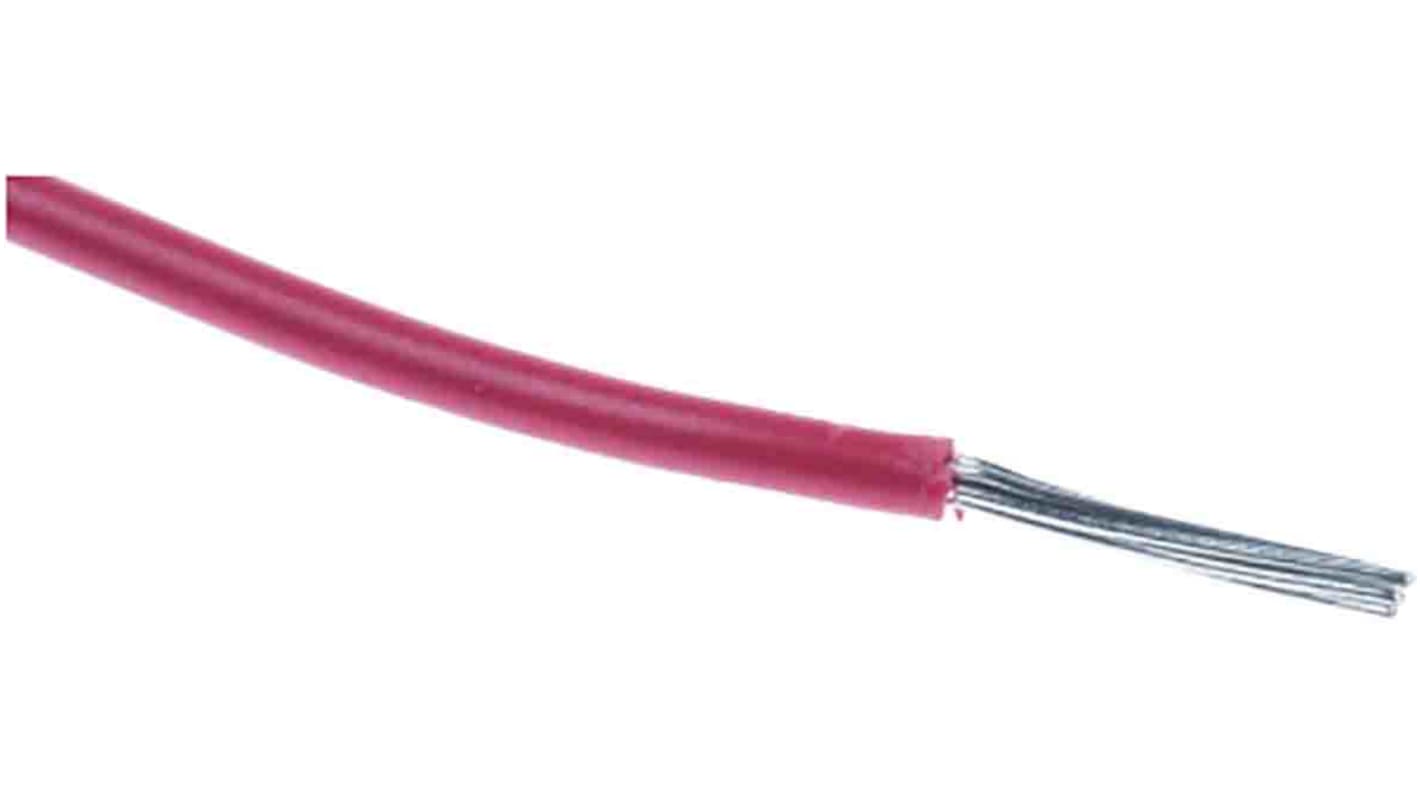

RS PRO 1569 Series Red 1.32 mm² Hook Up Wire, 16 AWG, 26, 305 m, Polyvinyl Chloride

Voir l’ensemble des Hook Up Wire

Sous-total (1 bobine de 305 mètres)*

198,56 €

(TVA exclue)

240,26 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 8 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Bobine(s)
la bobine
le mètre*
1 +198,56 €0,651 €

*Prix donné à titre indicatif

N° de stock RS:
208-1104
Fabricant:
RS PRO
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

RS PRO

Cross Sectional Area

1.32 mm²

Product Type

Hook Up Wire

Jacket Colour

Red

American Wire Gauge

16AWG

Core Strands

26

Cable Length

305m

Voltage

300 V

Outside Diameter

2.34 mm

Maximum Operating Temperature

105°C

Conductor Material

Tinned Copper

Cable Type

Single Core

Standards/Approvals

UL3239

Minimum Operating Temperature

-40°C

Jacket Material

Polyvinyl Chloride

Fire Behaviour

Flammability Test: VW-1

Series

1569

Pays d'origine :
CN

RS PRO Single Core PVC Hook-up Wire


RS PRO brings you a fantastic range of hook-up wire made from PVC making it robust and durable for working environments. This PVC hook-up wire combines great insulating properties with toughness to offer a fantastic wire option.

This hook-up wire is available in voltage ratings 300V and 600V with an operating temperature range of -40 to 105°C. With a selection of colour options to choose from you can find the right wire for the specific application needed.

Features and Benefits


  • Flexible wire with PVC insulation

  • Single-core wire

  • Excellent resistance to hazardous oils and chemicals

  • Stranded or solid tinned copper conductors

  • Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)

  • Rated Voltage options of 300V and 600V

  • Temperature Range: -40 to 105 °C

  • Selection of colours available

    • Applications


    Hook up wire is a fantastic piece of equipment due to its versatility and ability to work well with connectors in electrical assemblies. It is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines and appliances.
