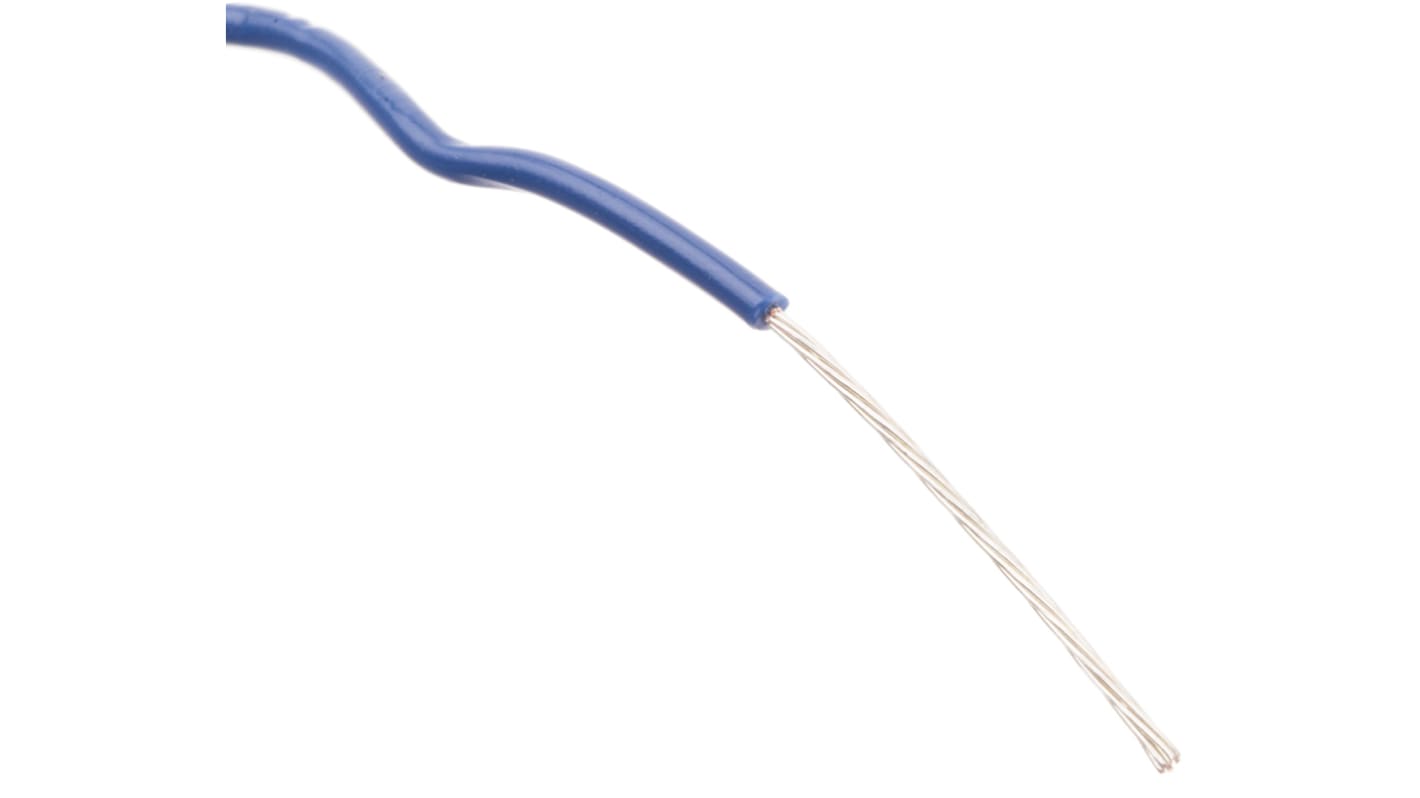

Alpha Wire Hook-up Wire PVC Series Blue 0.35 mm² Harsh Environment Wire, 22 AWG, 7/0.25 mm, 30m, PVC Insulation
- N° de stock RS:
- 168-1593
- Référence fabricant:
- 3051 BL005
- Fabricant:
- Alpha Wire
22 En stock, livraison sous 1 jour(s) (stock Europe)
46 En stock, livraison sous 3 à 5 jours (stock Europe)
Ajouté
Prix 1 bobine de 30 mètre(s)
14,41 €
(TVA exclue)
17,44 €
(TVA incluse)
Bobine(s) | la bobine | le mètre* |
1 - 4 | 14,41 € | 0,48 € |
5 - 9 | 13,76 € | 0,459 € |
10 + | 13,11 € | 0,437 € |
*prix conseillé |
- N° de stock RS:
- 168-1593
- Référence fabricant:
- 3051 BL005
- Fabricant:
- Alpha Wire
Documentation technique
Législations et de normes
Détails du produit
Alpha Wire 300 V PVC Hook Up Wire
When every application is critical and wire failure is not an option, choose Alpha Wire PVC hook up wire as your solution. PVC hook up wire benefits from good abrasion resistance and excellent fire resistance. This 300 V PVC hook up wire can be used in temperatures ranging from -40°C to +105°C depending on the application.
Features and Benefits
Stranded or solid tinned copper conductors protecting the wires from corrosion and increasing efficiency in hot and humid environments
Colour-coded insulation for easy circuit identification
Easy to handle, strip and terminate
PVC insulation
Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
Colour-coded insulation for easy circuit identification
Easy to handle, strip and terminate
PVC insulation
Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
Product Applications
Hook up wire can be used for a broad range of applications, whether that be in a control cabinet, high-temperature oven, or in a specialised machine tool.
Alpha Wires FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.
Standards
UL AWM 1007, 1581, 1569 VW-1, CSA AWM I A/B FT1, CSA TR-64 FT1
Belden Alpha Wire Harsh Environment Wire, 300V Voltage Rating, 1.57mm Outer Diameter - 3051 BL005
Keen to make long-lasting circuit connections? Count on this harsh environment wire from Belden Alpha Wire. With its PVC jacket, it shrugs off flames, abrasion and wear to perform in demanding conditions. Don't worry about moisture damage – the tinned copper conductor resists corrosion to deliver reliable signal transfer. A bright blue sheath catches the eye in busy systems, making identification simple. As the wire's outer diameter measures just 1.57mm, it's a sure fit for low-profile installations.
Features & Benefits
• Takes pull tension up to 5lbs, so it's a robust option
• Wide operating temperature range between -40°C and +105°C to work in challenging settings
• Supplied on a 30m reel for handy measuring and cutting
• Wide operating temperature range between -40°C and +105°C to work in challenging settings
• Supplied on a 30m reel for handy measuring and cutting
Applications
• Aerospace engineering
• Control devices
• Beverage production
• Control devices
• Beverage production
Why should I use a stranded wire?
A stranded wire like this one is reliably flexible, making it easy to connect components even in fiddly areas.
Spécifications
Attribut | Valeur |
---|---|
Cross Sectional Area | 0.35 mm² |
Sheath Colour | Blue |
American Wire Gauge | 22 AWG |
Cable Shape | Single Core |
Core Strands | 7/0.25 mm |
Length | 30m |
Insulation Material | PVC |
Outer Diameter | 1.57mm |
Voltage Rating | 300 V |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +105°C |
Conductor Material | Copper |
Standards Met | UL Listed |
Wire Style | UL1007 |
Fire Behaviour | Flame Retardant |
Series | Hook-up Wire PVC |
Insulation Wall Thickness | 0.41mm |
Size of Strands | 0.25 mm |
Outer Sheath Material | PVC |
Number of Strands | 7 |
