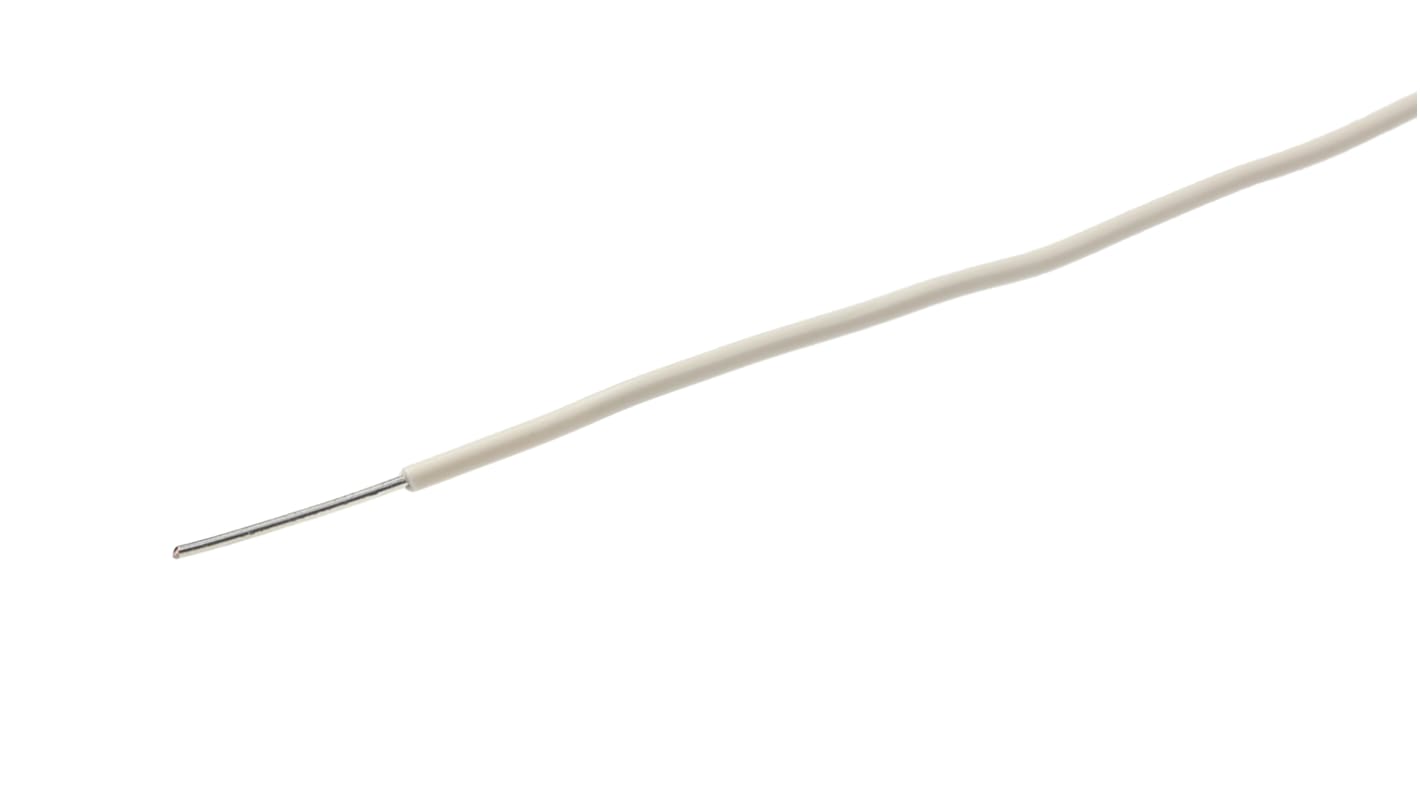

Alpha Wire Hook-up Wire PVC Series White 0.33 mm² Hook Up Wire, 22 AWG, 1/0.64 mm, 30m, PVC Insulation, 3051/1 WH005
- N° de stock RS:
- 121-4281
- Numéro d'article Distrelec:
- 301-08-880
- Référence fabricant:
- 3051/1 WH005
- Fabricant:
- Alpha Wire
Sous-total (1 bobine de 30 mètres)*
22,20 €
(TVA exclue)
26,86 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 17 unité(s) prête(s) à être expédiée(s)
- Plus 1 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 13 unité(s) expédiée(s) à partir du 02 février 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Bobine(s) | la bobine | le mètre* |
|---|---|---|
| 1 + | 22,20 € | 0,74 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 121-4281
- Numéro d'article Distrelec:
- 301-08-880
- Référence fabricant:
- 3051/1 WH005
- Fabricant:
- Alpha Wire
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Alpha Wire | |
| Cross Sectional Area | 0.33 mm² | |
| Sheath Colour | White | |
| American Wire Gauge | 22 AWG | |
| Cable Shape | Wire/Single Core | |
| Core Strands | 1/0.64 mm | |
| Length | 30m | |
| Insulation Material | PVC | |
| Outer Diameter | 1.45mm | |
| Voltage Rating | 300 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Conductor Material | Tinned Copper | |
| Cable Type | Single Core | |
| Wire Style | UL1007 | |
| Standards Met | CA Prop 65, CSA Certified, CSA TR-64 FT1, RoHS Compliant, UL AWM 1007/1569 VW-1, UL Recognised | |
| Fire Behaviour | Flame Retardant | |
| Tri-rated | No | |
| Series | Hook-up Wire PVC | |
| Insulation Wall Thickness | 0.4mm | |
| Hook Up Wire Type | High Temperature | |
| Number of Strands | 1 | |
| Resistant To | Chemicals, Oils, Solvents | |
| Size of Strands | 0.64 mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Alpha Wire | ||
Cross Sectional Area 0.33 mm² | ||
Sheath Colour White | ||
American Wire Gauge 22 AWG | ||
Cable Shape Wire/Single Core | ||
Core Strands 1/0.64 mm | ||
Length 30m | ||
Insulation Material PVC | ||
Outer Diameter 1.45mm | ||
Voltage Rating 300 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Tinned Copper | ||
Cable Type Single Core | ||
Wire Style UL1007 | ||
Standards Met CA Prop 65, CSA Certified, CSA TR-64 FT1, RoHS Compliant, UL AWM 1007/1569 VW-1, UL Recognised | ||
Fire Behaviour Flame Retardant | ||
Tri-rated No | ||
Series Hook-up Wire PVC | ||
Insulation Wall Thickness 0.4mm | ||
Hook Up Wire Type High Temperature | ||
Number of Strands 1 | ||
Resistant To Chemicals, Oils, Solvents | ||
Size of Strands 0.64 mm | ||
Belden Hook-up Wire PVC Series Hook Up Wire, 0.33mm² Cross Sectional Area, White Sheath Colour - 3051/1 WH005
This hook-up wire is designed for a wide range of electrical applications. With a cross-sectional area of 0.33 mm² and a length of 30 m, it provides reliable connectivity in various settings. The wire features a robust PVC insulation that withstands extreme temperatures ranging from -40°C to +105°C, making it suitable for high-temperature environments.
Features & Benefits
• Flame retardant properties enhance safety in applications
• Chemically resistant to oil and solvents for durability
• Rated for 300 V to meet various voltage requirements
• Composed of tinned copper for improved conductivity
• Lightweight design ensures easy handling and installation
• Compliance with internationally recognised safety standards
• Chemically resistant to oil and solvents for durability
• Rated for 300 V to meet various voltage requirements
• Composed of tinned copper for improved conductivity
• Lightweight design ensures easy handling and installation
• Compliance with internationally recognised safety standards
Applications
• Ideal for use in electronic devices requiring heat resistance
• Suitable for connecting components in automation systems
• Utilised in electrical panels and machinery wiring
• Effective for in the mechanical industry
• Employed in situations where chemical exposure is a concern
• Suitable for connecting components in automation systems
• Utilised in electrical panels and machinery wiring
• Effective for in the mechanical industry
• Employed in situations where chemical exposure is a concern
What is the significance of the temperature range for practical usage?
The extensive temperature range of -40°C to +105°C indicates that this wire functions effectively in both cold and hot environments, making it suitable for diverse applications, including outdoor and industrial settings.
How does the chemical resistance impact daily operations?
This wire's resistance to oils, solvents, and chemicals ensures longevity and reliability in environments where exposure to such substances is frequent, thereby reducing maintenance and replacement costs over time.
What advantages does tinned copper offer compared to standard copper?
Tinned copper improves corrosion resistance and enhances solderability, making it ideal for applications where longevity and ease of connections are essential, particularly in humid or harsh environments.
How does the insulation material affect the wire's performance?
PVC insulation is known for its durability and resistance to heat, oil, and chemicals, which helps maintain the wire's integrity and performance, ensuring safe operation under various conditions.
What installation considerations should be taken into account with this wire?
Due to its single-core structure and recommended bend radius of 10 times the cable diameter, ensuring adequate space during installation can prevent damage and maintain performance over time.
