Alpha Wire Premium Series Red Hook Up Wire, 20 AWG 10 x, 0.25 mm core strands, 30 m, 3053 RD005
- N° de stock RS:
- 331-878
- Numéro d'article Distrelec:
- 300-83-066
- Référence fabricant:
- 3053 RD005
- Fabricant:
- Alpha Wire
Sous-total (1 bobine de 30 unités)*
17,44 €
(TVA exclue)
21,10 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 105 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 112 unité(s) expédiée(s) à partir du 21 août 2026
- Plus 33 unité(s) expédiée(s) à partir du 18 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Bobine(s) | la bobine | Prix par unité* |
|---|---|---|
| 1 + | 17,44 € | 0,581 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 331-878
- Numéro d'article Distrelec:
- 300-83-066
- Référence fabricant:
- 3053 RD005
- Fabricant:
- Alpha Wire
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Alpha Wire | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Red | |
| American Wire Gauge | 20AWG | |
| Core Strands | 10 x 0.25mm | |
| Cable Length | 30m | |
| Outside Diameter | 1.75mm | |
| Voltage | 300V | |
| Maximum Operating Temperature | 105°C | |
| Conductor Material | Tinned Copper | |
| Sub Type | UL1007 | |
| Standards/Approvals | UL Listed | |
| Minimum Operating Temperature | -40°C | |
| Cable Type | Single Core | |
| Fire Behaviour | Flame Retardant | |
| Series | Premium | |
| Size of Strands | 0.25mm | |
| Number of Strands | 10 | |
| Sélectionner tout | ||
|---|---|---|
Marque Alpha Wire | ||
Product Type Hook Up Wire | ||
Jacket Colour Red | ||
American Wire Gauge 20AWG | ||
Core Strands 10 x 0.25mm | ||
Cable Length 30m | ||
Outside Diameter 1.75mm | ||
Voltage 300V | ||
Maximum Operating Temperature 105°C | ||
Conductor Material Tinned Copper | ||
Sub Type UL1007 | ||
Standards/Approvals UL Listed | ||
Minimum Operating Temperature -40°C | ||
Cable Type Single Core | ||
Fire Behaviour Flame Retardant | ||
Series Premium | ||
Size of Strands 0.25mm | ||
Number of Strands 10 | ||
- Pays d'origine :
- US

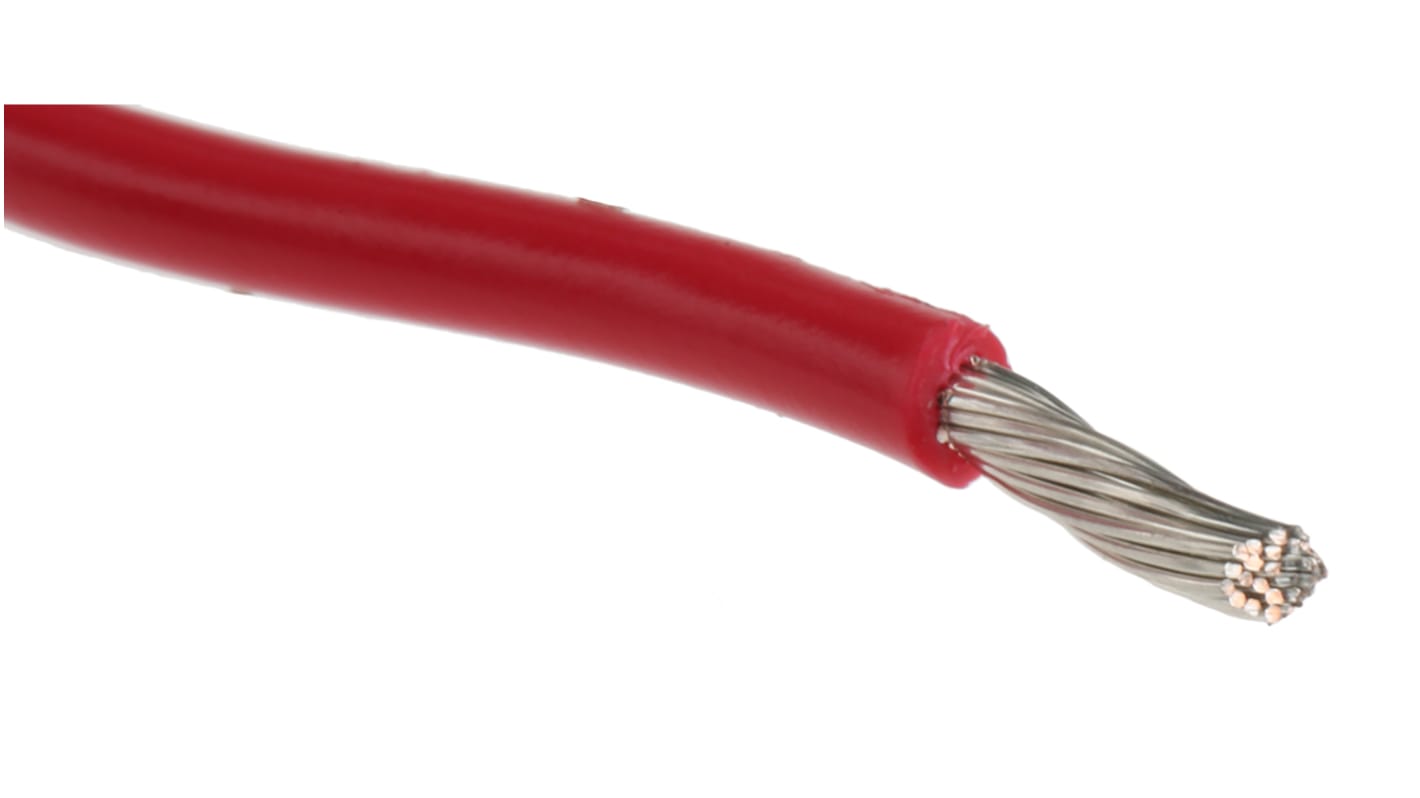

Belden Alpha Wire Red Hook-Up Wire, 20AWG, PVC - Premium Series - 3053
For stable electrical connections in your enclosed machines, use this hook-up wire from Belden's Alpha Wire range. The conductor is made from robust tinned copper, which is highly conductive and resistant to corrosion, so delivers effective long-term performance. Due to the length you'll have sufficient stock for a long-range connection between your devices. You can also cut it to size for multiple applications.
Features & Benefits
• Broad operating temperature range between -40°C and +105°C for use in demanding environments
• Bend radius 10 times the cable diameter means it's highly flexible
• Bright red colour makes it easy to see in busy setups
• PVC body is impact-resistant for durability
Applications
• Control panels
• Agricultural equipment
• Food industry
Can I use this wire in areas at risk of fire?
Yes, you can. This wire has flame-retardant properties so you can safely use it in places where fire is likely.
