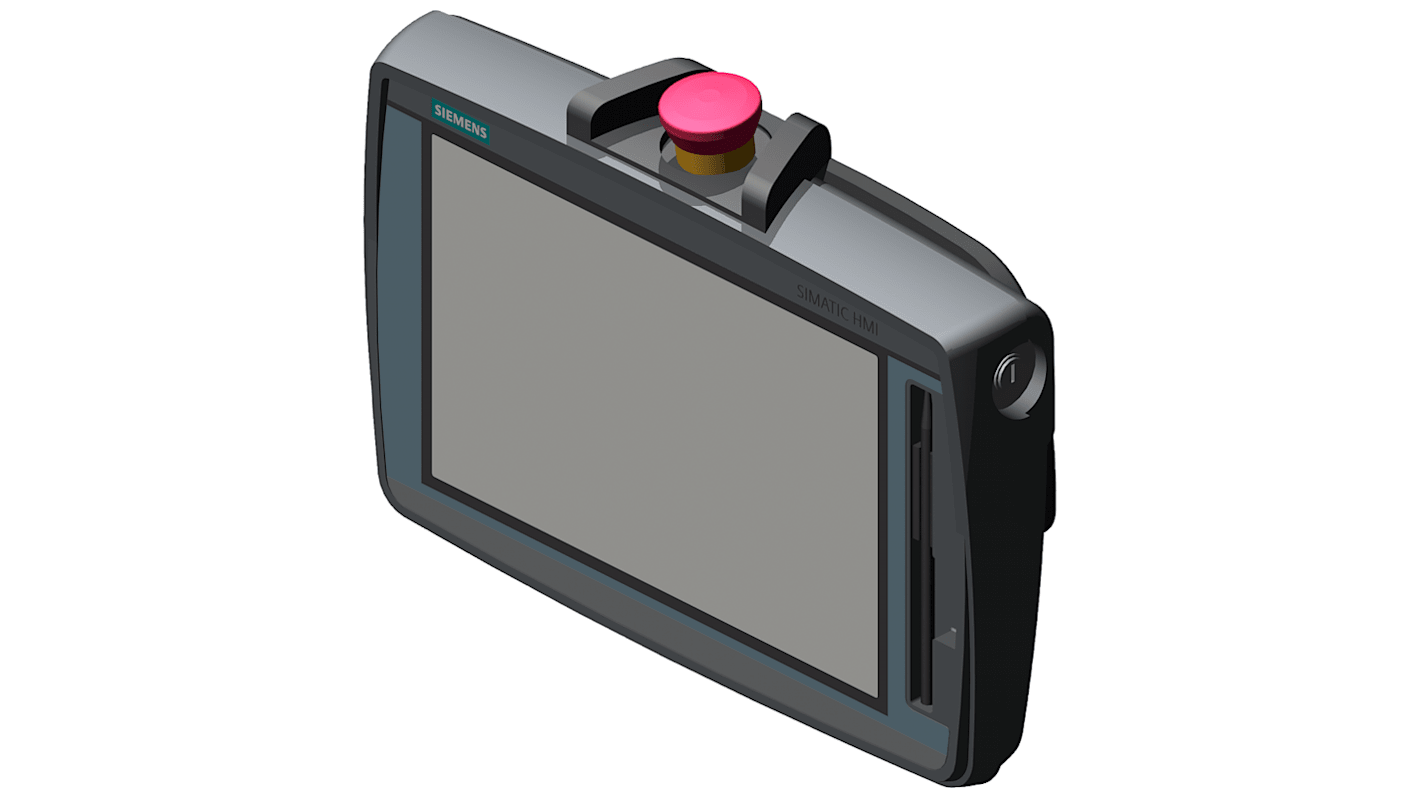

Siemens SIMATIC Series TP1000F MOBILE HMI Panel - 10.1 in, TFT Display, 1280 x 800

Voir l’ensemble des HMI Displays

Sous-total (1 unité)*

4 131,06 €

(TVA exclue)

4 998,58 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 1 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +4 131,06 €

*Prix donné à titre indicatif

N° de stock RS:
256-7072
Référence fabricant:
6AV21456KB200AS0
Fabricant:
Siemens
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Siemens

Manufacturer Series

SIMATIC

Product Range

TP1000F MOBILE

Display Type

TFT

Manufacturer Part No.

6AV21456KB200AS0

Display Resolution

1280 x 800

Processor Type

ARM

Onboard Memory

12 MB

Backlighting

Yes

Display Size

10.1 in

IP Rating

IP65

Supply Voltage

24 V

Interface

PROFINET

Maximum Operating Temperature

+45°C

Length

223.5mm

Minimum Operating Temperature

0°C

Width

307.5mm

Pays d'origine :
DE

Siemens SIMATIC Series HMI Panel, 10.1in Display size, 1280 x 800 Resolution - 6AV21456KB200AS0


This HMI panel is designed for seamless interaction in industrial environments. The SIMATIC TP1000F Mobile features a 10.1-inch TFT display that provides a crisp resolution of 1280 x 800 pixels. With dimensions of 307.5mm in width and 223.5mm in height, it is compact yet powerful, ideal for various automation tasks.

Features & Benefits


• 24V supply voltage enhances compatibility with standard equipment
• ARM processor ensures responsive performance and reliability
• IP65 rating offers protection against dust and water ingress
• Touchscreen interface simplifies navigation and operation tasks
• Supports multiple protocols including PROFINET for efficient connectivity
• User-friendly design with emergency stop button for safety

Applications


• Used for monitoring and controlling industrial processes
• Ideal for automation in machinery and production lines
• Suitable for operator interfaces in manufacturing settings
• Utilised in environments requiring high integration with multiple systems

What is the expected lifespan of the backlighting at optimal temperatures?


The backlighting has a mean time between failures (MTBF) of 50,000 hours when operated at 25°C, ensuring long-term usability.

How does the processor contribute to the operation of the panel?


The ARM processor delivers efficient processing power, enabling quick response times for user inputs and smooth operation of applications running on the panel.

What environmental conditions can this panel withstand?


It operates effectively in temperatures ranging from 0°C to +45°C, suitable for diverse working environments.
