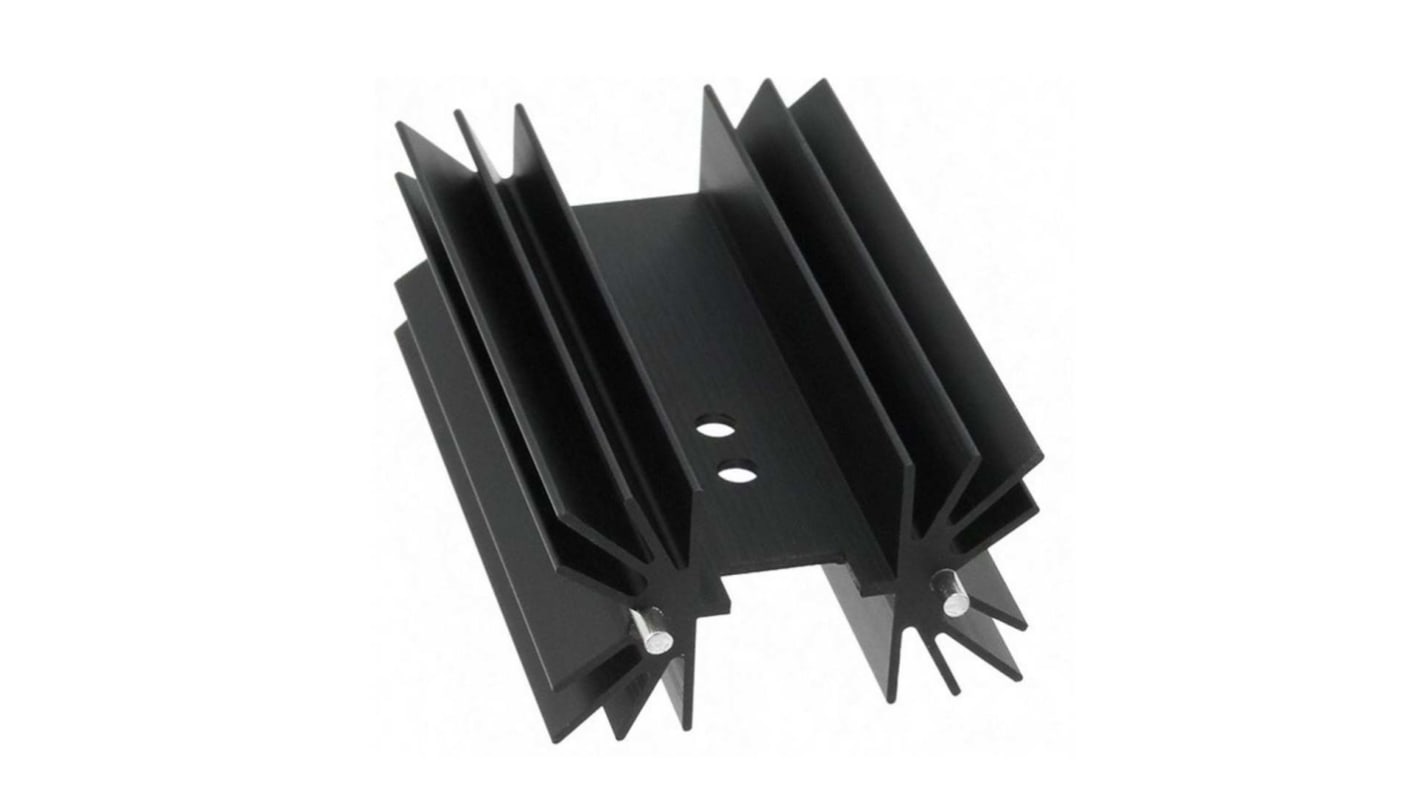

Ohmite Heatsink, TEH100, TEH70, TBH25, TCH35, 3°C/W 63.5 mm 41.6 mm 25 mm
- N° de stock RS:
- 893-4942
- Référence fabricant:
- FA-T220-64E
- Fabricant:
- Ohmite
Offre groupée disponible
Sous-total (1 paquet de 10 unités)*
29,87 €
(TVA exclue)
36,14 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité | Prix par unité | le paquet* |
|---|---|---|
| 10 - 90 | 2,987 € | 29,87 € |
| 100 - 240 | 2,749 € | 27,49 € |
| 250 - 490 | 2,629 € | 26,29 € |
| 500 - 990 | 2,54 € | 25,40 € |
| 1000 + | 2,33 € | 23,30 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 893-4942
- Référence fabricant:
- FA-T220-64E
- Fabricant:
- Ohmite
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Ohmite | |
| For Use With | TEH100, TEH70, TBH25, TCH35 | |
| Product Type | Heatsink | |
| Length | 41.6mm | |
| Height | 63.5mm | |
| Fastening | Vertical | |
| Thermal Resistance | 3°C/W | |
| Colour | Black | |
| Series | F | |
| Finish | Black Anodised | |
| Compatible Package Type | TO-218, TO-220, TO-247 | |
| Standards/Approvals | RoHS Compliant | |
| Material | Aluminium | |
| Application | To-220 and To-247 Devices | |
| Surface Area | 22814mm² | |
| Sélectionner tout | ||
|---|---|---|
Marque Ohmite | ||
For Use With TEH100, TEH70, TBH25, TCH35 | ||
Product Type Heatsink | ||
Length 41.6mm | ||
Height 63.5mm | ||
Fastening Vertical | ||
Thermal Resistance 3°C/W | ||
Colour Black | ||
Series F | ||
Finish Black Anodised | ||
Compatible Package Type TO-218, TO-220, TO-247 | ||
Standards/Approvals RoHS Compliant | ||
Material Aluminium | ||
Application To-220 and To-247 Devices | ||
Surface Area 22814mm² | ||
- Pays d'origine :
- CN
Ohmite F/R Series Vertical Mount Heatsinks
Ohmite F/R Series heatsink provides a large surface area with spring clipping mechanism to attach to a TO-220, TO-247, or TO-264 package. The self-aligning features of the clip assure secure attachment and enhanced thermal performance. Because no screws are required for device mounting, additional fins can be added to the rear side of the heatsink for increased total surface area in a more compact space.
