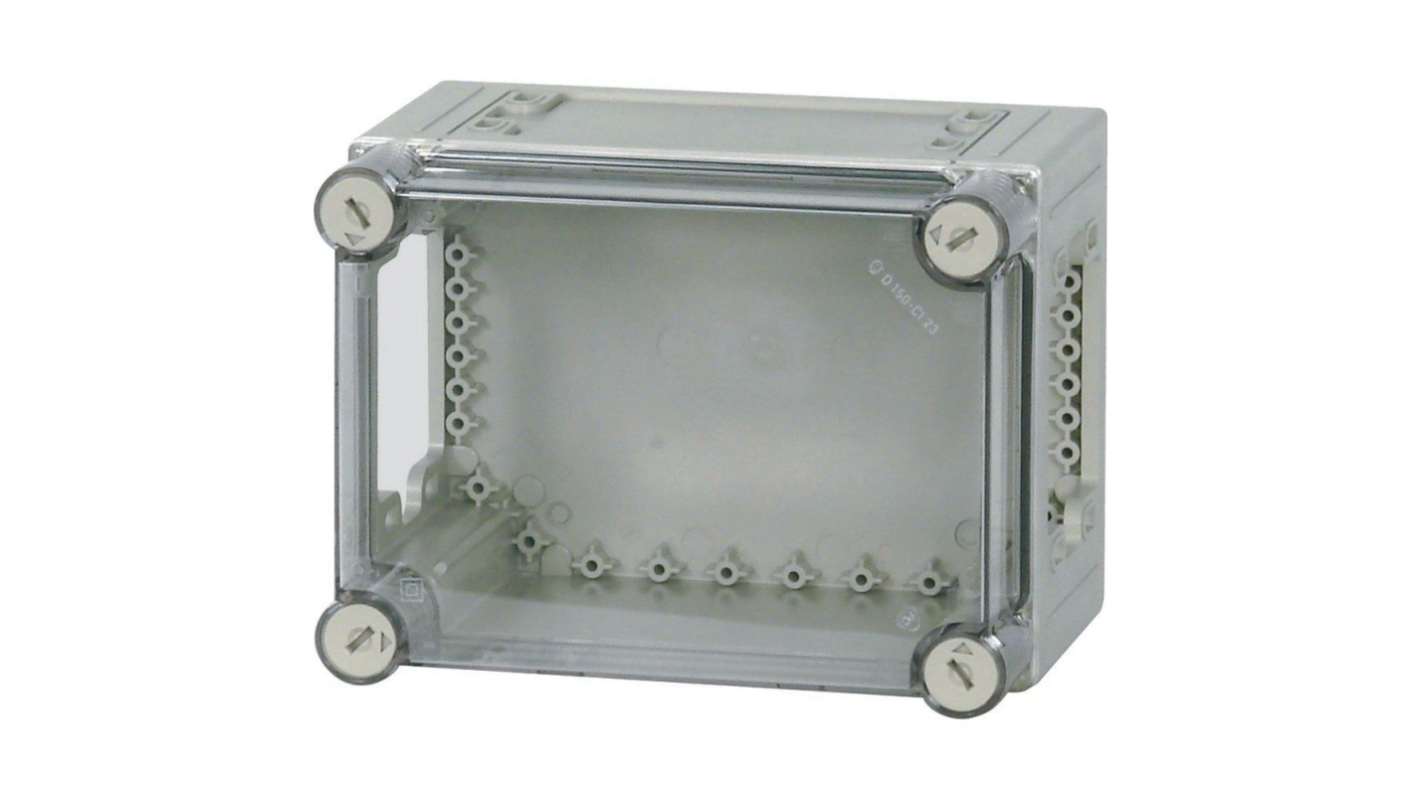

Eaton xEnergy Safety Series Grey Transparent Lid Plastic General Purpose Enclosure, IP65, IK10, 250 mm x 175 mm x 187.5
- N° de stock RS:
- 248-222
- Référence fabricant:
- 012781 CI23-150
- Fabricant:
- Eaton
Sous-total (1 unité)*
126,00 €
(TVA exclue)
152,46 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 20 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 126,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 248-222
- Référence fabricant:
- 012781 CI23-150
- Fabricant:
- Eaton
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Eaton | |
| Body Material | Plastic | |
| Product Type | General Purpose Enclosure | |
| External Height | 250mm | |
| External Length | 175mm | |
| External Width | 187.5mm | |
| IP Rating | IP65 | |
| Lid Colour | Transparent | |
| Colour | Grey | |
| Hazardous Area Certification | No | |
| Series | xEnergy Safety | |
| Mounting plate | Yes | |
| Standards/Approvals | EN 62208, EN 61439-2 | |
| Weight | 1.28kg | |
| Transparent Door | Yes | |
| IK Rating | IK10 | |
| Sélectionner tout | ||
|---|---|---|
Marque Eaton | ||
Body Material Plastic | ||
Product Type General Purpose Enclosure | ||
External Height 250mm | ||
External Length 175mm | ||
External Width 187.5mm | ||
IP Rating IP65 | ||
Lid Colour Transparent | ||
Colour Grey | ||
Hazardous Area Certification No | ||
Series xEnergy Safety | ||
Mounting plate Yes | ||
Standards/Approvals EN 62208, EN 61439-2 | ||
Weight 1.28kg | ||
Transparent Door Yes | ||
IK Rating IK10 | ||
Statut RoHS : Exempté
- Pays d'origine :
- FI
The Eaton xEnergy Safety Ci is designed to enhance safety and efficiency in low voltage applications. This insulated enclosure comes with a compact design, ensuring it fits seamlessly in various environments while providing robust protection. With dimensions of 250 x 187.5 x 175 mm, it features a top and bottom-open configuration, allowing for easy access and installation. Built to withstand harsh conditions, this enclosure is suitable for both indoor and outdoor use, ensuring durability and reliability. Equipped with a pressure-relief mechanism for short-circuits, it prioritises safety without compromising on functionality. The xEnergy Safety Ci is the ideal choice for installers seeking a dependable solution that meets rigorous compliance standards and enhances operational performance.
Compact design facilitates installation in tight spaces
Insulated enclosure ensures enhanced electrical safety
Integrated pressure-relief mechanism enhances user safety
UV resistance extends lifespan for outdoor applications
IK10 classification protects against mechanical impact
Meets RoHS compliance for eco-friendly operations
Nominal current handling of 1600 A supports high-demand environments
Temperature resistance from -40 °C to 120 °C offers versatility in extreme conditions
Halogen-free materials contribute to a safer environment
Surface mounted design allows for easy installation on various surfaces
