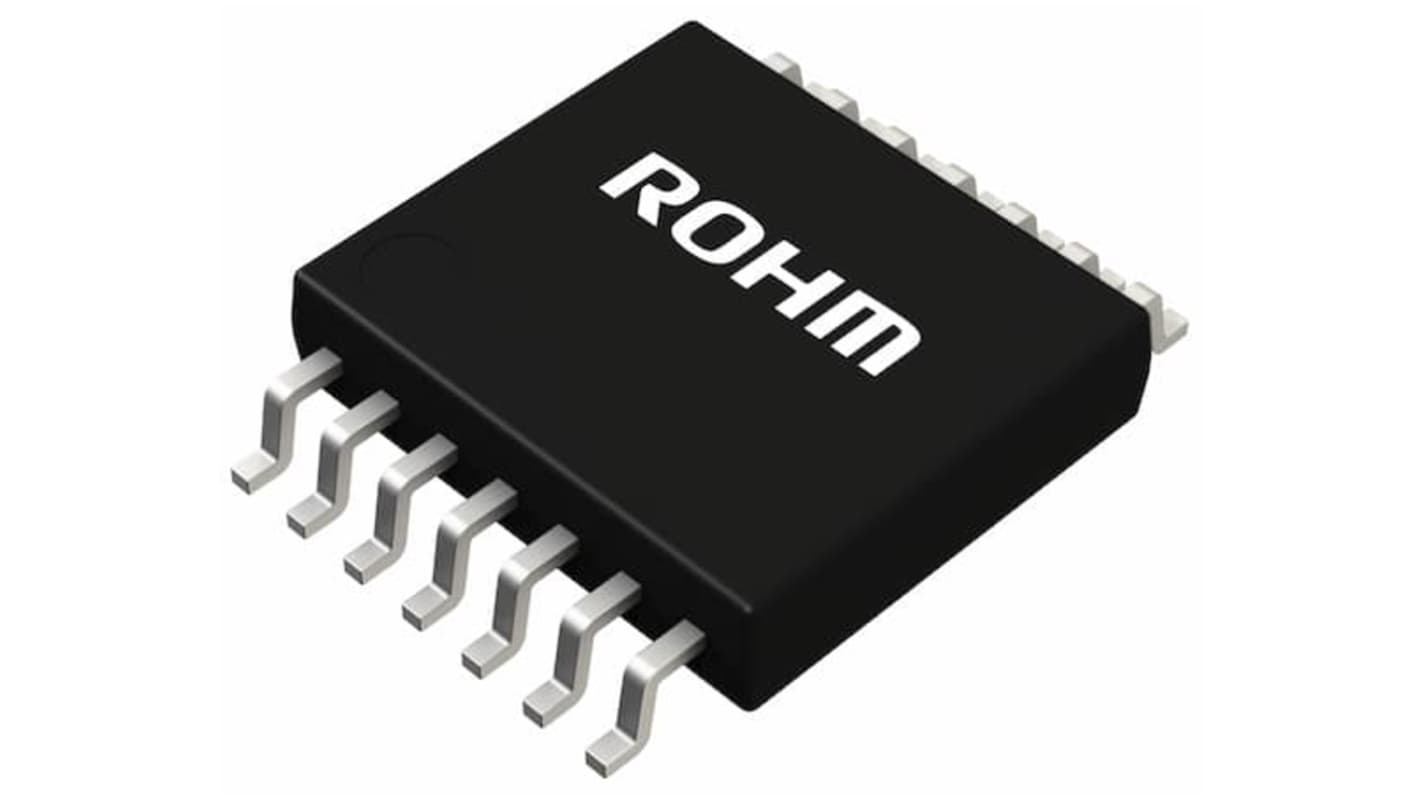

ROHM BD74C08FV-CE2, Gate Driver 4, 4 mA 14-Pin 5.5 V, SSOP
- N° de stock RS:
- 264-382
- Référence fabricant:
- BD74C08FV-CE2
- Fabricant:
- ROHM
Offre groupée disponible
Sous-total (1 ruban de 10 unités)*
10,28 €
(TVA exclue)
12,44 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- Plus 100 unité(s) expédiée(s) à partir du 12 janvier 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le ruban* |
|---|---|---|
| 10 - 90 | 1,028 € | 10,28 € |
| 100 - 240 | 0,977 € | 9,77 € |
| 250 - 490 | 0,905 € | 9,05 € |
| 500 - 990 | 0,833 € | 8,33 € |
| 1000 + | 0,802 € | 8,02 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 264-382
- Référence fabricant:
- BD74C08FV-CE2
- Fabricant:
- ROHM
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ROHM | |
| Product Type | Gate Driver Module | |
| Output Current | 4mA | |
| Pin Count | 14 | |
| Fall Time | 20ns | |
| Package Type | SSOP | |
| Number of Outputs | 4 | |
| Driver Type | Gate Driver | |
| Minimum Supply Voltage | 5.5V | |
| Maximum Supply Voltage | 5.5V | |
| Number of Drivers | 4 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.35mm | |
| Series | BD74C08FV-CE2 | |
| Length | 5mm | |
| Standards/Approvals | AEC-Q100 | |
| Width | 6.4 mm | |
| Automotive Standard | AEC-Q100 | |
| Sélectionner tout | ||
|---|---|---|
Marque ROHM | ||
Product Type Gate Driver Module | ||
Output Current 4mA | ||
Pin Count 14 | ||
Fall Time 20ns | ||
Package Type SSOP | ||
Number of Outputs 4 | ||
Driver Type Gate Driver | ||
Minimum Supply Voltage 5.5V | ||
Maximum Supply Voltage 5.5V | ||
Number of Drivers 4 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 1.35mm | ||
Series BD74C08FV-CE2 | ||
Length 5mm | ||
Standards/Approvals AEC-Q100 | ||
Width 6.4 mm | ||
Automotive Standard AEC-Q100 | ||
The ROHM Quad 2-input AND gate is engineered for high-performance operation in automotive applications. Boasting an impressive power supply voltage range from 1.65V to 5.5V, it ensures low power consumption with a maximum ICC of just 10 μA. Designed to meet stringent automotive standards, it features an output tolerant circuit that protects the output circuit from back flow current during power-down conditions.
Output tolerant capability for enhanced circuit protection
Designed with functional safety support for automotive standards
Compact SSOP B14 package for space saving integration
Includes an input tolerance of up to 55V for versatile applications
