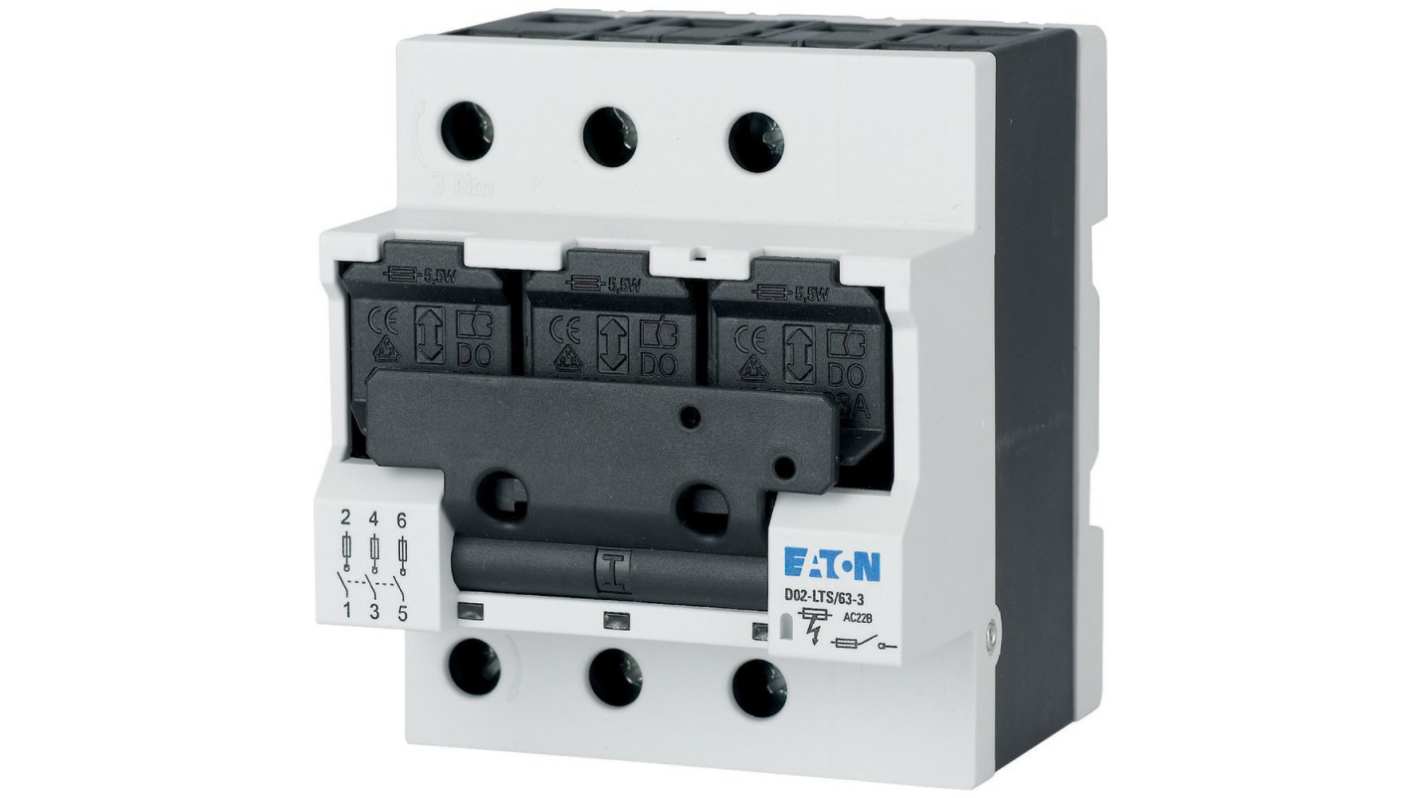

Eaton Switch Disconnector, 3-Pole, 63 A, 63A
- N° de stock RS:
- 231-946
- Référence fabricant:
- 114320 D02-LTS/63-3
- Fabricant:
- Eaton
Sous-total (1 unité)*
181,00 €
(TVA exclue)
219,01 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 29 décembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 181,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 231-946
- Référence fabricant:
- 114320 D02-LTS/63-3
- Fabricant:
- Eaton
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Eaton | |
| Number of Poles | 3 | |
| Product Type | Switch Disconnector | |
| Enclosed/Not Enclosed | Not Enclosed | |
| Mount Type | Top Hat Rail | |
| Switching Voltage | 400V | |
| Switching Current | 63A | |
| Terminal Type | Lift | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Fuse Current | 63A | |
| Maximum Operating Temperature | 60°C | |
| Auxiliary Contacts Available | No | |
| Standards/Approvals | IEC/EN 60715 | |
| Sélectionner tout | ||
|---|---|---|
Marque Eaton | ||
Number of Poles 3 | ||
Product Type Switch Disconnector | ||
Enclosed/Not Enclosed Not Enclosed | ||
Mount Type Top Hat Rail | ||
Switching Voltage 400V | ||
Switching Current 63A | ||
Terminal Type Lift | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Fuse Current 63A | ||
Maximum Operating Temperature 60°C | ||
Auxiliary Contacts Available No | ||
Standards/Approvals IEC/EN 60715 | ||
Statut RoHS : Exempté
- Pays d'origine :
- DE
The Eaton fuse switch-disconnector combines advanced functionality with robust construction, making it an ideal choice for both commercial and industrial applications. Designed for ease of use, the product features a three-pole configuration that ensures reliable performance and safety in various electrical environments. The compact design allows for efficient space utilisation on the rail, while the innovative current coding through locating inserts enhances installation flexibility. With a wide operating temperature range, this fuse switch-disconnector is built to withstand demanding conditions, ensuring longevity and dependability. Additionally, its compliance with stringent safety standards guarantees peace of mind for users and installers alike.
Efficient design allows for infeed from both sides
Equipped with holding springs for enhanced fuse stability
Current heat loss per contact is optimised for performance
Quick attachment mechanism simplifies mounting on top-hat rail
Flammability characteristics ensure safer operation under high temperatures
Compact width promotes space-saving installations
Rated impulse withstand voltage contributes to electrical safety
Pollution degree rating confirms suitability for various environments
Sealable features allow for secure installation, enhancing user safety
Versatile fuse cartridge compatibility accommodates varying amperage needs
