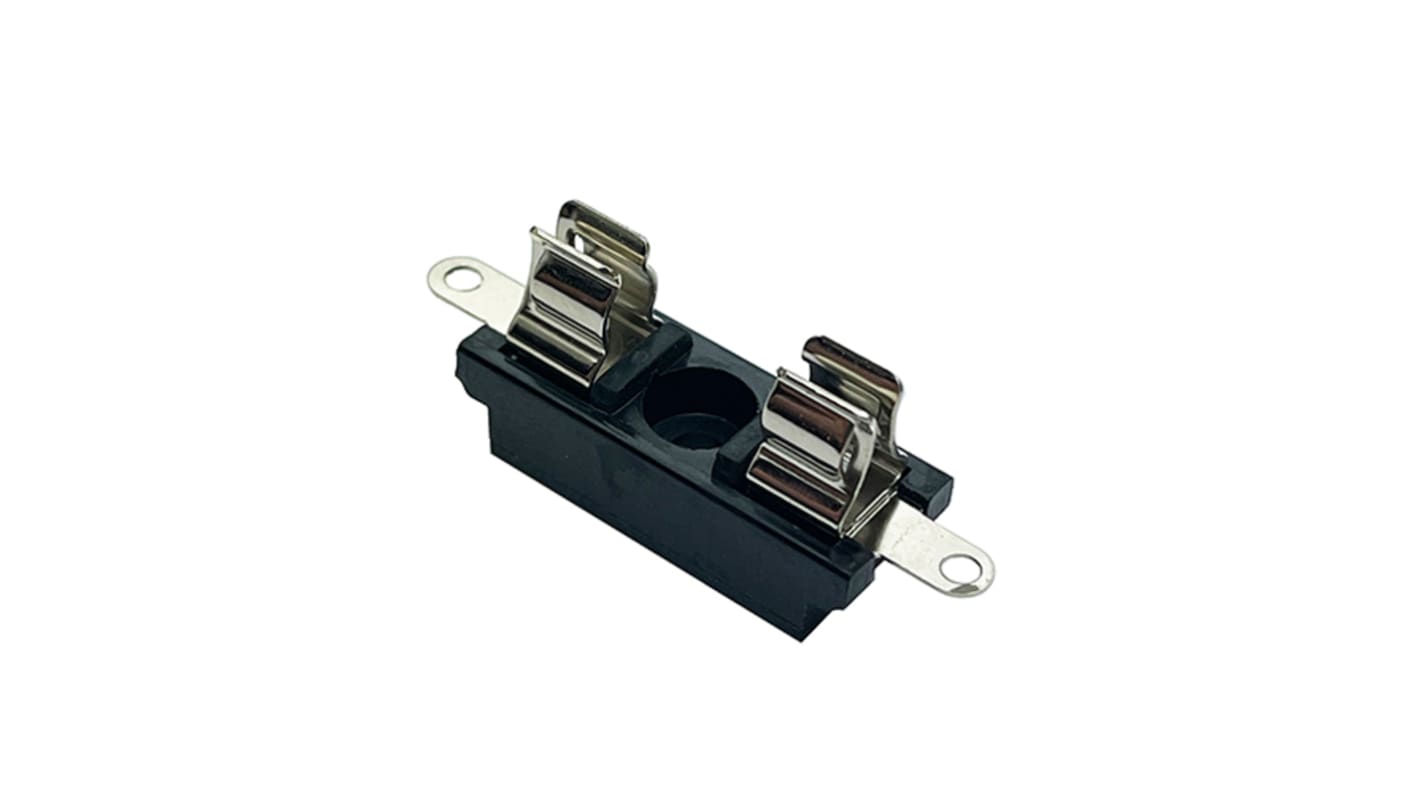

Eaton 15A 5 x 20 mm, Panel Cartridge Fuse Block, 250V
- N° de stock RS:
- 233-0607
- Référence fabricant:
- BK4-HTC-518M
- Fabricant:
- Eaton
Sous-total (1 paquet de 10 unités)*
11,38 €
(TVA exclue)
13,77 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 150 unité(s) expédiée(s) à partir du 16 novembre 2026
- Plus 2 420 unité(s) expédiée(s) à partir du 23 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 10 + | 1,138 € | 11,38 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 233-0607
- Référence fabricant:
- BK4-HTC-518M
- Fabricant:
- Eaton
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Eaton | |
| Fuse Type | Cartridge | |
| Product Type | Fuse Block | |
| Fuse Size | 5 x 20 mm | |
| Number of Fuses | 1 | |
| Current Rating | 15A | |
| Voltage | 250V | |
| Minimum Operating Temperature | 0°C | |
| Mount Type | Panel | |
| Maximum Operating Temperature | 60°C | |
| Body Material | TPE | |
| Standards/Approvals | CSA, UL, CE | |
| Clip Material | Copper | |
| For Use With | Class J | |
| Compatible Fuse Class | Class J | |
| Holder Terminal Type | Clamp | |
| Series | BK4 | |
| Dielectric Strength | 600V | |
| Sélectionner tout | ||
|---|---|---|
Marque Eaton | ||
Fuse Type Cartridge | ||
Product Type Fuse Block | ||
Fuse Size 5 x 20 mm | ||
Number of Fuses 1 | ||
Current Rating 15A | ||
Voltage 250V | ||
Minimum Operating Temperature 0°C | ||
Mount Type Panel | ||
Maximum Operating Temperature 60°C | ||
Body Material TPE | ||
Standards/Approvals CSA, UL, CE | ||
Clip Material Copper | ||
For Use With Class J | ||
Compatible Fuse Class Class J | ||
Holder Terminal Type Clamp | ||
Series BK4 | ||
Dielectric Strength 600V | ||
- Pays d'origine :
- TW
Eaton BK4 Series Fuse Block, 15A Current Rating, 250V Voltage - BK4-HTC-518M
This fuse Block provides a Compact means to secure and connect a single Class J 5x20mm fuse within panel-mounted electrical assemblies. It is intended for use where controlled overcurrent protection and straightforward installation are required, offering insulation and a clamp-style Terminal arrangement to integrate into industrial control and distribution setups.
Features and Benefits:
• Thermoplastic body limits heat transfer and reduces weight • Copper clips ensure low-resistance contact and longevity • Rated for 15A to match common control circuit loads • 250V rating supports moderate-voltage distribution systems • Dielectric strength of 600V enhances isolation safety margins • Panel-mount design allows secure fixed installation
Applications
• Suitable for industrial motor control panels requiring Class J protection • Ideal for automation racks where straightforward fuse replacement is needed • Used with distribution modules in electrical switchboards • Can be used for protection in mechanical equipment control circuits • Used for retrofitting legacy panels that accept 5x20mm fuses
What Terminal connection style does it use and how does that affect installation?
It uses a clamp-style Terminal that provides a firm mechanical and electrical connection, simplifying screw-down wiring during panel assembly.
What ambient temperatures can it reliably operate in?
It is specified to operate between 0°C and 60°C, making it suitable for typical indoor industrial environments.
Which approvals indicate suitability for international installations?
It carries CSA, UL and CE approvals, reflecting conformity with North American and European component standards.
How many fuses can be accommodated and what mounting method is required?
The holder accepts a single fuse and is designed for panel mounting to secure it within control enclosures.
Note
Eaton formerly known as Bussmann
