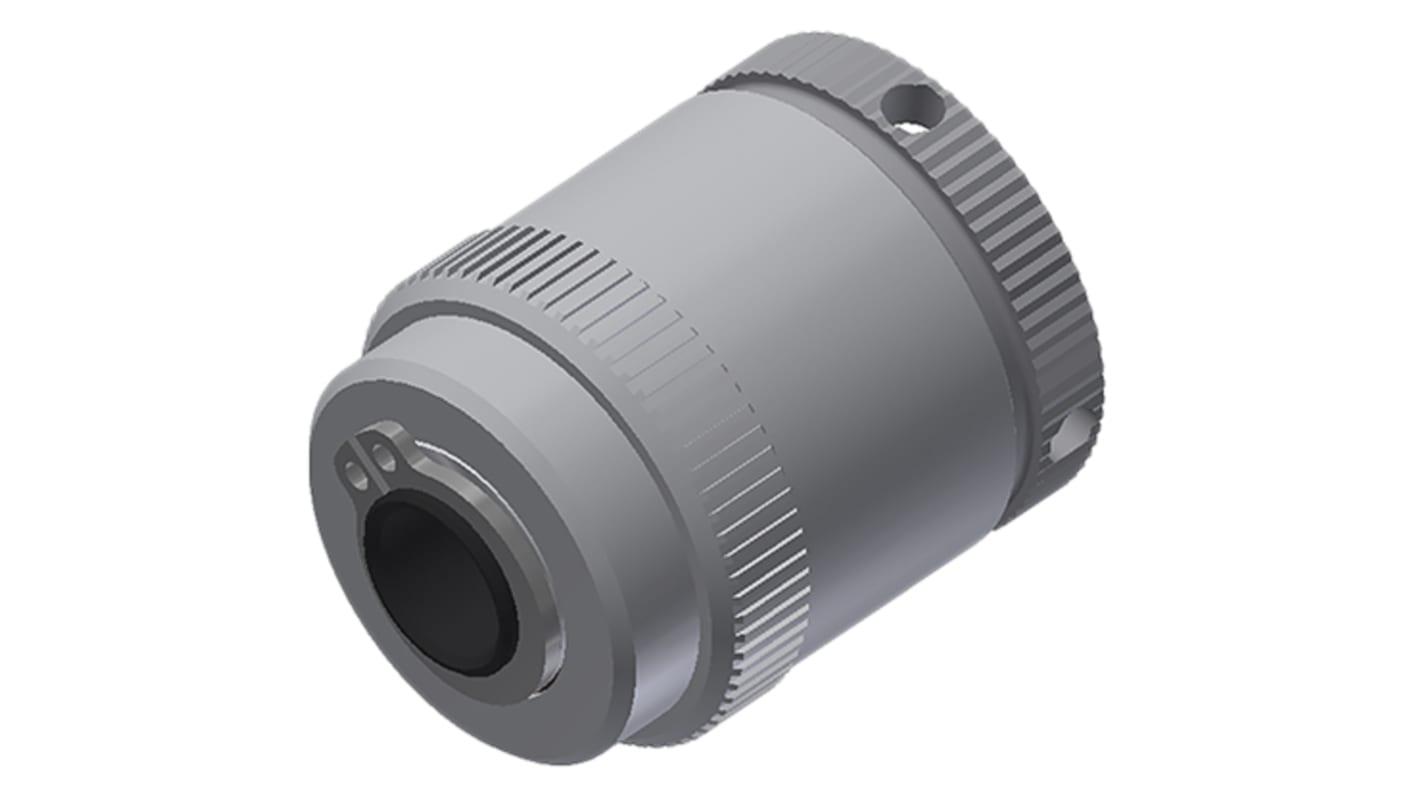

Huco Friction Clutch, 6mm Bore 132Ncm
- N° de stock RS:
- 890-3045
- Référence fabricant:
- 279P25.22.RS
- Fabricant:
- Huco
Offre groupée disponible
Sous-total (1 unité)*
41,54 €
(TVA exclue)
50,26 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 8 unité(s) prête(s) à être expédiée(s)
- Plus 9 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 41,54 € |
| 5 - 9 | 39,88 € |
| 10 + | 39,06 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 890-3045
- Référence fabricant:
- 279P25.22.RS
- Fabricant:
- Huco
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Huco | |
| Bore | 6mm | |
| Torque Rating | 132Ncm | |
| Body Diameter | 25.8mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Huco | ||
Bore 6mm | ||
Torque Rating 132Ncm | ||
Body Diameter 25.8mm | ||
- Pays d'origine :
- GB
Basic 6 Plate Adjustable Friction Clutches with Set Screw and Clamp Fixings
Friction clutches from Huco Vari-Tork designed with adjustable drag or slip torque. Controlled slip takes place between the hub and housing whenever the load exceeds the set torque.
A simple construction, the pressure is brought on to the plates and friction rings by an adjuster acting through a spring and pressure plate. The load can either be connected to the steel inner hub or the aluminium alloy housing.
A simple construction, the pressure is brought on to the plates and friction rings by an adjuster acting through a spring and pressure plate. The load can either be connected to the steel inner hub or the aluminium alloy housing.
Features and Benefits
• Compact proportions
• 4 interface styles
• Set screw or clamp connection
• Can be used as a torque limiter, tensioning, overrun device
• 4 interface styles
• Set screw or clamp connection
• Can be used as a torque limiter, tensioning, overrun device
Product Application Information
As a torque limiter, Vari-Tork interrupts continuity between the power source and load when it reaches a pre-determined level.
As a tensioning device, Vari-Tork typically maintains tension in a filament or tape winding operation by exerting drag on the feed spool.
As an overrun device, Vari-Tork absorbs residual inertia of a motor when the load is braked or reaches a terminal stop.
As a tensioning device, Vari-Tork typically maintains tension in a filament or tape winding operation by exerting drag on the feed spool.
As an overrun device, Vari-Tork absorbs residual inertia of a motor when the load is braked or reaches a terminal stop.
