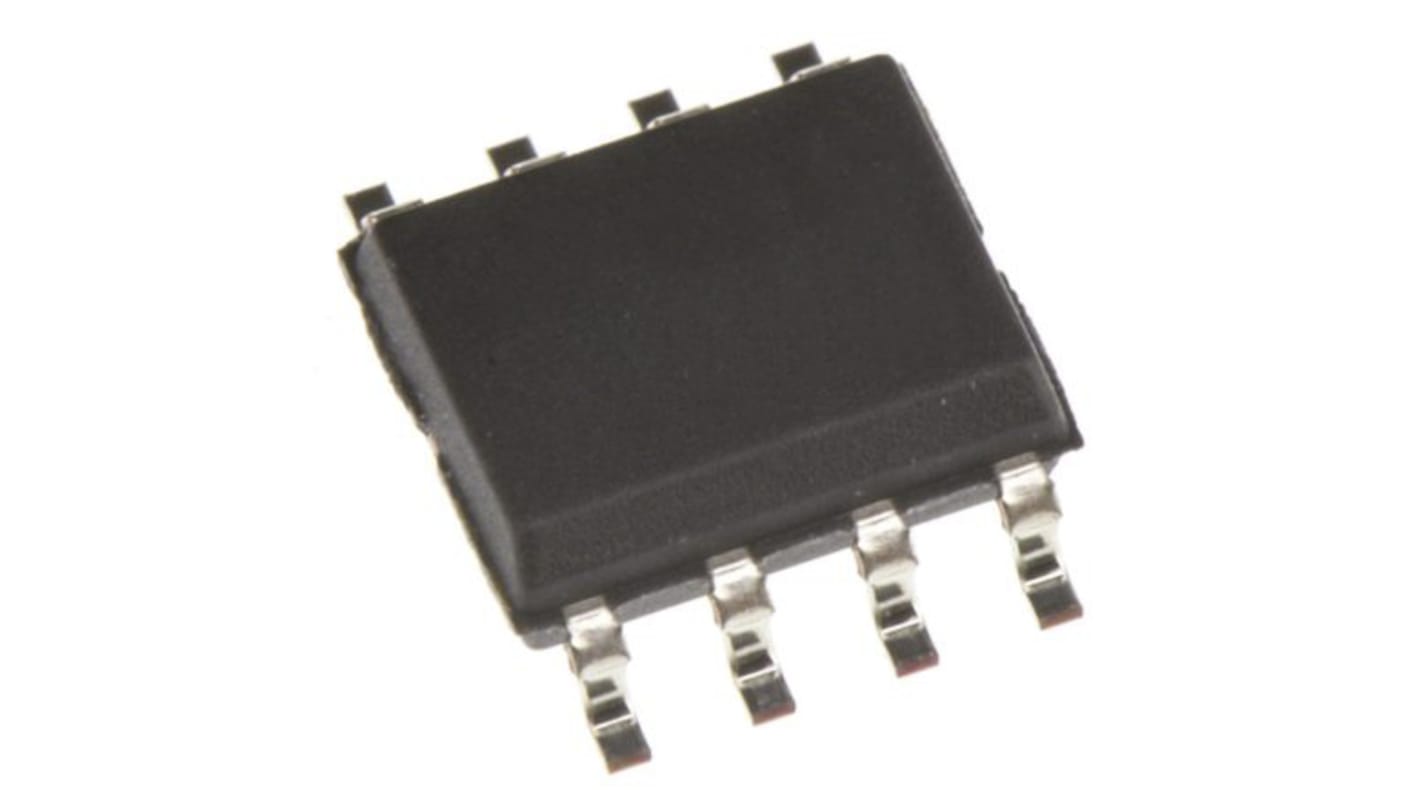

Infineon 64 kB 2 Wire I2C FRAM 8-Pin SOIC, FM24CL64B-G
- N° de stock RS:
- 188-5402
- Référence fabricant:
- FM24CL64B-G
- Fabricant:
- Infineon
Bénéficiez d'une remise sur les achats en gros
Ajoutez 194 de plus pour économiser 65,57 €
Consulter les options de prix de grosSous-total (1 tube de 97 unités)*
327,57 €
(TVA exclue)
396,34 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 97 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le tube* | Économie |
|---|---|---|---|
| 97 - 97 | 3,377 € | 327,57 € | - |
| 194 - 485 | 3,039 € | 294,78 € | 65,57 € |
| 582 + | 2,901 € | 281,40 € | 277,03 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 188-5402
- Référence fabricant:
- FM24CL64B-G
- Fabricant:
- Infineon
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Infineon | |
| Memory Size | 64kB | |
| Product Type | FRAM | |
| Organisation | 8K x 8 bit | |
| Interface Type | 2 Wire I2C | |
| Data Bus Width | 8bit | |
| Maximum Random Access Time | 550ns | |
| Maximum Clock Frequency | 1MHz | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Standards/Approvals | No | |
| Length | 4.97mm | |
| Height | 1.38mm | |
| Width | 3.98mm | |
| Maximum Operating Temperature | 85°C | |
| Maximum Supply Voltage | 3.65V | |
| Automotive Standard | AEC-Q100 | |
| Number of Words | 8K | |
| Minimum Supply Voltage | 2.7V | |
| Minimum Operating Temperature | -40°C | |
| Number of Bits per Word | 8 | |
| Sélectionner tout | ||
|---|---|---|
Marque Infineon | ||
Memory Size 64kB | ||
Product Type FRAM | ||
Organisation 8K x 8 bit | ||
Interface Type 2 Wire I2C | ||
Data Bus Width 8bit | ||
Maximum Random Access Time 550ns | ||
Maximum Clock Frequency 1MHz | ||
Mount Type Surface | ||
Package Type SOIC | ||
Pin Count 8 | ||
Standards/Approvals No | ||
Length 4.97mm | ||
Height 1.38mm | ||
Width 3.98mm | ||
Maximum Operating Temperature 85°C | ||
Maximum Supply Voltage 3.65V | ||
Automotive Standard AEC-Q100 | ||
Number of Words 8K | ||
Minimum Supply Voltage 2.7V | ||
Minimum Operating Temperature -40°C | ||
Number of Bits per Word 8 | ||
- Pays d'origine :
- US
FRAM, Cypress Semiconductor
Ferroelectric Random Access Memory (F-RAM) is energy-efficient and it has the highest-reliability of the non-volatile RAMs for both serial and parallel interfaces. Parts with suffix A are designed for automotive applications and are AEC-Q100 qualified.
Nonvolatile Ferroelectric RAM Memory
Fast write speed
High endurance
Low power consumption
FRAM (Ferroelectric RAM)
FRAM (Ferroelectric Random Access Memory) is a non-volatile memory that uses ferroelectric film as a capacitor for storing data. Possessing characteristics of both ROM and RAM devices, F-RAM features high-speed access, high endurance in write mode, low power consumption, non-volatility, and excellent tamper resistance. It is therefore ideal memory for use in smart cards which need high security and low power consumption, as well as cellular phones and other devices.
