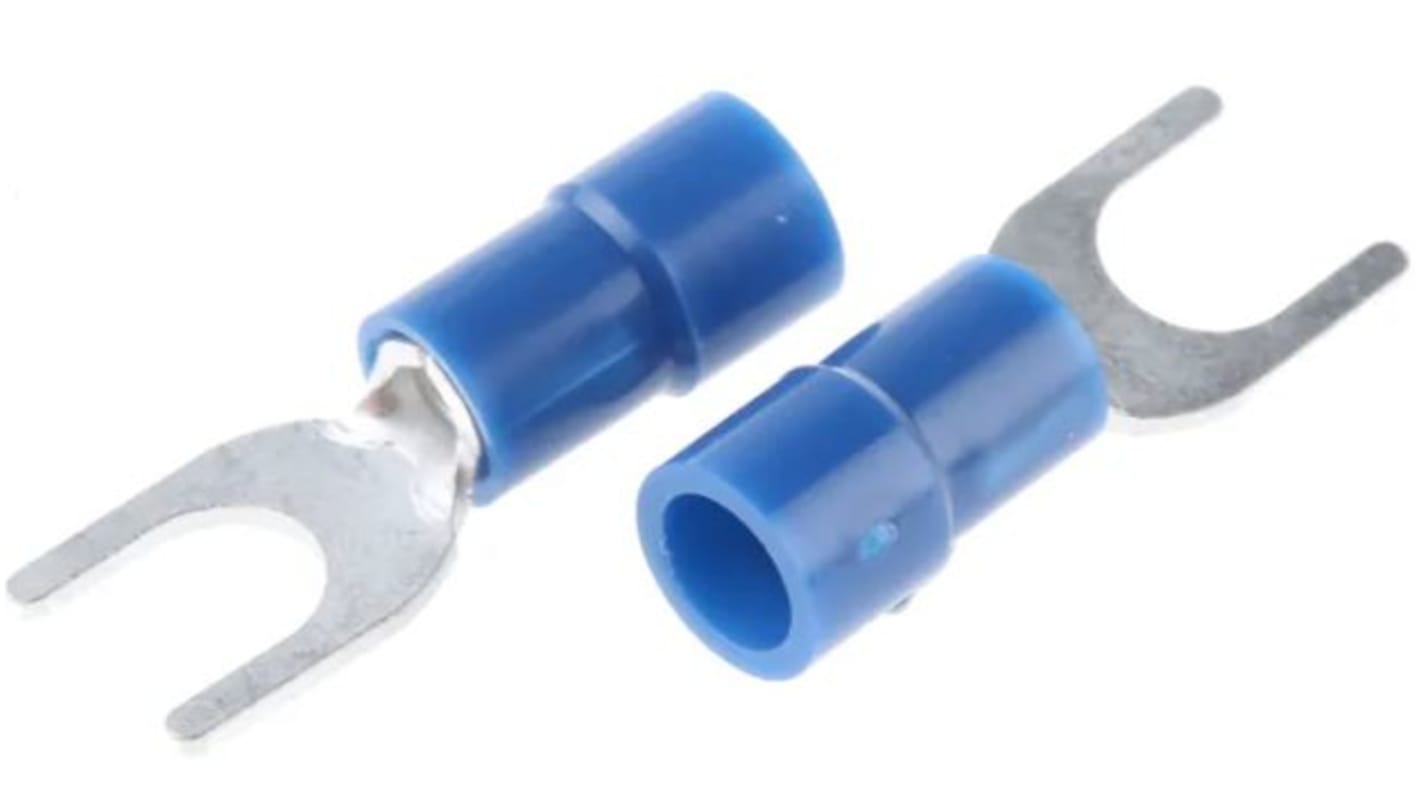

RS PRO Insulated Fork Terminal, 16 AWG to 14 AWG, 5.3 mm Stud Size Vinyl, Blue
- N° de stock RS:
- 270-7660
- Fabricant:
- RS PRO
Sous-total (1 sachet de 500 unités)*
44,00 €
(TVA exclue)
53,00 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 11 500 unité(s) expédiée(s) à partir du 09 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | Le Sachet* |
|---|---|---|
| 500 + | 0,088 € | 44,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 270-7660
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Product Type | Fork Terminal | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Width | 7.9mm | |
| Minimum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 16AWG | |
| Maximum Wire Size mm² | 2.5mm² | |
| Maximum Wire Size AWG | 14AWG | |
| Overall Length | 22mm | |
| Stud Size | 5.3 mm | |
| Colour | Blue | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Standards/Approvals | UL, cUL, RoHS, REACH, CE | |
| Thickness | 800μm | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Product Type Fork Terminal | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Width 7.9mm | ||
Minimum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 16AWG | ||
Maximum Wire Size mm² 2.5mm² | ||
Maximum Wire Size AWG 14AWG | ||
Overall Length 22mm | ||
Stud Size 5.3 mm | ||
Colour Blue | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Standards/Approvals UL, cUL, RoHS, REACH, CE | ||
Thickness 800μm | ||
- Pays d'origine :
- TW
Small Pack Size
Per Unit, RS stock no: 613-9514
Large Pack Size
RS stock no: 270-7660
RS PRO Insulated Spade Connectors
These insulated crimp-spade terminals are your go-to solution for effortless wire termination without the hassle of soldering. Designed to connect wires to studs, bus bars, and more, they provide unmatched strength and durability with their copper construction and tin plating. But that's not all - these connectors are also insulated with a non-conductive, corrosion-resistant nylon material for ultimate safety and longevity.
Features and Benefits
