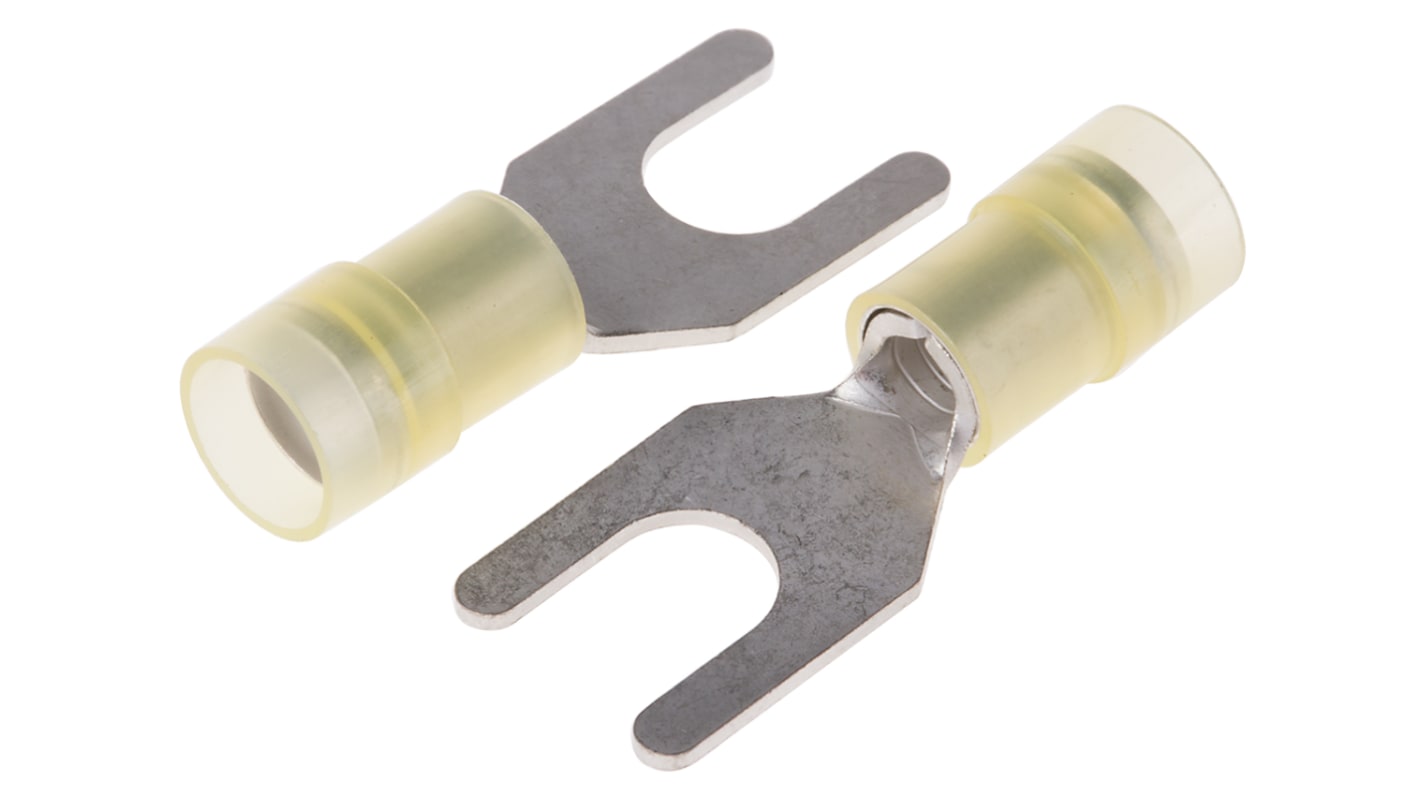

RS PRO Insulated Fork Terminal, 12 AWG to 10 AWG, M6 Stud Size Nylon, Yellow
- N° de stock RS:
- 267-3931
- Fabricant:
- RS PRO
Bénéficiez d'une remise sur les achats en gros
Ajoutez 500 de plus pour économiser 15%
Consulter les options de prix de grosSous-total (1 paquet de 100 unités)*
31,90 €
(TVA exclue)
38,60 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 3 700 unité(s) expédiée(s) à partir du 09 novembre 2026
- Plus 5 000 unité(s) expédiée(s) à partir du 13 avril 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* | Économie |
|---|---|---|---|
| 100 - 400 | 0,319 € | 31,90 € | - |
| 500 - 2400 | 0,271 € | 27,10 € | 15% |
| 2500 + | 0,24 € | 24,00 € | 24% |
*Prix donné à titre indicatif
- N° de stock RS:
- 267-3931
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Product Type | Fork Terminal | |
| Series | RS PRO | |
| Insulation | Insulated | |
| Insulation Material | Nylon | |
| Width | 12mm | |
| Minimum Wire Size mm² | 4mm² | |
| Minimum Wire Size AWG | 12AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Maximum Wire Size mm² | 6mm² | |
| Overall Length | 31.5mm | |
| Stud Size | M6 | |
| Hooked | No | |
| Colour | Yellow | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Standards/Approvals | No | |
| Thickness | 1mm | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Product Type Fork Terminal | ||
Series RS PRO | ||
Insulation Insulated | ||
Insulation Material Nylon | ||
Width 12mm | ||
Minimum Wire Size mm² 4mm² | ||
Minimum Wire Size AWG 12AWG | ||
Maximum Wire Size AWG 10AWG | ||
Maximum Wire Size mm² 6mm² | ||
Overall Length 31.5mm | ||
Stud Size M6 | ||
Hooked No | ||
Colour Yellow | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Standards/Approvals No | ||
Thickness 1mm | ||
- Pays d'origine :
- TW
RS PRO Insulated Double Crimp Spade Terminals
Tired of unreliable connections that leave you in a tangled mess? Look no further than RS PRO crimp terminals. These high-quality insulated fork terminals are here to simplify your electrical connections. With their durable construction and maximum conductivity, you can bid farewell to loose wires and hello to a secure and reliable connection every time.
Made from highly conductive copper and tin plated for maximum electrical conductivity and corrosion resistance, these crimp connectors are the epitome of durability. Say goodbye to flimsy connections that cause headaches and hello to the perfect connection with RS PRO Crimp Connectors. Get ready to experience hassle-free electrical work like never before.
Features and Benefits
