Gems Sensors FS-150 Series Piston Flow Switch for Liquid, 0.5gal/min Max
- N° de stock RS:
- 906-8086
- Référence fabricant:
- 129660
- Fabricant:
- Gems Sensors
Sous-total (1 unité)*
115,58 €
(TVA exclue)
139,85 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 10 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 7 unité(s) expédiée(s) à partir du 03 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 115,58 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 906-8086
- Référence fabricant:
- 129660
- Fabricant:
- Gems Sensors
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Gems Sensors | |
| Media Monitored | Liquid | |
| Product Type | Flow Switch | |
| Device Type | Piston | |
| Maximum Flow Rate | 0.5gal/min | |
| Maximum Pressure | 13.8bar | |
| Minimum Media Temperature | 21.1°C | |
| Minimum Operating Temperature | -17.8°C | |
| Maximum Media Temperature | 65.5°C | |
| Maximum Operating Temperature | 100°C | |
| Series | FS-150 | |
| Sélectionner tout | ||
|---|---|---|
Marque Gems Sensors | ||
Media Monitored Liquid | ||
Product Type Flow Switch | ||
Device Type Piston | ||
Maximum Flow Rate 0.5gal/min | ||
Maximum Pressure 13.8bar | ||
Minimum Media Temperature 21.1°C | ||
Minimum Operating Temperature -17.8°C | ||
Maximum Media Temperature 65.5°C | ||
Maximum Operating Temperature 100°C | ||
Series FS-150 | ||
- Pays d'origine :
- US

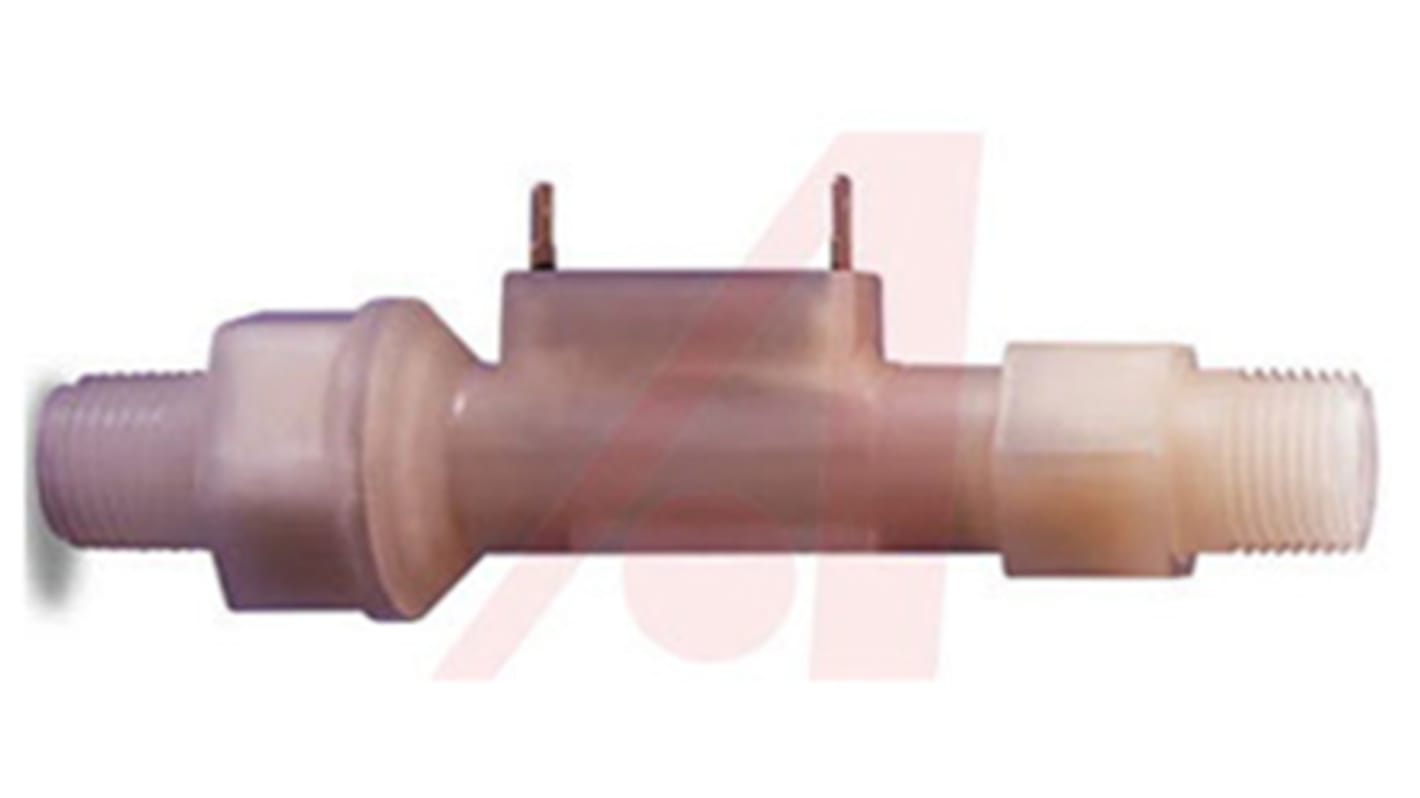

FS-150 Series Flow Switch
These slim, inline switches reduce pressure drop to a minimum. They incorporate a unique, dual-diameter, internal bore and piston configuration to minimise flow constriction. Liquids are able to pass around the piston and flow through the switch with little pressure loss to the down stream line.
Features and Benefits
• Flow Rate Settings: Liquids 2 LPM and 19 LPM;• Port Size: ½"" NPT;• Primary Construction Material: Polypropylene;• Setting Type: Fixed
Product Application Information
• Electronic Equipment: Laser Heads, Welders, Power Supplies, High-Speed Spindles, X-Ray Tubes, Semiconductor Equipment ;• Bearings or Gears: Presses, Rotating Equipment, Conveyors, Machine Tools, Robotics ;• Processing and Dispensing Equipment: Water Purifications and Filtering, X-Ray Film Processing, Beverage Dispensing, Chemical Additives, Gas Sampling, Distilling
