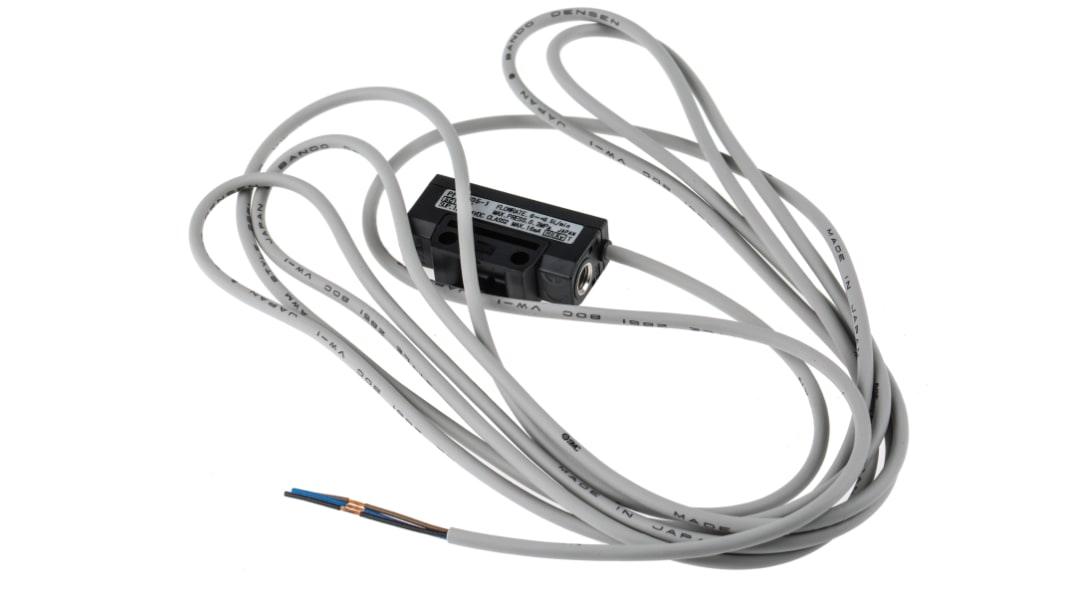

SMC PFMV Series Suction Pressure Sensor for Air, 0L/min Min, 0.5L/min Max

Voir l’ensemble des Flow Sensors

Sous-total (1 unité)*

162,40 €

(TVA exclue)

196,50 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 2 unité(s) prête(s) à être expédiée(s)
  • Plus 1 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
  • Plus 5 unité(s) expédiée(s) à partir du 04 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +162,40 €

*Prix donné à titre indicatif

N° de stock RS:
849-9439
Référence fabricant:
PFMV505-1
Fabricant:
SMC
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

SMC

Product Type

Pressure Sensor

Media Monitored

Air

Device Type

Suction

Minimum Flow Rate

0L/min

Housing Material

Polyphenylene Sulphide

Maximum Flow Rate

0.5L/min

Connection Type

One-Touch Fitting

Maximum Pressure

500kPa

Minimum Media Temperature

0°C

IP Rating

IP40

Maximum Supply Voltage

24V dc

Maximum Media Temperature

50°C

Minimum Operating Temperature

0°C

Maximum Operating Temperature

50°C

Standards/Approvals

No

Series

PFMV

Current Rating

16mA

Statut RoHS : Exempté

Pays d'origine :
JP

SMC PFMV Series Pressure Sensor, 500kPa Maximum Pressure, 0.5L/min Maximum Flow Rate - PFMV505-1


This pressure sensor is designed for monitoring dry air and gas, offering precise measurements within a compact format. With a pipe diameter range of 4mm, this device operates effectively in various pneumatic applications. Operating at a supply voltage of 12 to 24V DC and featuring a one-touch fitting for easy installation, it is ideal for users in automation and mechanical industries looking for reliability and efficiency.

Features & Benefits


• Measures flow rates from 0 to 0.5 l/min for accurate monitoring

• Utilises PPS material for enhanced durability and performance

• Provides stable detection with minimal errors in pressure assessment

• Features a digital flow rate display for immediate reading

• Compatible with various sensors, requiring no range selection

• Response time of 5 ms ensures quick data feedback for operational efficiency

Applications


• Ideal for suction involving very small workpieces

• Suitable for gas pressure monitoring in automated systems

• Utilised in vacuum release checks within manufacturing processes

• Employed in automated quality control for precise suction checks

What type of media can be monitored with this sensor?


It can monitor dry air and gas, ensuring accurate readings for various applications.

How does the one-touch fitting enhance installation?


This fitting allows for quick and straightforward connections, reducing installation time and complexity.

Can the sensor operate effectively in varying temperatures?


Yes, it is designed to function within temperatures ranging from 0 to +50 °C, making it versatile for different environments.

What is the current rating for this device?


The current consumption is rated at 16mA, ensuring low energy use while facilitating reliable operation.
