ifm electronic SU Series Flow Meter 0L/min to 100L/min, 1 in G, G
- N° de stock RS:
- 740-6430
- Référence fabricant:
- SU8000
- Fabricant:
- ifm electronic
Sous-total (1 unité)*
1 132,61 €
(TVA exclue)
1 370,46 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Dernier stock RS
- 17 restante(s), prêt à être expédié
- Plus 2 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Unité | Prix par unité |
|---|---|
| 1 + | 1 132,61 € |
*Prix donné à titre indicatif
Produit de remplacement
Ce produit n'est pas disponible actuellement. Voici notre produit de remplacement:
la pièce
781,59 €
(TVA exclue)
945,72 €
(TVA incluse)
- N° de stock RS:
- 740-6430
- Référence fabricant:
- SU8000
- Fabricant:
- ifm electronic
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ifm electronic | |
| Product Type | Flow Meter | |
| Connection Thread Size | 1 in G | |
| Connection Thread Standard | G | |
| Body Material | Aluminium Magnesium Silicon Alloy | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | cULus, CE, EC | |
| Series | SU | |
| Wetted Materials | Aluminium Alloy | |
| Maximum Flow Rate | 100L/min | |
| Minimum Flow Rate | 0L/min | |
| Sélectionner tout | ||
|---|---|---|
Marque ifm electronic | ||
Product Type Flow Meter | ||
Connection Thread Size 1 in G | ||
Connection Thread Standard G | ||
Body Material Aluminium Magnesium Silicon Alloy | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals cULus, CE, EC | ||
Series SU | ||
Wetted Materials Aluminium Alloy | ||
Maximum Flow Rate 100L/min | ||
Minimum Flow Rate 0L/min | ||
- Pays d'origine :
- US

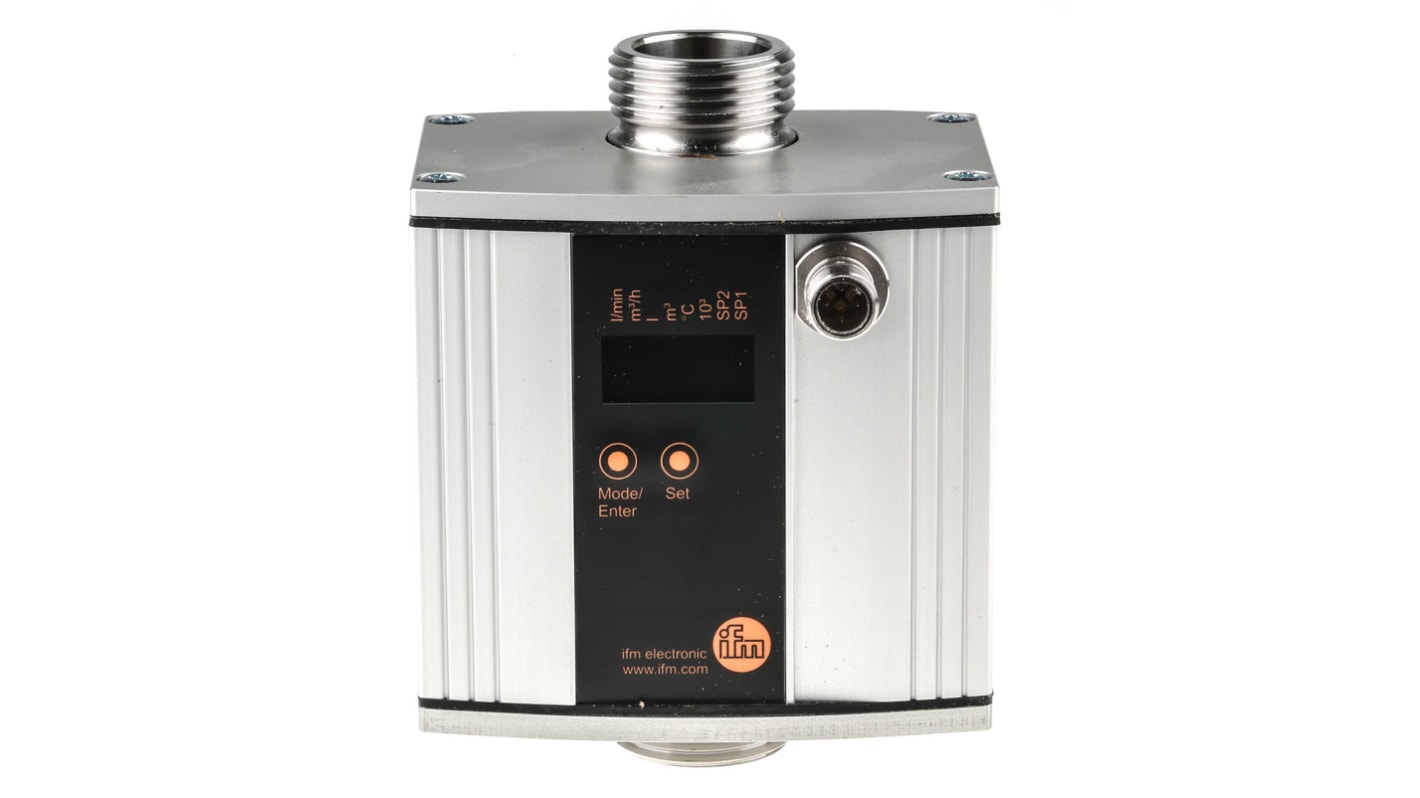

ifm electronic Flow Meter
The ifm electronic SU series electronic ultrasonic flow meter measures the liquid flow rate of 0L/min to 100L/min. The flow metre monitors liquid media such as water, glycol solutions, or industrial oils. It detects the 3 process categories, namely volumetric flow quantity, consumed quantity and medium temperature. The user can access and adjust the peak consumption, present consumption, or accumulated consumption via programmed switch and alarm level settings, all at the touch of a button.
Note:
Threaded (or push-fit) connecting adapters are not included with the volumetric flow sensor
Suitable connectors may be sourced (depending on the type required), for example, a G3/4 male to G3/4 female adaptor (RS stock no. 807-766), or similar
Inclusions:
2 packing washers.
Features and Benefits
Connection type is 1 BSP
Maximum operating pressure is 16bar
Maximum operating temperature is 60°C
Required supply voltage range is 19VDC to 30VDC
High accuracy, repeatability and measurement dynamics
Clearly visible LED display
It has volumetric flow quantity, total quantity and temperature indication
The process connection is G¾ flat seal
The units feature 2 switching outputs that can be programmed as normally open or normally closed
For consumed quantity monitoring, the other output transmits counting pulses to the controller
The robust stainless steel housing and high protection rating provide high security even in harsh environments
Depending on the volumetric flow quantity to be detected, devices with different process connections are offered
Certifications
CE certified
UL listed
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
DIN IEC 68-2-27
DIN IEC 68-2-6
