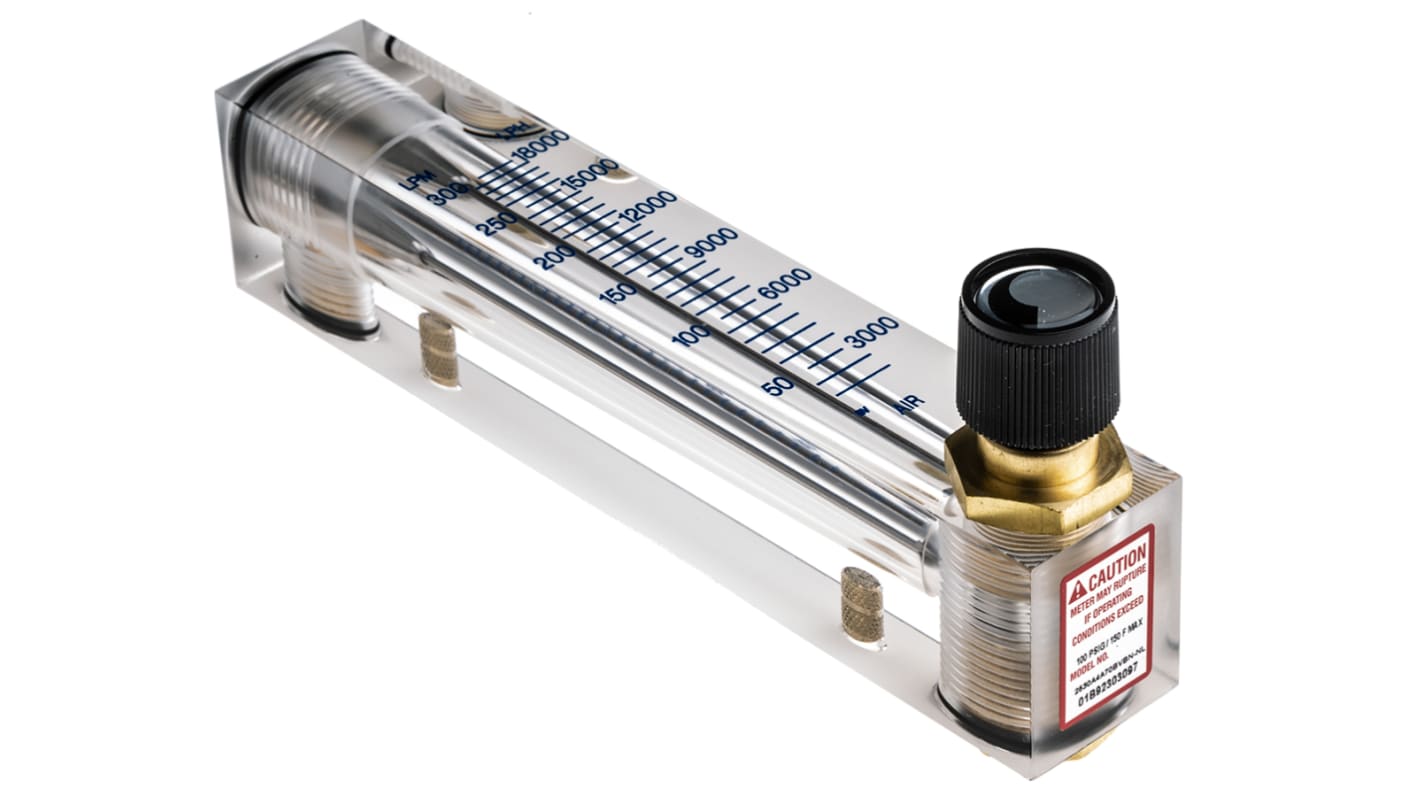

Key Instruments FR4500 Series Variable Area Flow Meter for Gas, 30 L/min Min, 280 L/min Max
- N° de stock RS:
- 361-0177
- Référence fabricant:
- 2530A4A70BVBN
- Fabricant:
- Key Instruments
Sous-total (1 unité)*
304,70 €
(TVA exclue)
368,69 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- Plus 7 unité(s) expédiée(s) à partir du 15 décembre 2025
- Plus 25 unité(s) expédiée(s) à partir du 15 décembre 2025
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 304,70 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 361-0177
- Référence fabricant:
- 2530A4A70BVBN
- Fabricant:
- Key Instruments
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Key Instruments | |
| Media Monitored | Gas | |
| Device Type | Variable Area | |
| Minimum Flow Rate | 30 L/min | |
| Maximum Flow Rate | 280 L/min | |
| Pipe Diameter Range | 1/4 in | |
| Connection Type | 1/4 NPT Female | |
| Maximum Pressure | 6.89bar | |
| Material | Acrylic | |
| Maximum Media Temperature | +65°C | |
| Series | FR4500 | |
| Maximum Operating Temperature | +65°C | |
| Sélectionner tout | ||
|---|---|---|
Marque Key Instruments | ||
Media Monitored Gas | ||
Device Type Variable Area | ||
Minimum Flow Rate 30 L/min | ||
Maximum Flow Rate 280 L/min | ||
Pipe Diameter Range 1/4 in | ||
Connection Type 1/4 NPT Female | ||
Maximum Pressure 6.89bar | ||
Material Acrylic | ||
Maximum Media Temperature +65°C | ||
Series FR4500 | ||
Maximum Operating Temperature +65°C | ||
Statut RoHS : Exempté
- Pays d'origine :
- US
Key Instruments Flow Meter
The Key Instruments FR4500 series variable area flow meter measures the gas flow rate of 30L/min to 280L/min. It is a standard, precision-machined, acrylic, flow meter for liquids or gases. It also has direct reading air and water scales. The FR4500 flow meters can be configured with a control valve on the inlet or no valve at all. The O-rings are provided as Buna-N.
Note:
Mounting screws are required (available separately).
Note:
Mounting screws are required (available separately).
Features and Benefits
Pipe diameter range is 1/4 in
Connection type is 1/4 NPT female
Maximum operating pressure is 6.89bar
Maximum operating temperature is 65°C
It is use for long term trouble free operation
Easy-to-read scales
Threaded brass inserts for quick installation
Easy disassembly and assembly for maintenance
Durable, 1-piece, clear, acrylic construction
Stable, easy-to-read float
Superior quality
Mounting inserts 10-32 UNF x 3/8in
It has maximum pressure 100PSIG
Connection type is 1/4 NPT female
Maximum operating pressure is 6.89bar
Maximum operating temperature is 65°C
It is use for long term trouble free operation
Easy-to-read scales
Threaded brass inserts for quick installation
Easy disassembly and assembly for maintenance
Durable, 1-piece, clear, acrylic construction
Stable, easy-to-read float
Superior quality
Mounting inserts 10-32 UNF x 3/8in
It has maximum pressure 100PSIG
Applications
Compatible with most gases and fluids
