SICK FTMG Series Gas Flow Meter for Compressed Air, 9.4L/min Min, 2824L/min Max

N° de stock RS:: 210-1286
Référence fabricant:: FTMG-ESD20AXO
Fabricant:: SICK

Sous-total (1 unité)*

1 015,96 €

(TVA exclue)

1 229,31 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

Stocké-e par le fabricant

Prêt à être expédié à partir du 02 novembre 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	1 015,96 €

*Prix donné à titre indicatif

Notre gamme de produits Better World vous facilite l'accès à des produits plus durables et plus fiables.

En savoir plus sur les produits RS Better World

N° de stock RS:: 210-1286
Référence fabricant:: FTMG-ESD20AXO
Fabricant:: SICK

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	SICK
	Product Type	Flow Meter
	Media Monitored	Compressed Air
	Device Type	Gas
	Minimum Flow Rate	9.4L/min
	Maximum Flow Rate	2824L/min
	Housing Material	Stainless Steel
	Connection Type	G 3/4 Male
	Maximum Pressure	16bar
	IP Rating	IP65, IP67
	Minimum Media Temperature	-20°C
	Maximum Media Temperature	60°C
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	60°C
	Series	FTMG
	Standards/Approvals	CE
	Better World Product	Yes
	Better World Claim	Saves Energy

	Sélectionner tout
	Marque SICK
	Product Type Flow Meter
	Media Monitored Compressed Air
	Device Type Gas
	Minimum Flow Rate 9.4L/min
	Maximum Flow Rate 2824L/min
	Housing Material Stainless Steel
	Connection Type G 3/4 Male
	Maximum Pressure 16bar
	IP Rating IP65, IP67
	Minimum Media Temperature -20°C
	Maximum Media Temperature 60°C
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 60°C
	Series FTMG
	Standards/Approvals CE
	Better World Product Yes
	Better World Claim Saves Energy

Pays d'origine :: DE

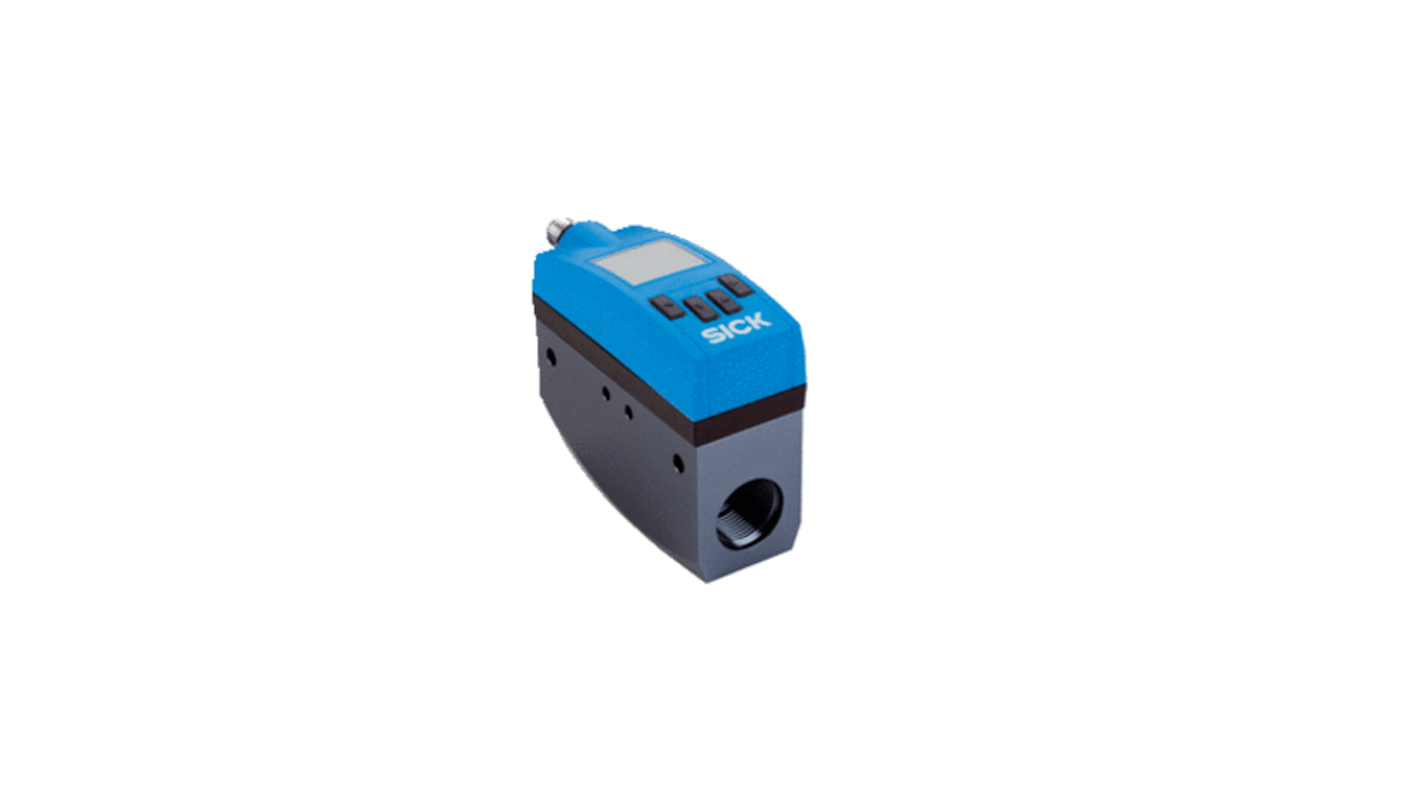

SICK FTMG Series Flow Switch, 9.4 L/min Minimum Flow Rate, 20mm Pipe Diameter Range - FTMG-ESD20AXO

This flow switch is an indispensable device for gas monitoring applications, designed to effectively measure the flow of various gases including air, argon, nitrogen, and carbon dioxide. Constructed from robust stainless steel for wetted parts, it accommodates pipe diameters of 20mm and operates within a flow rate range of 9.4 to 2824 l/min. The switch utilises Power Over Ethernet for its supply voltage, making it both efficient and versatile for industrial use.

Features & Benefits

• High-pressure capabilities support a maximum pressure of 16 bar
• Gas flow measurement is precise and reliable across various media
• The stainless steel flow switch ensures durability in harsh environments
• Current rating at 5W ensures efficient performance

Applications

• Utilised in industrial for Air flow monitoring
• Ideal for precision gas flow measurement in manufacturing processes
• Suitable for automation systems requiring reliable flow detection
• Effective in HVAC systems for monitoring gas levels

What is the maximum and minimum flow rate supported by the device?

The device supports a minimum flow rate of 9.4 l/min and a maximum flow rate of 2824 l/min, making it suitable for a wide range of flow monitoring tasks.

How does the power supply operation work for this switch?

It operates using Power Over Ethernet, allowing for seamless integration into existing network infrastructures while eliminating the need for additional power supplies.

What materials are used in the construction of this flow switch?

The wetted parts of the switch are MADE from stainless steel, providing enhanced durability and resistance to various gases in industrial environments.

Can this flow switch function in extreme temperature conditions?

Yes, it operates effectively within a temperature range of -20°C to +60°C, making it suitable for diverse applications in varying climates.

What type of connection does the device use for installation?

It features a G3/4 male connection, ensuring straightforward installation while being compatible with standard piping systems.
