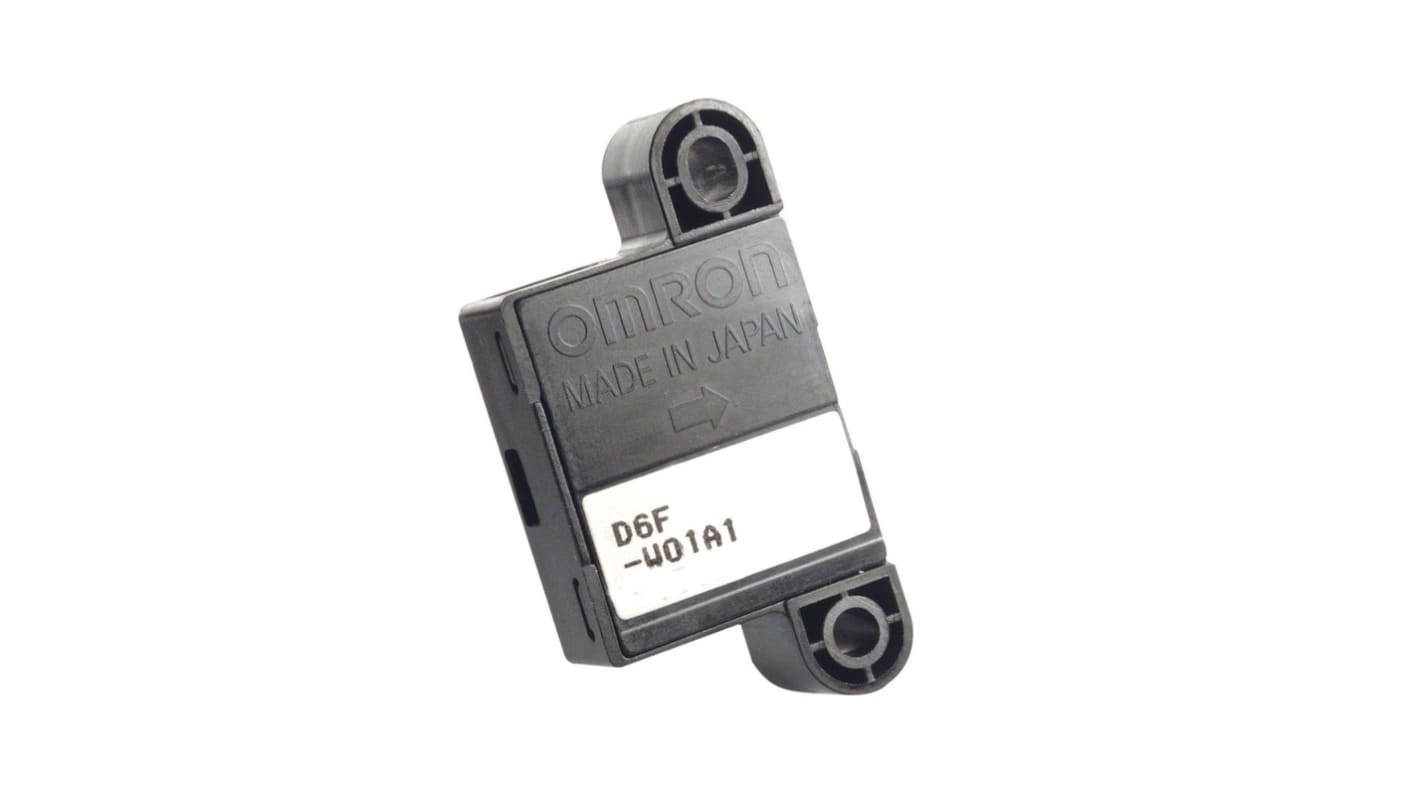

Omron D6F Series Air Flow Sensor for Air, 1L/min Min, 10L/min Max
- N° de stock RS:
- 204-3928
- Référence fabricant:
- D6FW10A1
- Fabricant:
- Omron
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 204-3928
- Référence fabricant:
- D6FW10A1
- Fabricant:
- Omron
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Omron | |
| Product Type | Flow Sensor | |
| Media Monitored | Air | |
| Device Type | Air | |
| Minimum Flow Rate | 1L/min | |
| Housing Material | Polyphenylene Sulphide | |
| Maximum Flow Rate | 10L/min | |
| Connection Type | Three-Pin Connector | |
| Maximum Pressure | 50kPa | |
| Maximum Supply Voltage | 26.4V dc | |
| IP Rating | IP40 | |
| Minimum Media Temperature | -10°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Media Temperature | 60°C | |
| Maximum Operating Temperature | 80°C | |
| Series | D6F | |
| Standards/Approvals | No | |
| Current Rating | 15mA | |
| Sélectionner tout | ||
|---|---|---|
Marque Omron | ||
Product Type Flow Sensor | ||
Media Monitored Air | ||
Device Type Air | ||
Minimum Flow Rate 1L/min | ||
Housing Material Polyphenylene Sulphide | ||
Maximum Flow Rate 10L/min | ||
Connection Type Three-Pin Connector | ||
Maximum Pressure 50kPa | ||
Maximum Supply Voltage 26.4V dc | ||
IP Rating IP40 | ||
Minimum Media Temperature -10°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Media Temperature 60°C | ||
Maximum Operating Temperature 80°C | ||
Series D6F | ||
Standards/Approvals No | ||
Current Rating 15mA | ||
- Pays d'origine :
- JP
The Omron Electronic Components flow sensor with high accuracy works with 10.8 to 26.4VDC power supply and 15 mA maximum current consumption. This sensor has three pin electrical connector with polyphenylene sulfide case.
35 to 85% operating humidity
-40 to 80°C storage temperature
IEC IP40 degree of protection
-10 to 60°C operating temperature
