Parker UCC Easiflow Series Flow Meter 1L/min to 15L/min, Female, 1 in, BSP Parallel
- N° de stock RS:
- 186-0049
- Référence fabricant:
- EF7731110220
- Fabricant:
- Parker UCC
Sous-total (1 unité)*
376,03 €
(TVA exclue)
455,00 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 6 unité(s) prête(s) à être expédiée(s)
- Plus 15 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 376,03 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 186-0049
- Référence fabricant:
- EF7731110220
- Fabricant:
- Parker UCC
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Parker UCC | |
| Product Type | Flow Meter | |
| Connection Thread Size | 1 in | |
| Connection Thread Standard | BSP Parallel | |
| Connection Gender | Female | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Series | Easiflow | |
| Wetted Materials | Borosilicate Glass, Nitrile, Stainless Steel, Cone Acetal | |
| Maximum Flow Rate | 15L/min | |
| Minimum Flow Rate | 1L/min | |
| Sélectionner tout | ||
|---|---|---|
Marque Parker UCC | ||
Product Type Flow Meter | ||
Connection Thread Size 1 in | ||
Connection Thread Standard BSP Parallel | ||
Connection Gender Female | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Series Easiflow | ||
Wetted Materials Borosilicate Glass, Nitrile, Stainless Steel, Cone Acetal | ||
Maximum Flow Rate 15L/min | ||
Minimum Flow Rate 1L/min | ||
Statut RoHS : Exempté
- Pays d'origine :
- GB

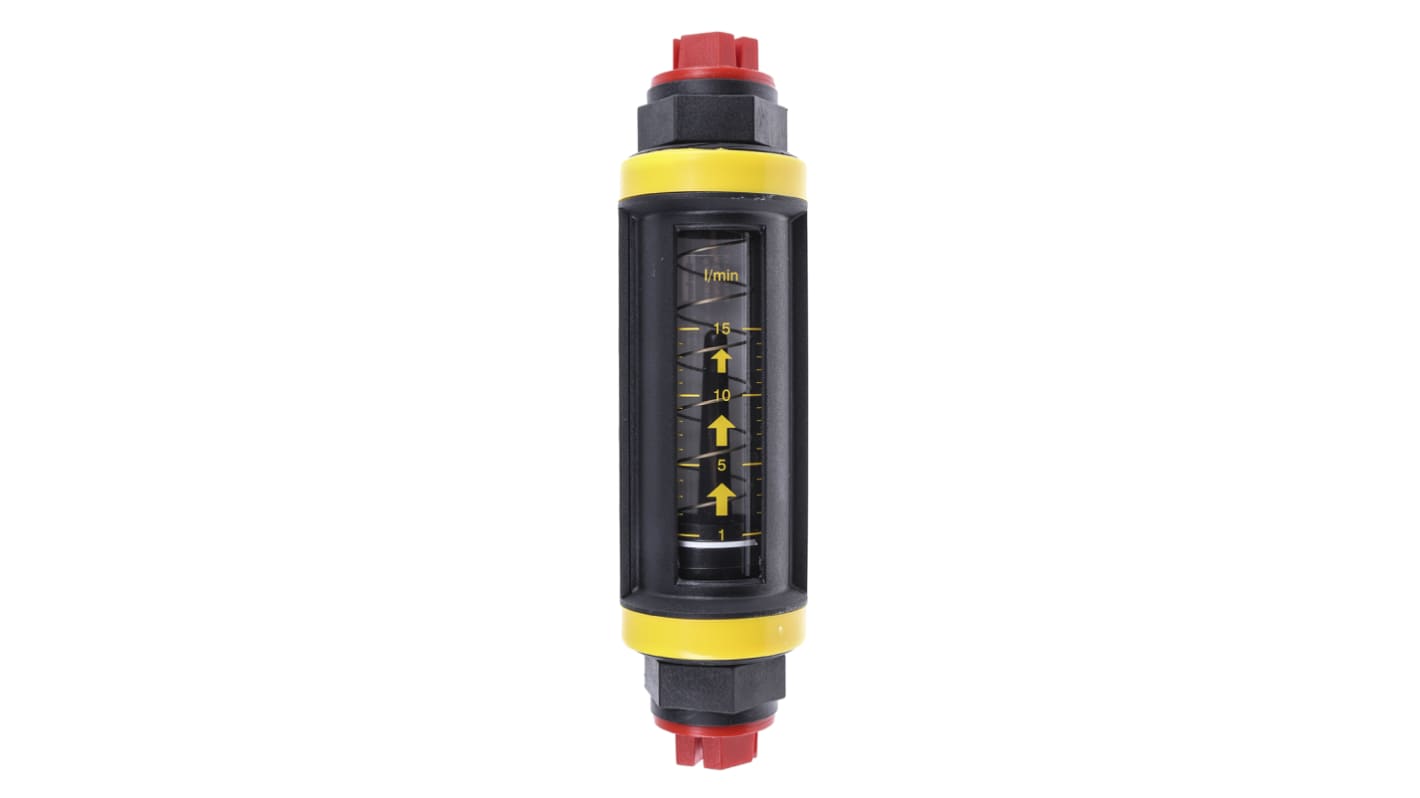

Parker UCC Flowmeter
The Parker UCC Easiflow series variable area flowmeter measures a liquid flow rate of 1L/min to 15L/min. This flowmeter enabled with an AC-DC switch. It is suitable for controlling valves or pump motors or for activating alarm signals. This indicator has an operating voltage of 300VAC/DC.
Inclusions:
2 x DIN standard sockets complete with plugs.
The Parker UCC Easiflow series variable area flowmeter measures the liquid flow rate of 1L/min to 15L/min.
Features and Benefits
Pipe diameter range is 1in
Connection type is 1 BSP female
Maximum operating pressure is 10bar
Maximum operating temperature is 60°C
Media monitored is liquid
It works in any plane
Pressures up to 10bar
Accuracy ±5% FSD
Repeatability ±1% FSD
Fully adjustable flow rate signalling
Plant and equipment protection
