Festo SFAB Series Flow Sensor Flow Sensor, 0L/min Min, 1000L/min Max
- N° de stock RS:
- 175-2140
- Référence fabricant:
- SFAB-1000U-HQ10-2SA-M12
- Fabricant:
- Festo
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau en stock, il n'est plus vendu par le fabricant.
- N° de stock RS:
- 175-2140
- Référence fabricant:
- SFAB-1000U-HQ10-2SA-M12
- Fabricant:
- Festo
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Festo | |
| Product Type | Flow Sensor | |
| Device Type | Flow Sensor | |
| Minimum Flow Rate | 0L/min | |
| Maximum Flow Rate | 1000L/min | |
| Housing Material | Reinforced Polyamide | |
| Connection Type | M12 | |
| Maximum Pressure | 10bar | |
| IP Rating | IP65 | |
| Maximum Supply Voltage | 10V | |
| Minimum Media Temperature | 0°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Media Temperature | 50°C | |
| Maximum Operating Temperature | 50°C | |
| Series | SFAB | |
| Standards/Approvals | DIN 1343, ATEX, ISO 6358, FDA, EN 60947, ISO 2533 | |
| Current Rating | 100mA | |
| Model Number | 565405 | |
| Sélectionner tout | ||
|---|---|---|
Marque Festo | ||
Product Type Flow Sensor | ||
Device Type Flow Sensor | ||
Minimum Flow Rate 0L/min | ||
Maximum Flow Rate 1000L/min | ||
Housing Material Reinforced Polyamide | ||
Connection Type M12 | ||
Maximum Pressure 10bar | ||
IP Rating IP65 | ||
Maximum Supply Voltage 10V | ||
Minimum Media Temperature 0°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Media Temperature 50°C | ||
Maximum Operating Temperature 50°C | ||
Series SFAB | ||
Standards/Approvals DIN 1343, ATEX, ISO 6358, FDA, EN 60947, ISO 2533 | ||
Current Rating 100mA | ||
Model Number 565405 | ||
Statut RoHS : Exempté
- Pays d'origine :
- BG

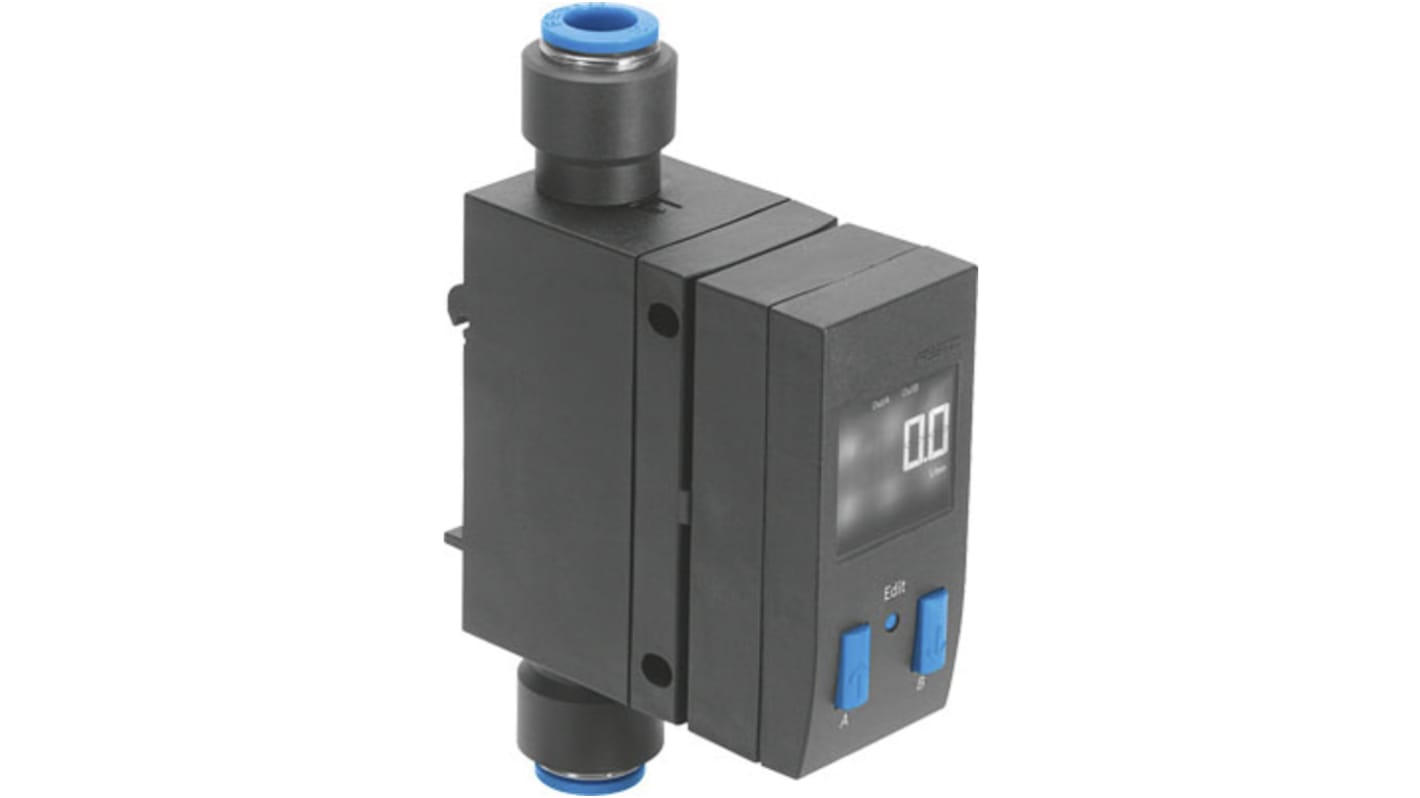

Festo Flow Controller, 0 to 10 Bar Operating Pressure Range, 10 to 1,000L/min Flow Measurement Range - SFAB-1000U-HQ10-2SA-M12
To make sure your pneumatic processes work swimmingly, install this flow controller from Festo. It tracks your system's flow rate, air volume and temperature, so you can be confident that everything's running smoothly. Keeping up with demanding airflows is no trouble for this device, as it handles rates between 10 and 1,000L/min. The versatile unit works with compressed air and nitrogen, so it's your go-to tool for flow inspection. Tracking down issues is easy with this sensor, as its backlit LCD display changes colour when your flow rate strays from the preset range.
Features & Benefits
• IP65-rated, so it's fully protected against dust and low-pressure water jets to suit harsh industrial conditions
• Simple two-button controls make for convenient range adjustment
• Mounts to walls and rails for easy installation in busy systems
• Reinforced PA housing to help limit the risk of damage from impacts
Applications
• Spray painting
• Rail industry
• Food production
Can I rotate the display on this flow controller?
Yes, the unit's display rotates up to 270°, so you can adjust it to suit the needs of your setup.
