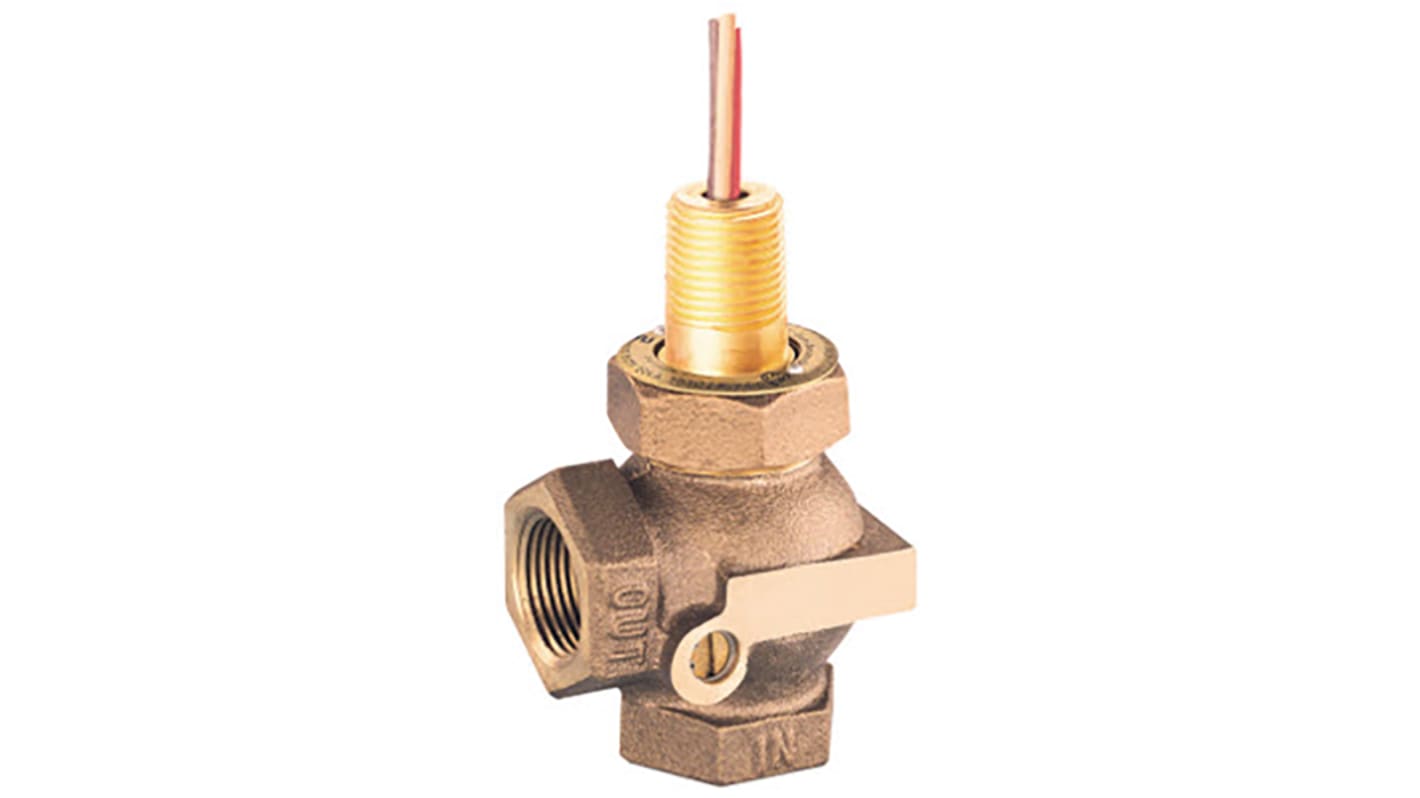

Gems Sensors FS-400 Series Adjustable Shuttle Flow Sensor for Liquid, 0.75 gal/min Min, 4 gal/min Max
- N° de stock RS:
- 122-8438
- Référence fabricant:
- 26600
- Fabricant:
- Gems Sensors
Sous-total (1 unité)*
350,57 €
(TVA exclue)
424,19 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- 2 unité(s) expédiée(s) à partir du 26 janvier 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 350,57 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 122-8438
- Référence fabricant:
- 26600
- Fabricant:
- Gems Sensors
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Gems Sensors | |
| Media Monitored | Liquid | |
| Device Type | Adjustable Shuttle | |
| Minimum Flow Rate | 0.75 gal/min | |
| Maximum Flow Rate | 4 gal/min | |
| Connection Type | 3/4 NPT Female | |
| Maximum Pressure | 27.6bar | |
| Material | Bronze | |
| Minimum Operating Temperature | -29°C | |
| Maximum Operating Temperature | +82.2°C | |
| Series | FS-400 | |
| Sélectionner tout | ||
|---|---|---|
Marque Gems Sensors | ||
Media Monitored Liquid | ||
Device Type Adjustable Shuttle | ||
Minimum Flow Rate 0.75 gal/min | ||
Maximum Flow Rate 4 gal/min | ||
Connection Type 3/4 NPT Female | ||
Maximum Pressure 27.6bar | ||
Material Bronze | ||
Minimum Operating Temperature -29°C | ||
Maximum Operating Temperature +82.2°C | ||
Series FS-400 | ||
- Pays d'origine :
- US
FS-400 Series Flow Switch
Provides accurate flow detection in water and oil with 1% repeatability. Flow settings on the adjustable version can be easily changed without disassembly. A shuttle by-pass vane inside the housing is controlled externally using an ordinary flat-blade screwdriver. These switches are rigorously tested and constructed of non-corrosive materials resistant to shock and vibration. Suitable for triggering alarms on interlocking shutdown circuitry when flow rate is improper to protect bearings, gears and cooling systems.
Features and Benefits
• Flow Rate Settings: 3 LPM to 38 LPM (Fixed) 3 LPM to 53 LPM (Adjustable)
• Port Size: 3/4"
• Primary Construction Material: Bronze
• Setting Type: Fixed or Adjustable available
Product Application Information
• Protect Bearings or Gears: oil separators, fuel systems, pumps, compressors, presses
• Electronics or Machinery: heat exchangers, semiconductor manufacturing equipment, induction furnaces, radio transmitters
• Process Systems: water filtration and reverse osmosis, chlorinations, de-icers, sterilisers, evaporators
