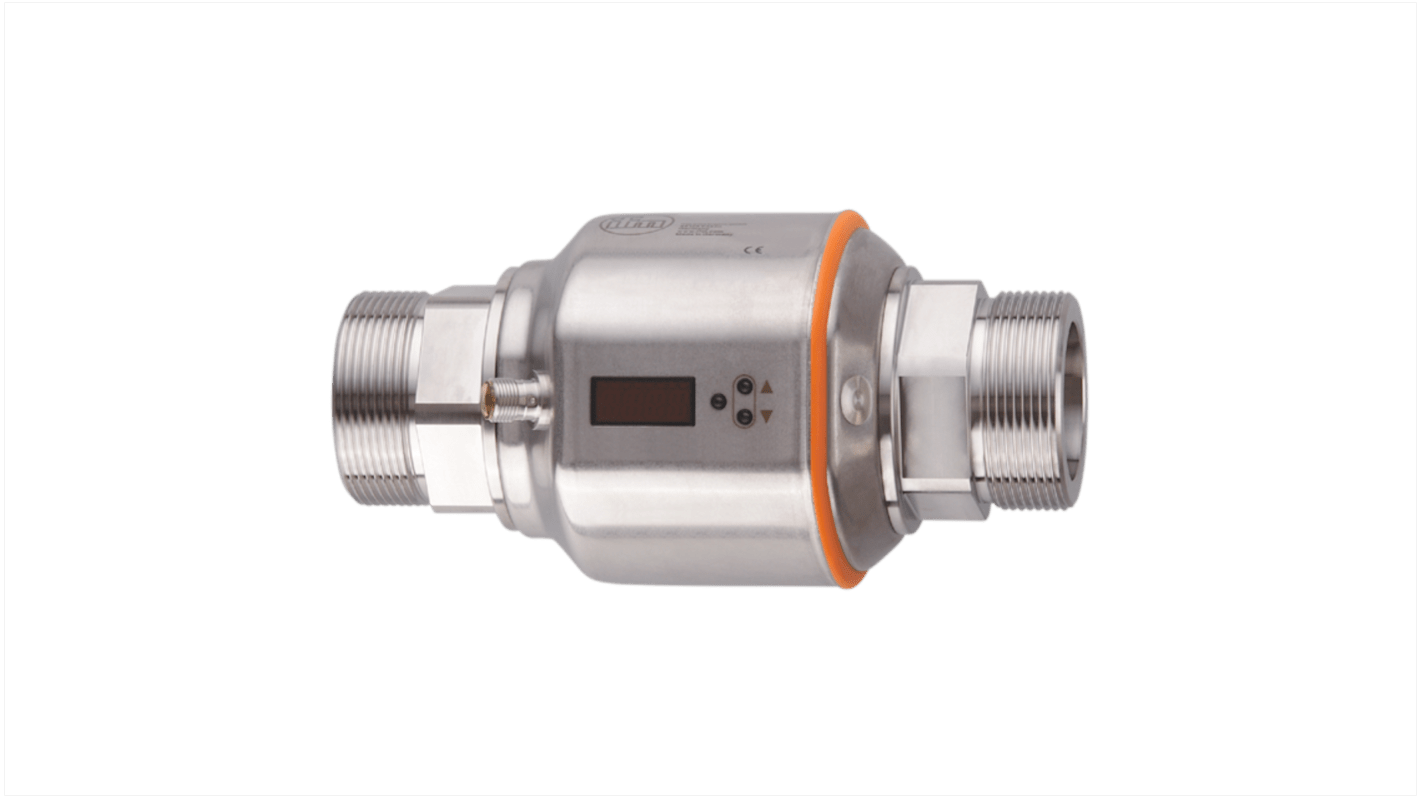

ifm electronic SM Series Magnetic Inductive Flow Meter Flow Sensor for Liquid, 5L/min Min, 300L/min Max
- N° de stock RS:
- 191-384
- Référence fabricant:
- SM9000
- Fabricant:
- ifm electronic
Sous-total (1 unité)*
956,33 €
(TVA exclue)
1 157,16 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 17 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 956,33 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 191-384
- Référence fabricant:
- SM9000
- Fabricant:
- ifm electronic
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ifm electronic | |
| Product Type | Flow Sensor | |
| Media Monitored | Liquid | |
| Device Type | Magnetic Inductive Flow Meter | |
| Minimum Flow Rate | 5L/min | |
| Housing Material | 316L Stainless Steel | |
| Maximum Flow Rate | 300L/min | |
| Maximum Pressure | 16bar | |
| Minimum Media Temperature | -10°C | |
| Maximum Supply Voltage | 32V | |
| IP Rating | IP65, IP67 | |
| Maximum Media Temperature | 70°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | DIN EN 60068-2-6, DIN EN 60947-5-9, UL, DIN EN 60068-2-27 | |
| Series | SM | |
| Current Rating | 20mA | |
| Sélectionner tout | ||
|---|---|---|
Marque ifm electronic | ||
Product Type Flow Sensor | ||
Media Monitored Liquid | ||
Device Type Magnetic Inductive Flow Meter | ||
Minimum Flow Rate 5L/min | ||
Housing Material 316L Stainless Steel | ||
Maximum Flow Rate 300L/min | ||
Maximum Pressure 16bar | ||
Minimum Media Temperature -10°C | ||
Maximum Supply Voltage 32V | ||
IP Rating IP65, IP67 | ||
Maximum Media Temperature 70°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals DIN EN 60068-2-6, DIN EN 60947-5-9, UL, DIN EN 60068-2-27 | ||
Series SM | ||
Current Rating 20mA | ||
- Pays d'origine :
- DE
The ifm electronic Magnetic Inductive Flow Meter is engineered for industrial use, offering advanced features such as gold-plated contacts for increased durability. It supports functions including totalization and empty pipe detection. Designed for conductive liquids like water and hydrous media. The device operates on a voltage range of 18 to 32 V DC and consumes less than 150 mA of current. It includes reverse polarity protection and a power on delay time of 5 seconds. Utilizing a magnetic inductive measuring principle, the meter features two digital outputs and one analogue output.
Precise measurement of flow
Precise measurement of consumption and medium temperature
High accuracy
High repeatability and measurement dynamics
Precise empty pipe detection
With switching output
Analogue output and pulse output
Clearly visible 4-digit LED display
Convenient operation via buttons or parameter setting via IO-Link
