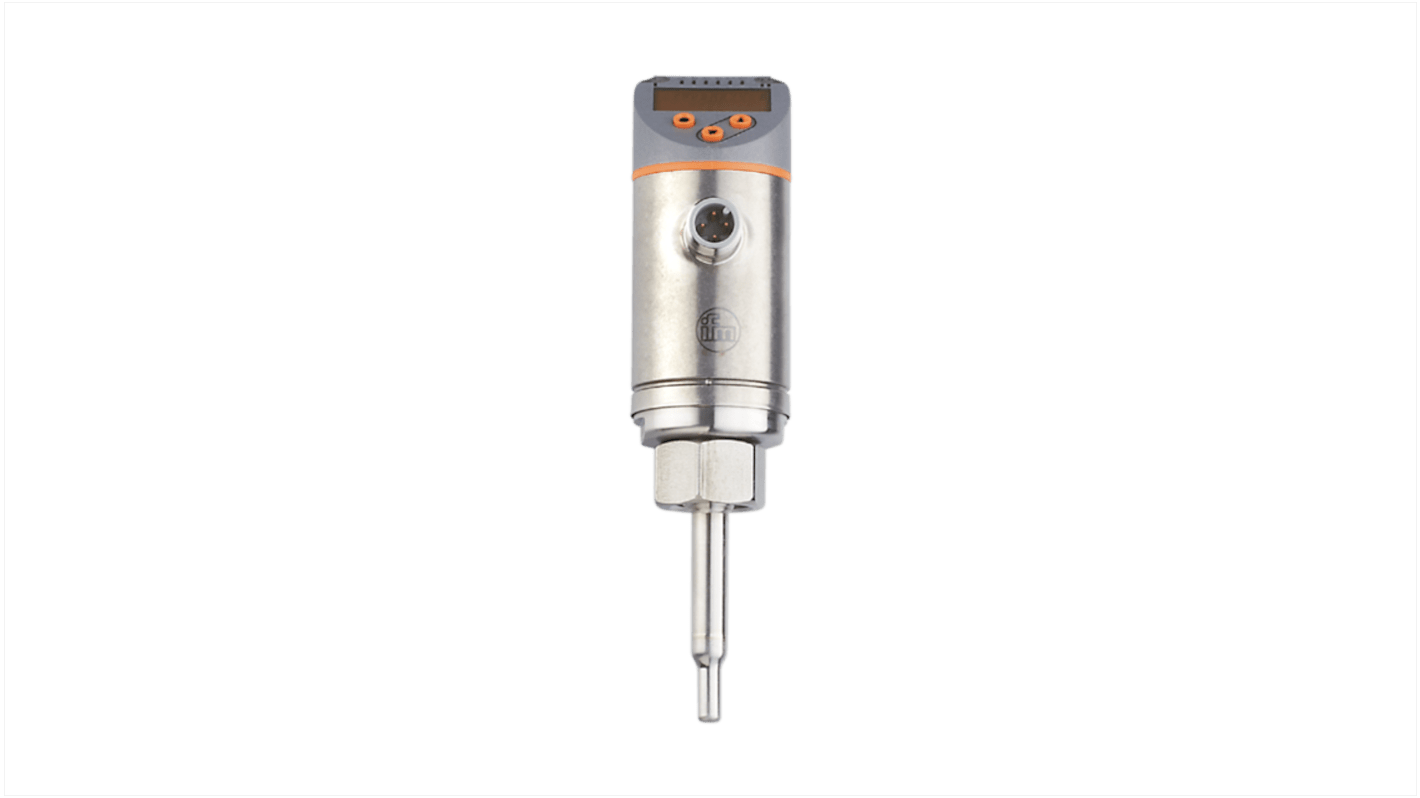

ifm electronic SA Series Flow Sensor Flow Sensor for Glycol Solutions, Air, Oil, Water
- N° de stock RS:
- 191-270
- Référence fabricant:
- SA5004
- Fabricant:
- ifm electronic
Sous-total (1 unité)*
398,03 €
(TVA exclue)
481,62 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 1 unité(s) prête(s) à être expédiée(s)
- Plus 2 unité(s) expédiée(s) à partir du 16 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 398,03 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 191-270
- Référence fabricant:
- SA5004
- Fabricant:
- ifm electronic
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ifm electronic | |
| Product Type | Flow Sensor | |
| Media Monitored | Glycol Solutions, Air, Oil, Water | |
| Device Type | Flow Sensor | |
| Housing Material | 316L Stainless Steel | |
| Connection Type | Pipe Connection, Electrical | |
| Maximum Pressure | 100bar | |
| Minimum Media Temperature | -20°C | |
| IP Rating | IP65, IP67 | |
| Maximum Supply Voltage | 30V | |
| Maximum Media Temperature | 90°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Series | SA | |
| Standards/Approvals | DIN EN 60947-5-9, UL, DIN EN 60068-2-27, DIN EN 60068-2-6 | |
| Current Rating | 20mA | |
| Sélectionner tout | ||
|---|---|---|
Marque ifm electronic | ||
Product Type Flow Sensor | ||
Media Monitored Glycol Solutions, Air, Oil, Water | ||
Device Type Flow Sensor | ||
Housing Material 316L Stainless Steel | ||
Connection Type Pipe Connection, Electrical | ||
Maximum Pressure 100bar | ||
Minimum Media Temperature -20°C | ||
IP Rating IP65, IP67 | ||
Maximum Supply Voltage 30V | ||
Maximum Media Temperature 90°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Series SA | ||
Standards/Approvals DIN EN 60947-5-9, UL, DIN EN 60068-2-27, DIN EN 60068-2-6 | ||
Current Rating 20mA | ||
- Pays d'origine :
- DE
The ifm electronic Flow Sensor offers advanced capabilities with two analogue outputs, each providing a scalable current signal in the range of 4 to 20 mA and supporting a maximum load of 350 Ohm. It features robust short-circuit and overload protection. The sensor includes a 45 mm probe and operates in multiple modes relative, absolutely liquid, and absolutely gaseous, with the factory setting in relative mode. It can measure temperatures from -20 to 90°C with a resolution of 0.2°C and allows for precise analogue start and end points within specified ranges.
Measurement of flow and temperature at the same time
Optimised for water
Optimised for oils and air
Clearly visible 4-digit LED display
With two scalable analogue outputs
The process connection can be rotated for optimum alignment
