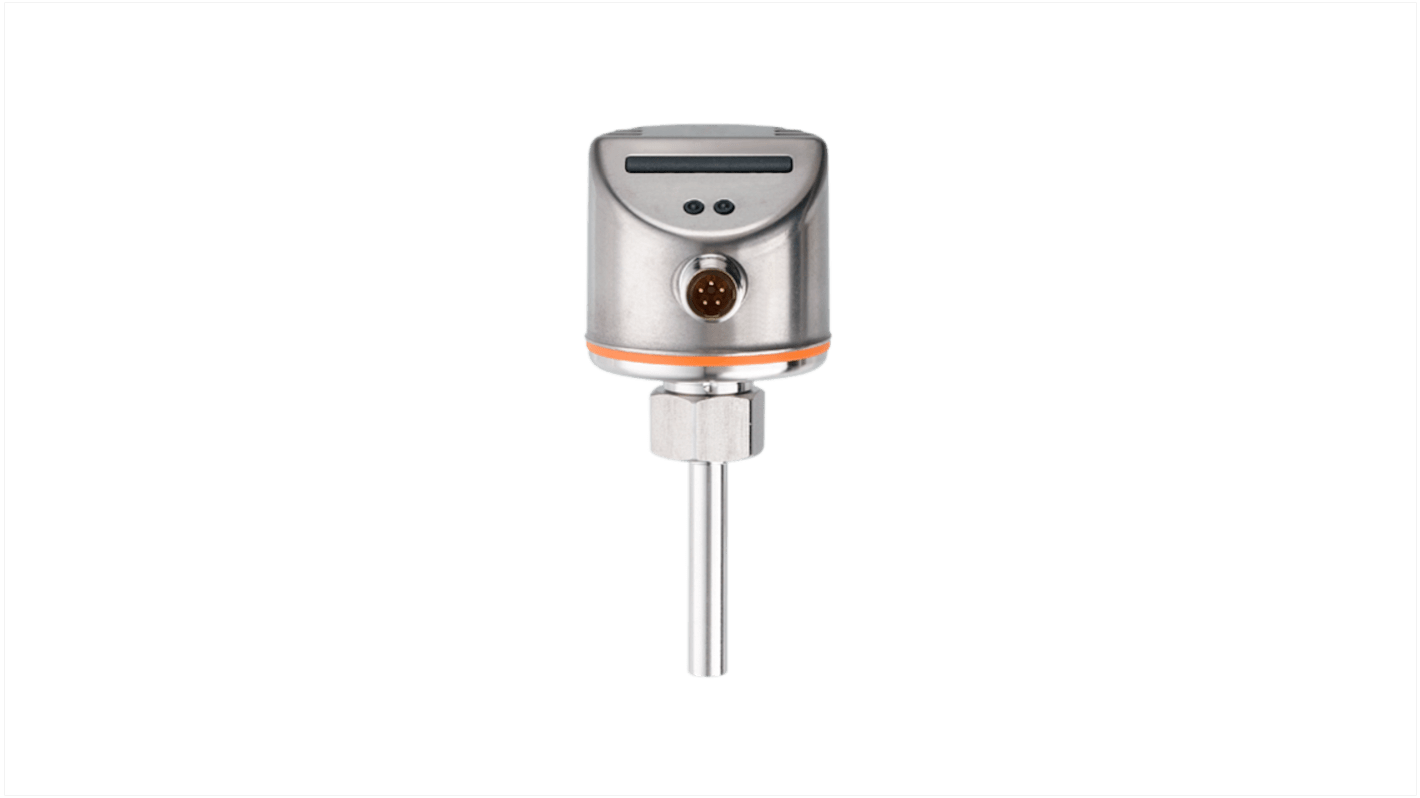

ifm electronic SI Series Flow Monitor Flow Sensor for Liquid
- N° de stock RS:
- 191-236
- Numéro d'article Distrelec:
- 137-59-564
- Référence fabricant:
- SI5006
- Fabricant:
- ifm electronic
Sous-total (1 unité)*
396,86 €
(TVA exclue)
480,20 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 17 unité(s) prête(s) à être expédiée(s)
- Plus 10 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 396,86 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 191-236
- Numéro d'article Distrelec:
- 137-59-564
- Référence fabricant:
- SI5006
- Fabricant:
- ifm electronic
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ifm electronic | |
| Product Type | Flow Sensor | |
| Media Monitored | Liquid | |
| Device Type | Flow Monitor | |
| Housing Material | 316L Stainless Steel | |
| Maximum Pressure | 300bar | |
| Minimum Media Temperature | -25°C | |
| Maximum Supply Voltage | 240V | |
| IP Rating | IP67, IP65 | |
| Maximum Media Temperature | 80°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 100°C | |
| Series | SI | |
| Standards/Approvals | UL, UKCA, DIN EN 61000-6-2, CE | |
| Current Rating | 20mA | |
| Sélectionner tout | ||
|---|---|---|
Marque ifm electronic | ||
Product Type Flow Sensor | ||
Media Monitored Liquid | ||
Device Type Flow Monitor | ||
Housing Material 316L Stainless Steel | ||
Maximum Pressure 300bar | ||
Minimum Media Temperature -25°C | ||
Maximum Supply Voltage 240V | ||
IP Rating IP67, IP65 | ||
Maximum Media Temperature 80°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 100°C | ||
Series SI | ||
Standards/Approvals UL, UKCA, DIN EN 61000-6-2, CE | ||
Current Rating 20mA | ||
- Pays d'origine :
- RO
The ifm electronic Flow Monitor is a robust relay operated device designed for precise flow measurement in various applications. It includes a single digital output with a relay function, configurable for either normally open or normally closed operation. The relay supports up to 20 million mechanical switching cycles and 100,000 electrical switching cycles at a 3 A load. However, it does not offer short-circuit or overload protection. The response time is adjustable from 1 to 10 seconds for both liquids and gases. The monitor protected with an IP 67 rating. The switch point is easily adjusted using a pushbutton.
Reliable monitoring of liquids and gases in pipes
Variable process connection using adapters
Easy setting of the switch points for quick set-up
Robust stainless steel housing for use in harsh industrial environments
LED bar graph for indication of switch point and flow
