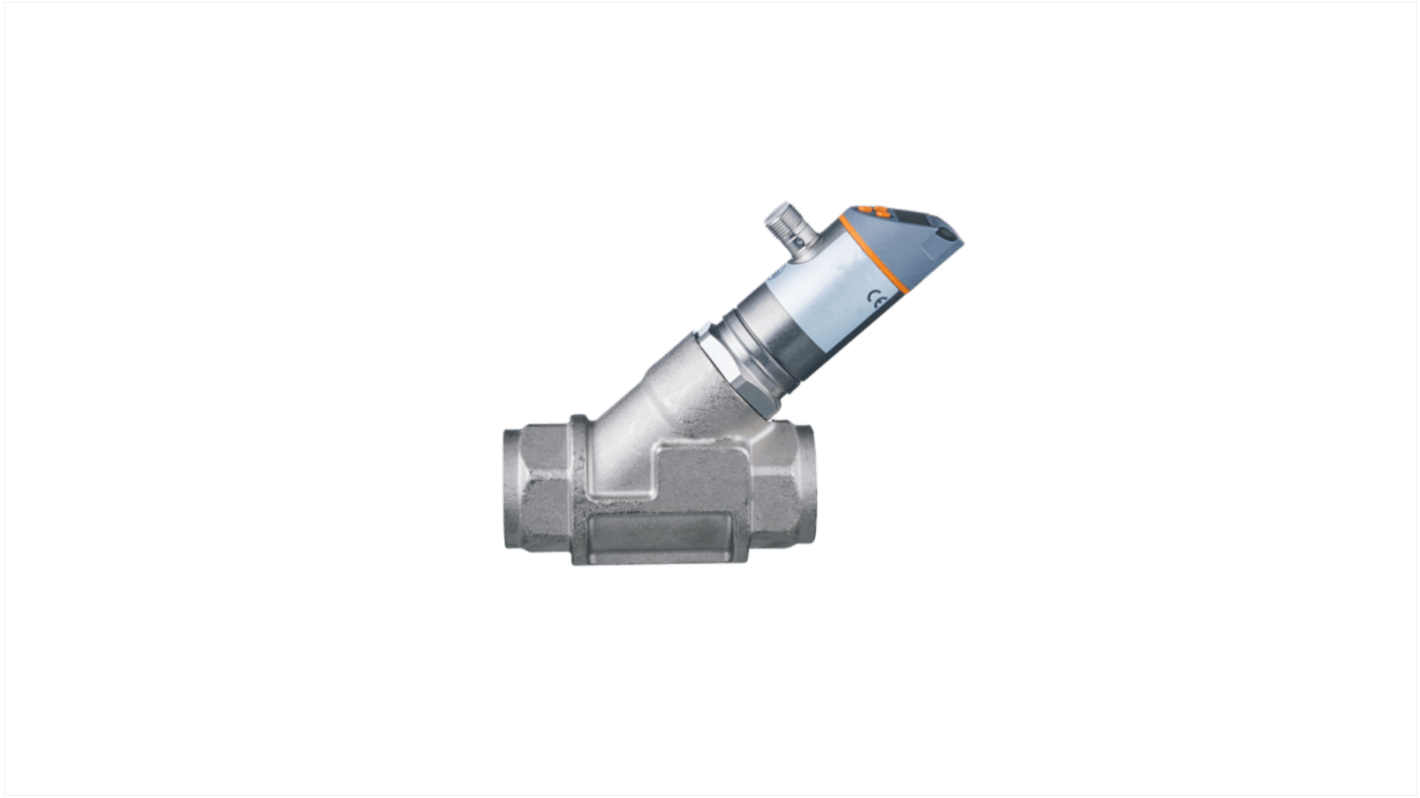

ifm electronic SV Series Flow Sensor for Liquid, 2 l/min Min, 100 L/min Max

Voir l’ensemble des Flow Sensors

Sous-total (1 unité)*

428,34 €

(TVA exclue)

518,29 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 5 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +428,34 €

*Prix donné à titre indicatif

N° de stock RS:
191-212
Référence fabricant:
SBG246
Fabricant:
ifm electronic
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

ifm electronic

Media Monitored

Liquid

Device Type

Flow Meter

Minimum Flow Rate

2 l/min

Maximum Flow Rate

100 L/min

Supply Voltage

30 V

Series

SV

Pays d'origine :
DE
The ifm electronic Flow Meter with Integrated Backflow Prevention and Display is a robust industrial instrument designed for accurate and reliable flow measurement across a variety of liquids. This meter is particularly suited for applications involving water, glycol solutions, and coolants, and is also compatible with oils of varying viscosities. Equipped with gold plated contacts, the flow meter ensures enhanced durability and long term performance. It operates on a voltage range of 18 to 30 V DC with a current consumption of less than 50 mA. The device features reverse polarity protection for added reliability and safety. The integrated display allows for real time monitoring of flow rates, while the backflow prevention feature enhances operational efficiency by preventing reverse flow.

Precise detection of flow and medium temperature
Suitable for water and coolants
Suitable for oil and glycol solutions thanks to integrated measurement graphs
Reliable backflow prevention with very fast response time
With switching output
Analogue output or frequency output and IO-Link
Clearly visible LED display with red or green colour change
Convenient operation via buttons or parameter setting via IO-Link
