ifm electronic SV Series Flow Sensor for Coolants, Glycol Solutions, Water, 1 l/min Min, 20 L/min Max
- N° de stock RS:
- 191-194
- Référence fabricant:
- SV4200
- Fabricant:
- ifm electronic
Sous-total (1 unité)*
389,10 €
(TVA exclue)
470,81 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 2 unité(s) prête(s) à être expédiée(s)
- Plus 5 unité(s) expédiée(s) à partir du 25 décembre 2025
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 389,10 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 191-194
- Référence fabricant:
- SV4200
- Fabricant:
- ifm electronic
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ifm electronic | |
| Media Monitored | Coolants, Glycol Solutions, Water | |
| Device Type | Flow Meter | |
| Minimum Flow Rate | 1 l/min | |
| Maximum Flow Rate | 20 L/min | |
| Supply Voltage | 30 | |
| Series | SV | |
| Sélectionner tout | ||
|---|---|---|
Marque ifm electronic | ||
Media Monitored Coolants, Glycol Solutions, Water | ||
Device Type Flow Meter | ||
Minimum Flow Rate 1 l/min | ||
Maximum Flow Rate 20 L/min | ||
Supply Voltage 30 | ||
Series SV | ||
- Pays d'origine :
- US

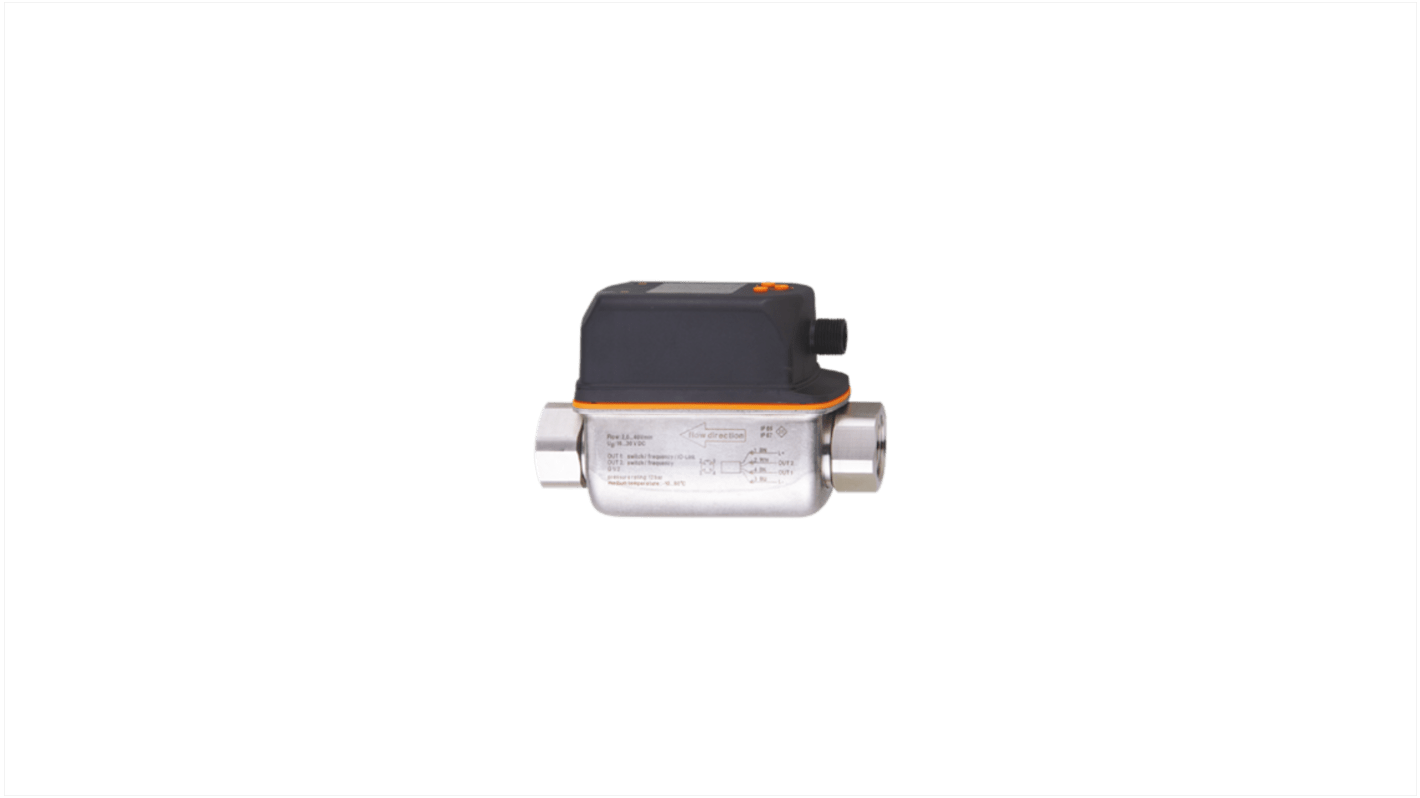

The ifm electronic Vortex Flow Meter with display features gold plated contacts to ensure robust performance. Designed for media such as water, glycol solutions, and coolants, it operates effectively across a temperature range of -10 to 90°C and can handle pressures up to 12 bar. For applications in colder environments up to 40°C, the maximum allowable working pressure is 3.9 bar. The flow meter operates with a voltage range of 18 to 30V DC and has a low current consumption of under 30mA. Its electrical design includes reverse polarity protection, a power on delay of less than 3 seconds, and a protection class of III. The meter features two digital outputs with configurable functions including switching and frequency signals, and supports PNP/NPN configurations with short circuit and overload protection.
Reliable detection of flow and medium temperature
With switching output or frequency output and IO-Link
Display can be rotated for optimum alignment
Clearly readable colour display with red or green colour change
Suitable for water
Suitable for deionised water and cooling water
Convenient operation via buttons or parameter setting via IO-Link
With switching output or frequency output and IO-Link
Display can be rotated for optimum alignment
Clearly readable colour display with red or green colour change
Suitable for water
Suitable for deionised water and cooling water
Convenient operation via buttons or parameter setting via IO-Link
