Lovato LVF Series Float Switch, 10 m Cable, 250 V ac ac Max
- N° de stock RS:
- 224-7395
- Référence fabricant:
- LVFSN1W10
- Fabricant:
- Lovato
Sous-total (1 unité)*
56,88 €
(TVA exclue)
68,82 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 25 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 56,88 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 224-7395
- Référence fabricant:
- LVFSN1W10
- Fabricant:
- Lovato
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Lovato | |
| Product Type | Float Switch | |
| Housing Material | Polypropylene | |
| Cable Length | 10m | |
| Maximum Operating Temperature | 50°C | |
| Maximum AC Voltage | 250V ac | |
| Maximum Current | 8A | |
| Maximum Pressure | 3bar | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Series | LVF | |
| Sélectionner tout | ||
|---|---|---|
Marque Lovato | ||
Product Type Float Switch | ||
Housing Material Polypropylene | ||
Cable Length 10m | ||
Maximum Operating Temperature 50°C | ||
Maximum AC Voltage 250V ac | ||
Maximum Current 8A | ||
Maximum Pressure 3bar | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
Series LVF | ||
- Pays d'origine :
- IT

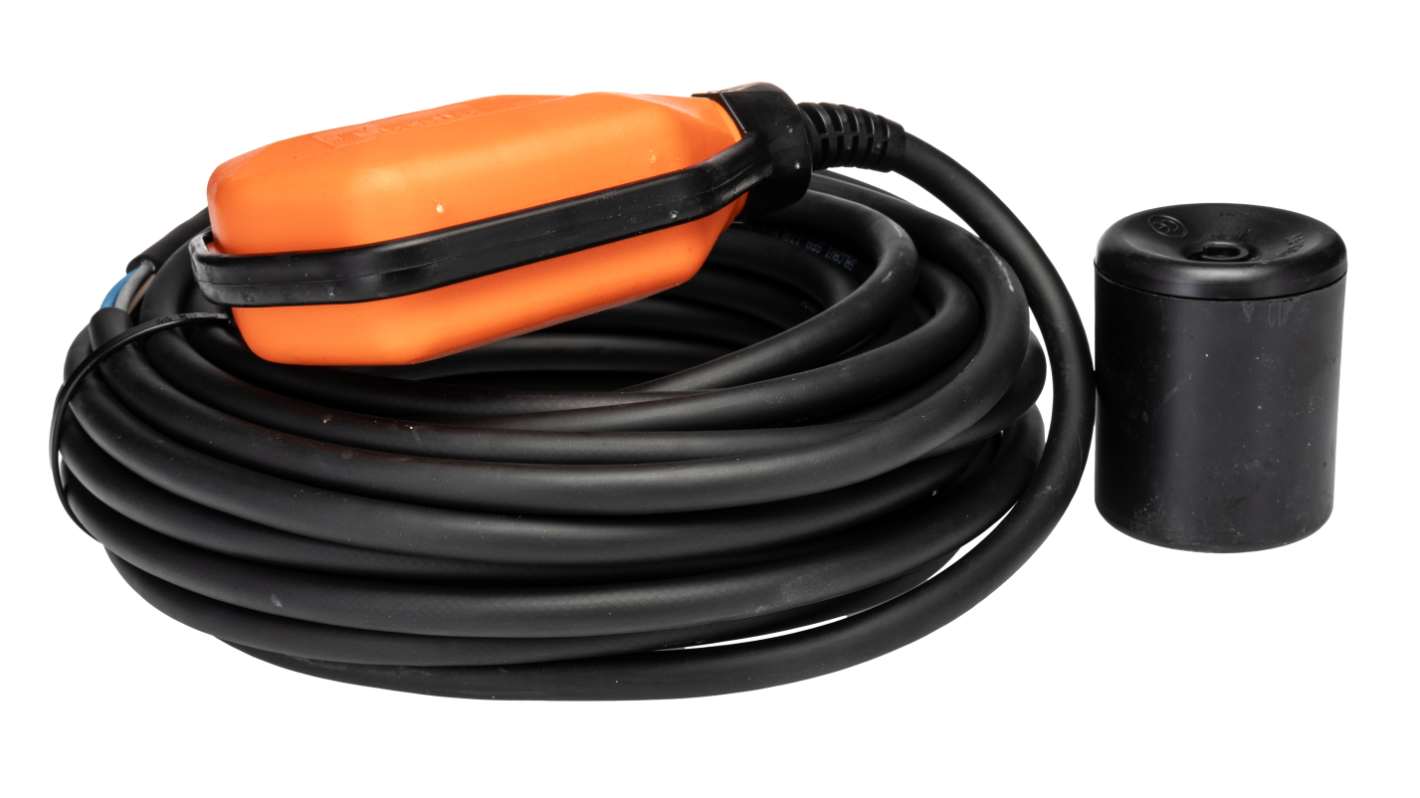

Lovato Float Switch, Polypropylene Body, 10m Cable Length - LVFSN1W10
This float switch by Lovato is designed for efficient emptying or filling functions in applications such as grey water management. With a 10m neoprene cable and a sturdy polypropylene body, this switch is reliable and durable. The device offers a 45° activation angle and a single changeover contact configuration for seamless operation.
Features & Benefits
• Polypropylene body material for durability
• 10m neoprene cable length for versatile installation
• 45° activation angle for precise function
• 1 changeover contact arrangement for efficient control
• IP68 degree of protection for reliability in different environments
Applications
• Suitable for grey water management systems
• Ideal for liquid level control in industrial settings
Will it work with different types of liquids?
This float switch is designed to function effectively with various types of liquids, making it versatile for different applications.
Can it withstand high temperatures?
The float switch is capable of operating in temperatures up to +50°C, ensuring reliable performance even in challenging conditions.
Is it easy to install?
With a 10m neoprene cable and simple design, this float switch can be easily installed in different scenarios for quick setup and operation.
