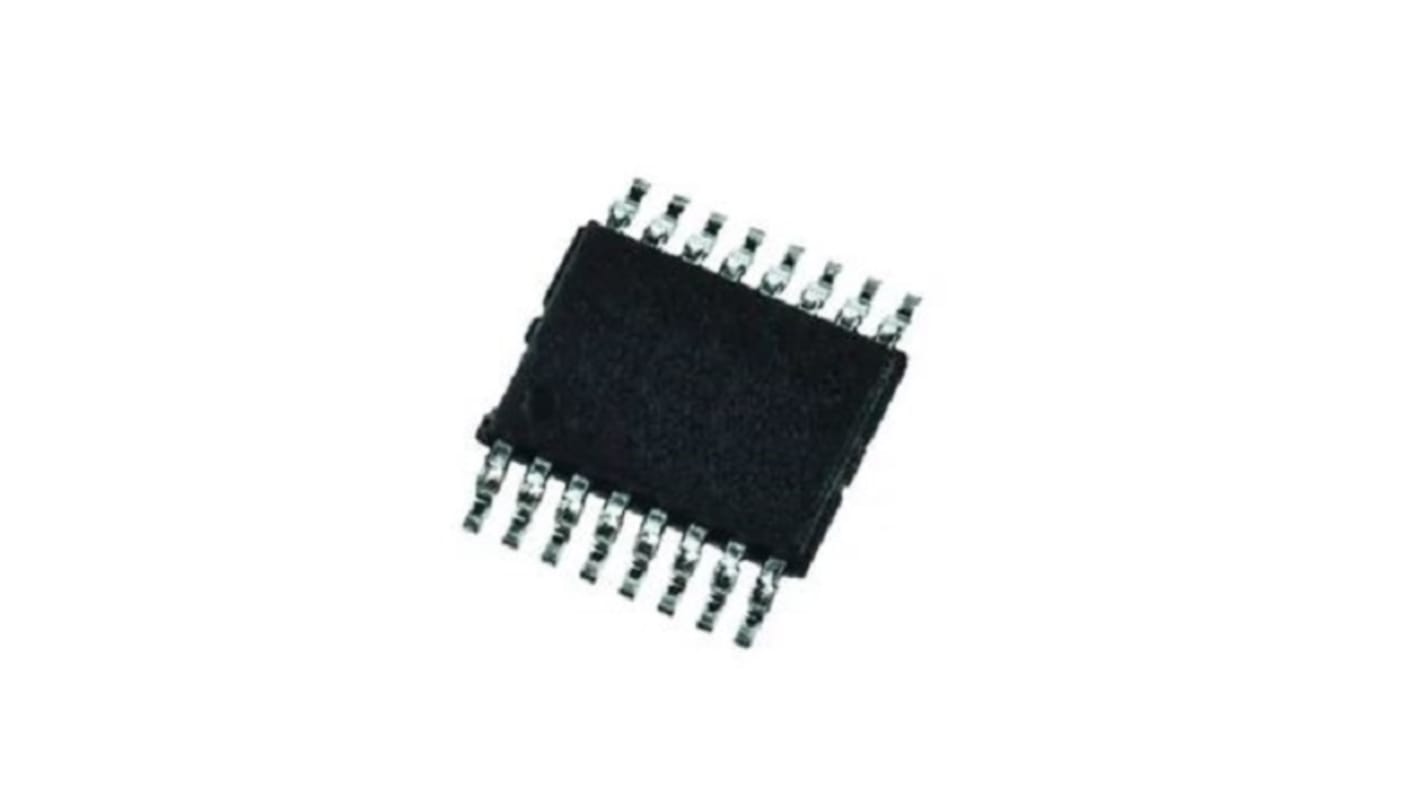

Infineon NOR 512 MB SPI Flash Memory 16-Pin SOIC, S25FL512SAGMFI010

N° de stock RS:: 273-5408
Référence fabricant:: S25FL512SAGMFI010
Fabricant:: Infineon

Infineon NOR 512 MB SPI Flash Memory 16-Pin SOIC, S25FL512SAGMFI010

Offre groupée disponible

Consulter les options de prix de gros

Sous-total (1 plateau de 240 unités)*

1 696,80 €

(TVA exclue)

2 052,00 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

Temporairement en rupture de stock

Expédition à partir du 21 janvier 2027

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité	le plateau*
240 - 240	7,07 €	1 696,80 €
480 +	6,837 €	1 640,88 €

*Prix donné à titre indicatif

N° de stock RS:: 273-5408
Référence fabricant:: S25FL512SAGMFI010
Fabricant:: Infineon

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Infineon
	Product Type	Flash Memory
	Memory Size	512MB
	Interface Type	SPI
	Package Type	SOIC
	Pin Count	16
	Organisation	64MB
	Maximum Clock Frequency	133MHz
	Cell Type	NOR
	Maximum Supply Voltage	3.6V
	Minimum Supply Voltage	2.7V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+85°C
	Standards/Approvals	RoHS
	Series	S25FL512S
	Automotive Standard	AEC-Q100 Grade 1

	Sélectionner tout
	Marque Infineon
	Product Type Flash Memory
	Memory Size 512MB
	Interface Type SPI
	Package Type SOIC
	Pin Count 16
	Organisation 64MB
	Maximum Clock Frequency 133MHz
	Cell Type NOR
	Maximum Supply Voltage 3.6V
	Minimum Supply Voltage 2.7V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +85°C
	Standards/Approvals RoHS
	Series S25FL512S
	Automotive Standard AEC-Q100 Grade 1

Datasheet - S25FL512SAGMFI010

Infineon S25FL512S Series Flash Memory, 512MB Memory Size, 2.7 to 3.6V Supply Voltage - S25FL512SAGMFI010

This flash memory provides serial NOR storage for embedded systems that require fast, Compact non-volatile memory. It operates across a typical automotive and industrial power range and is intended for applications where high-speed serial access and broad temperature endurance are required. The device is supplied in a 16-pin SOIC package and connects via an SPI interface, making it straightforward to integrate into board-level designs.

Features and Benefits:

• Operates from 2.7 to 3.6V supply enabling flexible power rails
• Supports clock rates up to 133MHz for Faster data transfer
• 512MB capacity in 64MB organisation for dense code storage
• NOR cell architecture providing execute-in-place capability
• Automotive grade construction meeting AEC-Q100 Grade 1 standards

Applications

• Suitable for automotive control units requiring robust memory
• Ideal for firmware storage in industrial controllers
• Used with embedded processors requiring SPI boot capability
• Can be used for data logging in temperature-extreme environments
• Suitable for serial programme storage in consumer appliances

What temperature range can it reliably operate within?

It functions across an industrial span from -40°C to +85°C.

Which package and pin count are provided for PCB integration?

It is supplied in a SOIC package with 16 pins for straightforward mounting.

What Interface is used for communication and programming?

Communication is handled via an SPI serial Interface for synchronous transfers.

What kind of flash cell technology does it use and why is that relevant?

It uses NOR-type cells which support random read accesses suitable for code execution.

Is there any environmental directive conformity noted for the device?

The component is RoHS-compliant, conforming to restricted substance limits.
