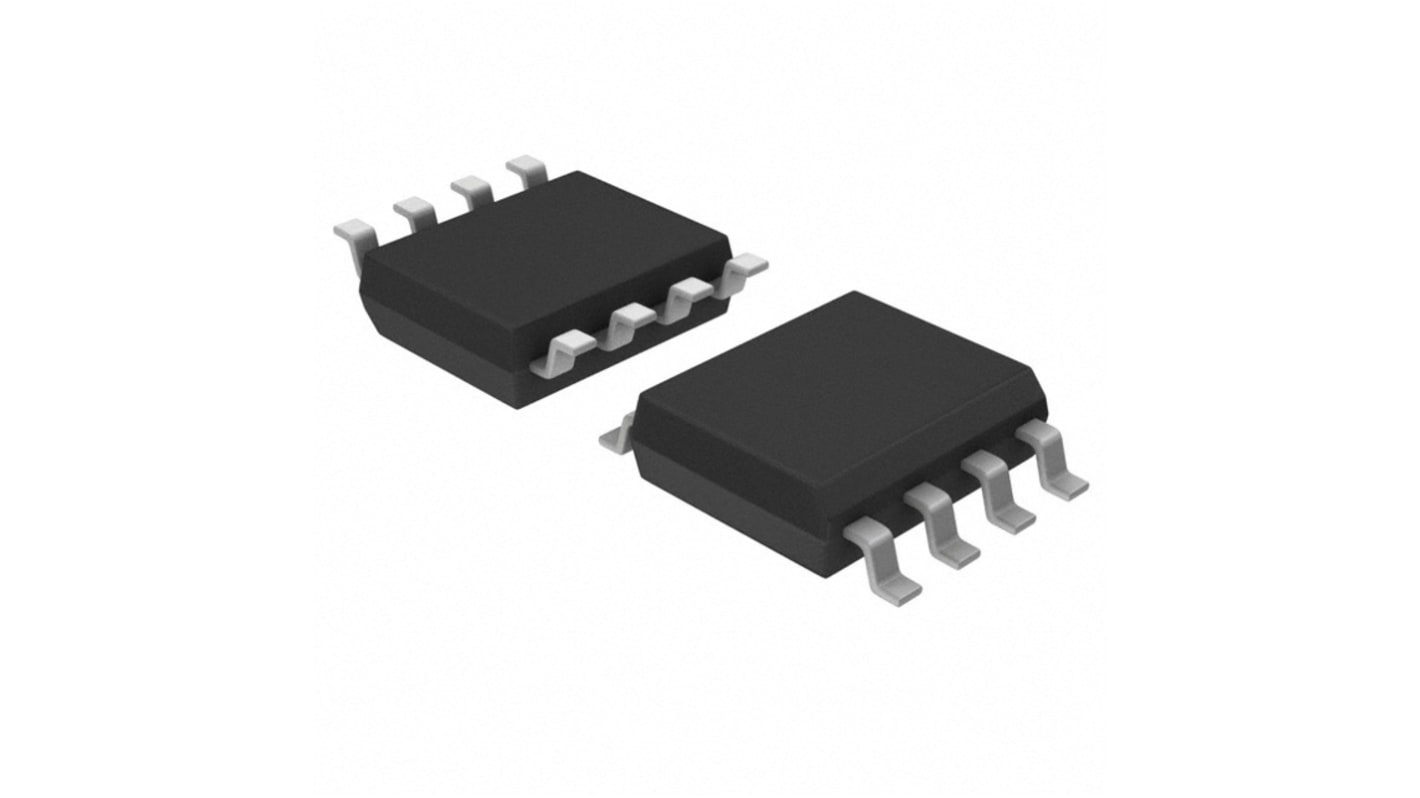

Alliance Memory NOR 16Mbit SPI Flash Memory 8-Pin SOIC, M45PE16-VMW6TG
- N° de stock RS:
- 230-6239
- Référence fabricant:
- M45PE16-VMW6TG
- Fabricant:
- Alliance Memory
Offre groupée disponible
Sous-total (1 paquet de 5 unités)*
8,70 €
(TVA exclue)
10,55 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- 1 330 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 5 - 45 | 1,74 € | 8,70 € |
| 50 - 95 | 1,546 € | 7,73 € |
| 100 - 245 | 1,39 € | 6,95 € |
| 250 - 495 | 1,358 € | 6,79 € |
| 500 + | 1,352 € | 6,76 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 230-6239
- Référence fabricant:
- M45PE16-VMW6TG
- Fabricant:
- Alliance Memory
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Alliance Memory | |
| Memory Size | 16Mbit | |
| Interface Type | SPI | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Organisation | 2M x 8 | |
| Mounting Type | Surface Mount | |
| Cell Type | NOR | |
| Minimum Operating Supply Voltage | 2.7 V | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Block Organisation | Symmetrical | |
| Length | 5mm | |
| Height | 1.25mm | |
| Width | 4mm | |
| Dimensions | 5 x 4 x 1.25mm | |
| Maximum Operating Temperature | +85 °C | |
| Series | M45PE | |
| Number of Words | 2MB | |
| Minimum Operating Temperature | -40 °C | |
| Number of Bits per Word | 8bit | |
| Maximum Random Access Time | 8ns | |
| Sélectionner tout | ||
|---|---|---|
Marque Alliance Memory | ||
Memory Size 16Mbit | ||
Interface Type SPI | ||
Package Type SOIC | ||
Pin Count 8 | ||
Organisation 2M x 8 | ||
Mounting Type Surface Mount | ||
Cell Type NOR | ||
Minimum Operating Supply Voltage 2.7 V | ||
Maximum Operating Supply Voltage 3.6 V | ||
Block Organisation Symmetrical | ||
Length 5mm | ||
Height 1.25mm | ||
Width 4mm | ||
Dimensions 5 x 4 x 1.25mm | ||
Maximum Operating Temperature +85 °C | ||
Series M45PE | ||
Number of Words 2MB | ||
Minimum Operating Temperature -40 °C | ||
Number of Bits per Word 8bit | ||
Maximum Random Access Time 8ns | ||
The Alliance Memory M45PE16 series is the NOR flash memory. The M45PE16 is a 16Mb (2Mb x 8) serial Flash memory device accessed by a high-speed, SPI-compatible bus. The memory can be written or programmed 1 to 256 bytes at a time using the PAGE WRITE or PAGE PROGRAM command. The page write command consists of an integrated page erase cycle followed by a page program cycle.
SPI bus-compatible serial interface
75 MHz clock frequency
Hardware write protection of the bottom memory area 64KB
Deep power-down mode
75 MHz clock frequency
Hardware write protection of the bottom memory area 64KB
Deep power-down mode
