Phoenix Contact 32 A EV Charging Cable 8 kW 6 m
- N° de stock RS:
- 133-736
- Référence fabricant:
- 1627760
- Fabricant:
- Phoenix Contact
Sous-total (1 unité)*
131,03 €
(TVA exclue)
158,55 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 15 mai 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 131,03 € |
*Prix donné à titre indicatif
Better World
Notre gamme de produits Better World vous facilite l'accès à des produits plus durables et plus fiables. Cliquez ici pour en savoir plus.
- N° de stock RS:
- 133-736
- Référence fabricant:
- 1627760
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | EV Charging Cable | |
| Cable Length | 6m | |
| Current Rating | 32 A | |
| Number of Phases | 1 | |
| Terminated/Unterminated | Terminated | |
| Voltage | 250 V | |
| IP Rating | IP44, IP54 | |
| Sheath Colour | Black | |
| Minimum Operating Temperature | -40°C | |
| Better World Claim | Renewable Energy Solution | |
| Outside Diameter | 12.8 mm | |
| Better World Product | Yes | |
| Armoured | Yes | |
| Power Rating | 8kW | |
| Insulation Material | Thermoplastic Elastomer | |
| Conductor Material | Silver | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type EV Charging Cable | ||
Cable Length 6m | ||
Current Rating 32 A | ||
Number of Phases 1 | ||
Terminated/Unterminated Terminated | ||
Voltage 250 V | ||
IP Rating IP44, IP54 | ||
Sheath Colour Black | ||
Minimum Operating Temperature -40°C | ||
Better World Claim Renewable Energy Solution | ||
Outside Diameter 12.8 mm | ||
Better World Product Yes | ||
Armoured Yes | ||
Power Rating 8kW | ||
Insulation Material Thermoplastic Elastomer | ||
Conductor Material Silver | ||
- Pays d'origine :
- PL

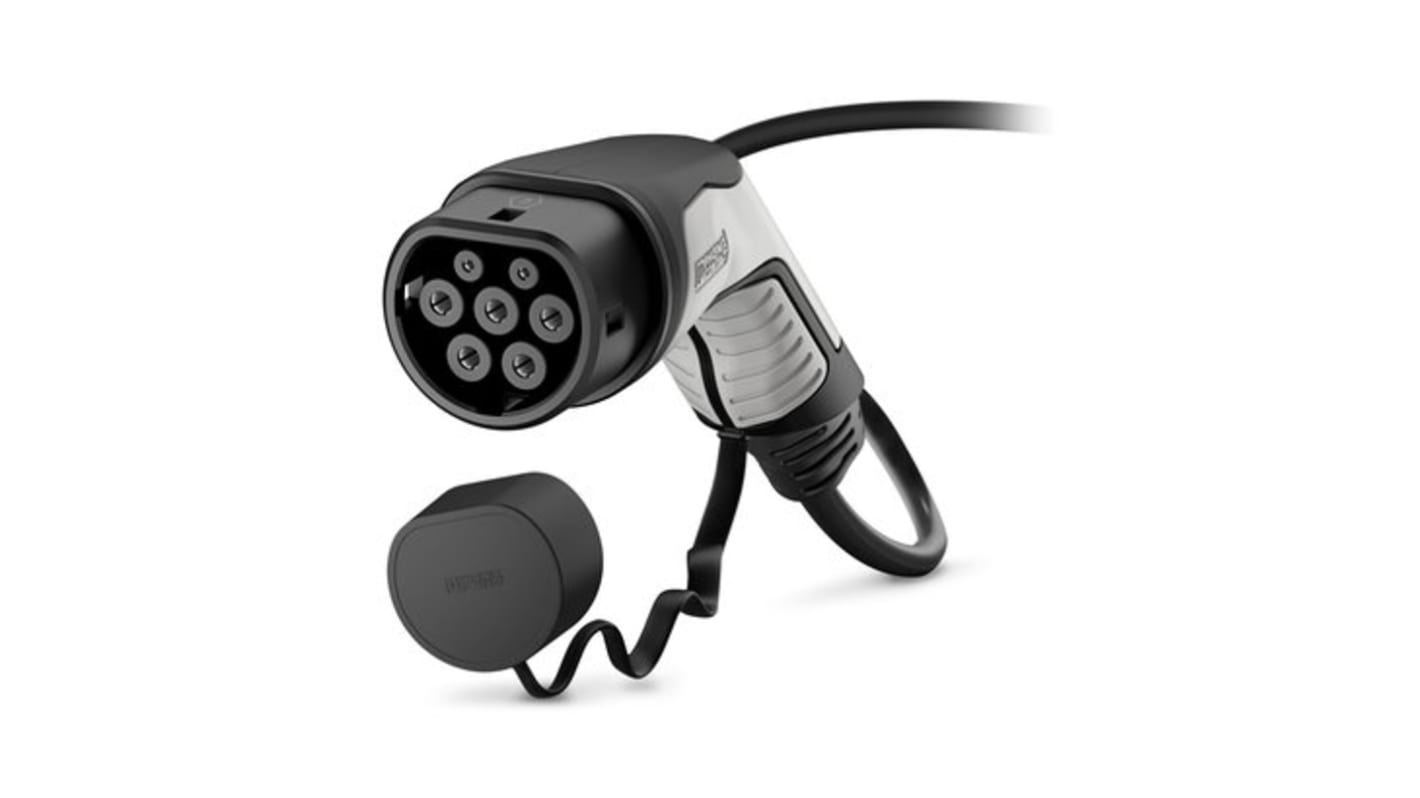

The Phoenix Contact AC charging cable is designed for charging electric vehicles with alternating current via type 2 vehicle charging inlets. It features a protective cap and a straight black cable with a length of 6m. The charging cable an handle a charging power of 8kW and a current of 32A. It has been tested in accordance with automotive standards LV124, LV214, and LV215-2, as well as EV Ready 37 requirements. The cable ensures convenient handling and is suitable for installation at charging stations for electro mobility .
Ergonomic design for convenient handling
Compatible with type 2 IEC 62196 2 standards
Tested in accordance with automotive standards and EV Ready 37 requirements
Longitudinal water tightness to prevent water ingress
Developed and produced in accordance with automotive and ISO standards
