Phoenix Contact 32 A EV Charging Cable 8 kW 5 m
- N° de stock RS:
- 133-730
- Référence fabricant:
- 1628126
- Fabricant:
- Phoenix Contact
Sous-total (1 unité)*
147,68 €
(TVA exclue)
178,69 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 13 mai 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 147,68 € |
*Prix donné à titre indicatif
Better World
Notre gamme de produits Better World vous facilite l'accès à des produits plus durables et plus fiables. Cliquez ici pour en savoir plus.
- N° de stock RS:
- 133-730
- Référence fabricant:
- 1628126
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | EV Charging Cable | |
| Cable Length | 5m | |
| Current Rating | 32 A | |
| Number of Phases | 1 | |
| Terminated/Unterminated | Terminated | |
| Voltage | 250 V | |
| IP Rating | IP44, IP54 | |
| Sheath Colour | Black | |
| Minimum Operating Temperature | -30°C | |
| Outside Diameter | 12.8 mm | |
| Better World Product | Yes | |
| Better World Claim | Renewable Energy Solution | |
| Conductor Material | Silver | |
| Armoured | Yes | |
| Power Rating | 8kW | |
| Insulation Material | Thermoplastic Elastomer | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type EV Charging Cable | ||
Cable Length 5m | ||
Current Rating 32 A | ||
Number of Phases 1 | ||
Terminated/Unterminated Terminated | ||
Voltage 250 V | ||
IP Rating IP44, IP54 | ||
Sheath Colour Black | ||
Minimum Operating Temperature -30°C | ||
Outside Diameter 12.8 mm | ||
Better World Product Yes | ||
Better World Claim Renewable Energy Solution | ||
Conductor Material Silver | ||
Armoured Yes | ||
Power Rating 8kW | ||
Insulation Material Thermoplastic Elastomer | ||
- Pays d'origine :
- PL

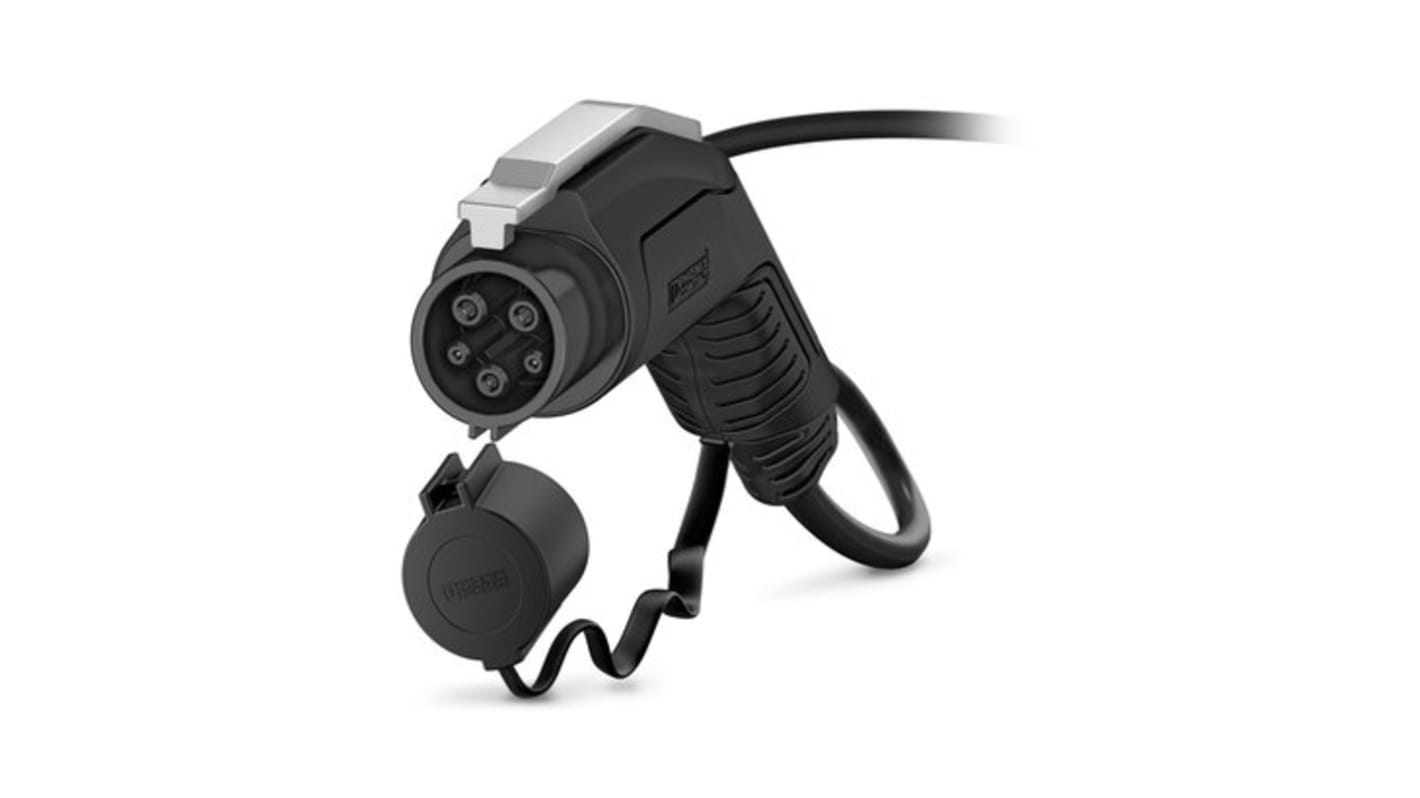

The Phoenix Contact AC charging cable is designed for charging electric vehicles with alternating current via type 1 vehicle charging inlets. It features a protective cap and a locking option for a padlock, providing convenience and security. The cable is 5 meters long and is straight, making it easy to use and install at charging stations for e-mobility. With its ergonomic and award-winning design, this charging cable offers a complete range of charging solutions.
Convenient handling due to ergonomic design and triple award winning design
Comes with a protective cap and a locking option for padlock for added security
Longitudinal water tightness reliably prevents water ingress
Developed and produced in accordance with automotive standards for high quality
Tested in accordance with automotive standards LV124 LV214 and LV215-2
Tested in accordance with EV Ready 37 requirements for optimal performance
Laser marked mating face in accordance with DIN EN 17186 for easy identification
