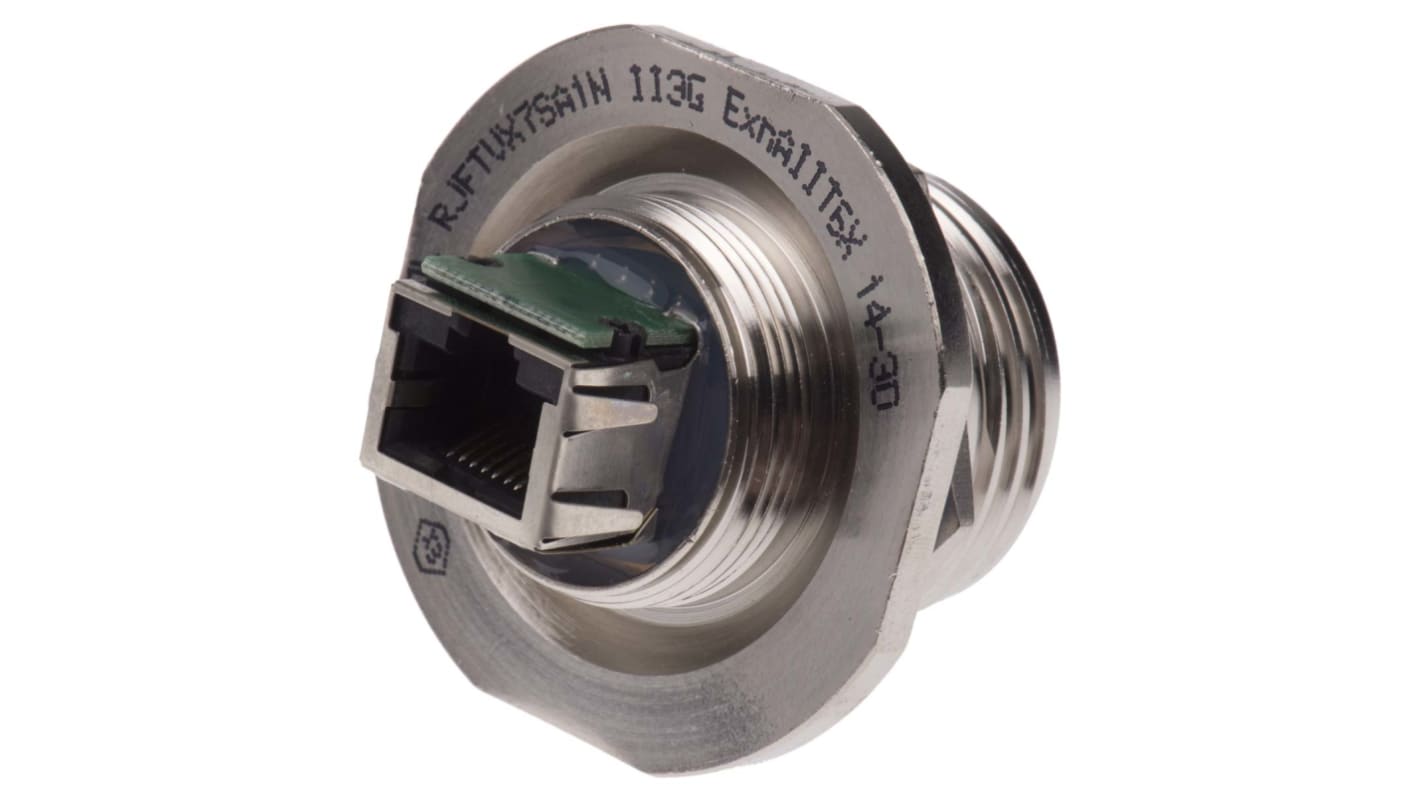

Amphenol Socapex RJFTVX Series RJ45 Connector Female, Jam Nut, Cat5e Shielded Straight 1 Port 8 Way

Bénéficiez d'une remise sur les achats en gros

Ajoutez 5 de plus pour économiser 82,35 €

Consulter les options de prix de gros

Sous-total (1 unité)*

235,30 €

(TVA exclue)

284,71 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • Plus 17 unité(s) expédiée(s) à partir du 23 novembre 2026
  • Plus 20 unité(s) expédiée(s) à partir du 01 décembre 2026
  • Plus 30 unité(s) expédiée(s) à partir du 23 décembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité
Prix par unité
Économie
1 - 4235,30 €-
5 +218,83 €82,35 €

*Prix donné à titre indicatif

N° de stock RS:
814-2354
Numéro d'article Distrelec:
304-00-644
Référence fabricant:
RJFTVX7SA1N
Fabricant:
Amphenol Socapex
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Amphenol Socapex

Product Type

RJ45 Connector

Ethernet Connector Type

RJ45

LAN Category

Cat5e

Mount Type

Jam Nut

Number of Ports

1

Number of Ways

8

Connector Type

Receptacle

Connector Gender

Female

Shield Type

Shielded

Orientation

Straight

IP Rating

IP68

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

60°C

Length

46.02mm

Depth

43.09mm

Standards/Approvals

No

Series

RJFTVX

Hazardous Area Certification

ATEX

Width

46.02mm

Contact Material

Copper Alloy

Contact Plating

Gold

Pays d'origine :
FR

RJFTV, RJ11FTVX Field Connectors Zone 2


A range of Atex Field Bus RJ45 and RJ11 connectors designed for device group II category 3 applications from Amphenol. The RJFTVX connectors allow the use of Cat5e networks in ATEX zone 2 environments. These metallic, rugged, sealed connectors allow the use of standard RJ45 cordsets. The RJ11FTVX connectors allow the use of standard phone RJ11/RJ12 connection in ATEX zone 2 environments. These metallic, rugged, sealed connectors allow the use of standard RJ11 / RJ12 cordsets. All models are highly reliable and excellent quality.

Amphenol Field


These USB Field and RJ Field reinforced Infocom Connectors allows use of a standard USB and RJ connection in harsh environments. Standard cordsets can be inserted into metallic plugs and receptacles which will protect them from shocks, dust and fluids. There is no requirement for hazardous in-field cabling and grounding.
