RS Better World
Schneider Electric Actassi Series RJ45 Connector Female, Cable, Cat6 F/FTP, F/UTP, S/FTP, SF/UTP, U/FTP Straight 1 Port
- N° de stock RS:
- 781-0848
- Référence fabricant:
- VDIB17726B12
- Fabricant:
- Schneider Electric
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
11,47 €
(TVA exclue)
13,88 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 83 unité(s) prête(s) à être expédiée(s)
- Plus 485 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 14 | 11,47 € |
| 15 - 49 | 10,45 € |
| 50 + | 9,98 € |
*Prix donné à titre indicatif
Notre gamme de produits Better World vous facilite l'accès à des produits plus durables et plus fiables.
En savoir plus sur les produits RS Better World
- N° de stock RS:
- 781-0848
- Référence fabricant:
- VDIB17726B12
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat6 | |
| Mount Type | Cable | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Type | RJ45 Socket | |
| Connector Gender | Female | |
| Shield Type | F/FTP, F/UTP, S/FTP, SF/UTP, U/FTP | |
| Orientation | Straight | |
| Termination Type | IDC | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Length | 35mm | |
| Depth | 28mm | |
| Hazardous Area Certification | No | |
| Series | Actassi | |
| Width | 18mm | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat6 | ||
Mount Type Cable | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Type RJ45 Socket | ||
Connector Gender Female | ||
Shield Type F/FTP, F/UTP, S/FTP, SF/UTP, U/FTP | ||
Orientation Straight | ||
Termination Type IDC | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Length 35mm | ||
Depth 28mm | ||
Hazardous Area Certification No | ||
Series Actassi | ||
Width 18mm | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Statut RoHS : Exempté
- Pays d'origine :
- DK

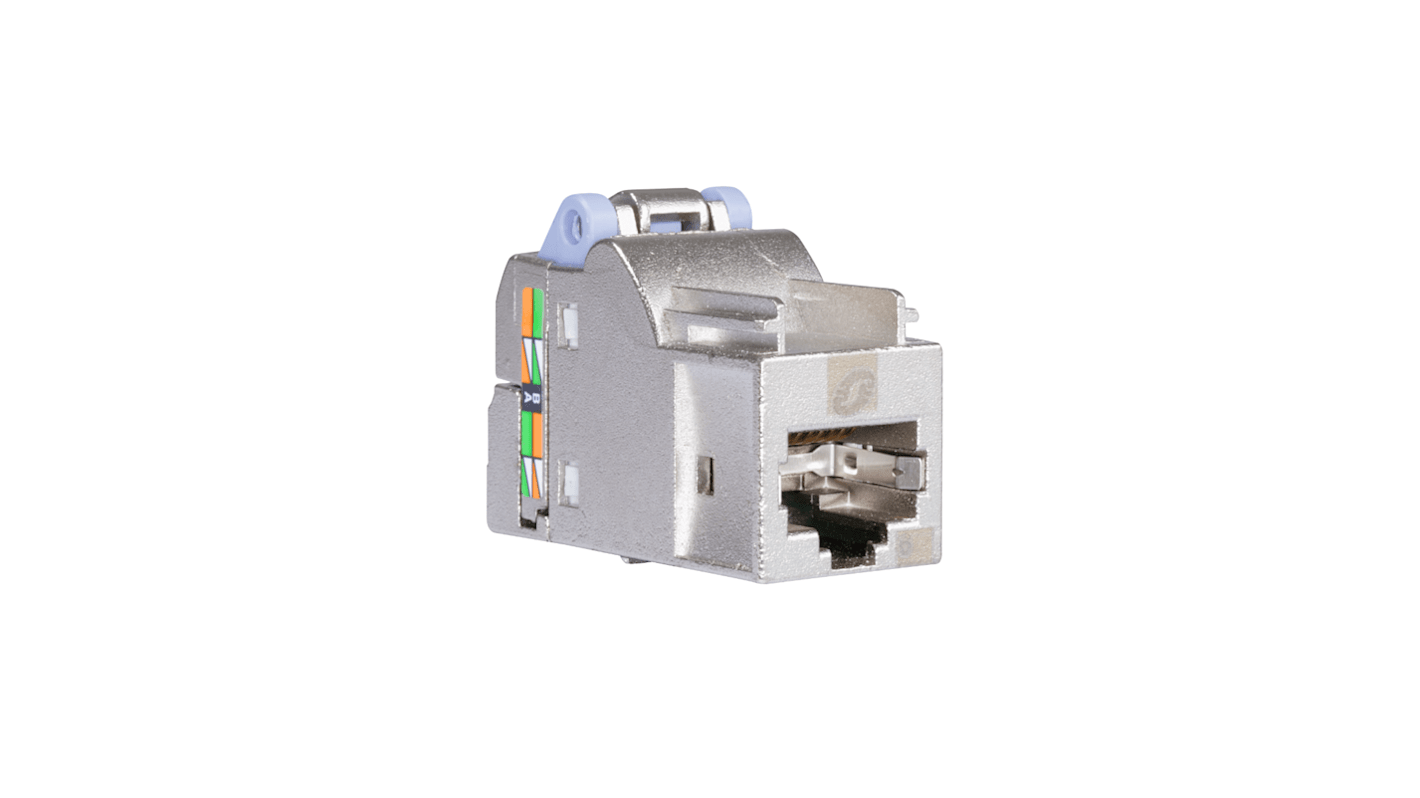

Schneider Electric Female Ethernet Connector, RJ45, Cat6 - Actassi Series - VDIB17726B12
Enjoy seamless connectivity with this RJ45 (radio jack) Ethernet connector from Schneider Electric. It provides an intuitive and simple connection for high-performance network cables used in data centres. This shielded unit reduces the chance of cross-talk and delivers clear transmission of signals. It's supplied as a pre-assembled, single component so you benefit from fast installation time. This superior product's state-of-the-art technology helps to enhance productivity in workspaces with its uninterrupted end-to-end connectivity capabilities.
Features & Benefits
• Automatic earthing for improved electrical safety
• Opens and closes with the flip of a finger for tool-free access to its electrical terminals
• U-shaped cable entry for easy and simple insertion of conductors
• Gold contact plating for protection against oxidation and corrosion
Applications
• Building infrastructure
• Technical control rooms
• Industrial automation
• Telecommunication centres
Do I need any tools when wiring cables to this connector?
Cutting pliers are the only tool you'll need when wiring this component. Once your conductors are inserted, use the connector's cutting rim to gauge where to snip your wires for neat wire terminations.
What size of wires are compatible with this connector?
This connector accepts wires ranging in size from 25 to 22AWG (American Wire Gauge).
