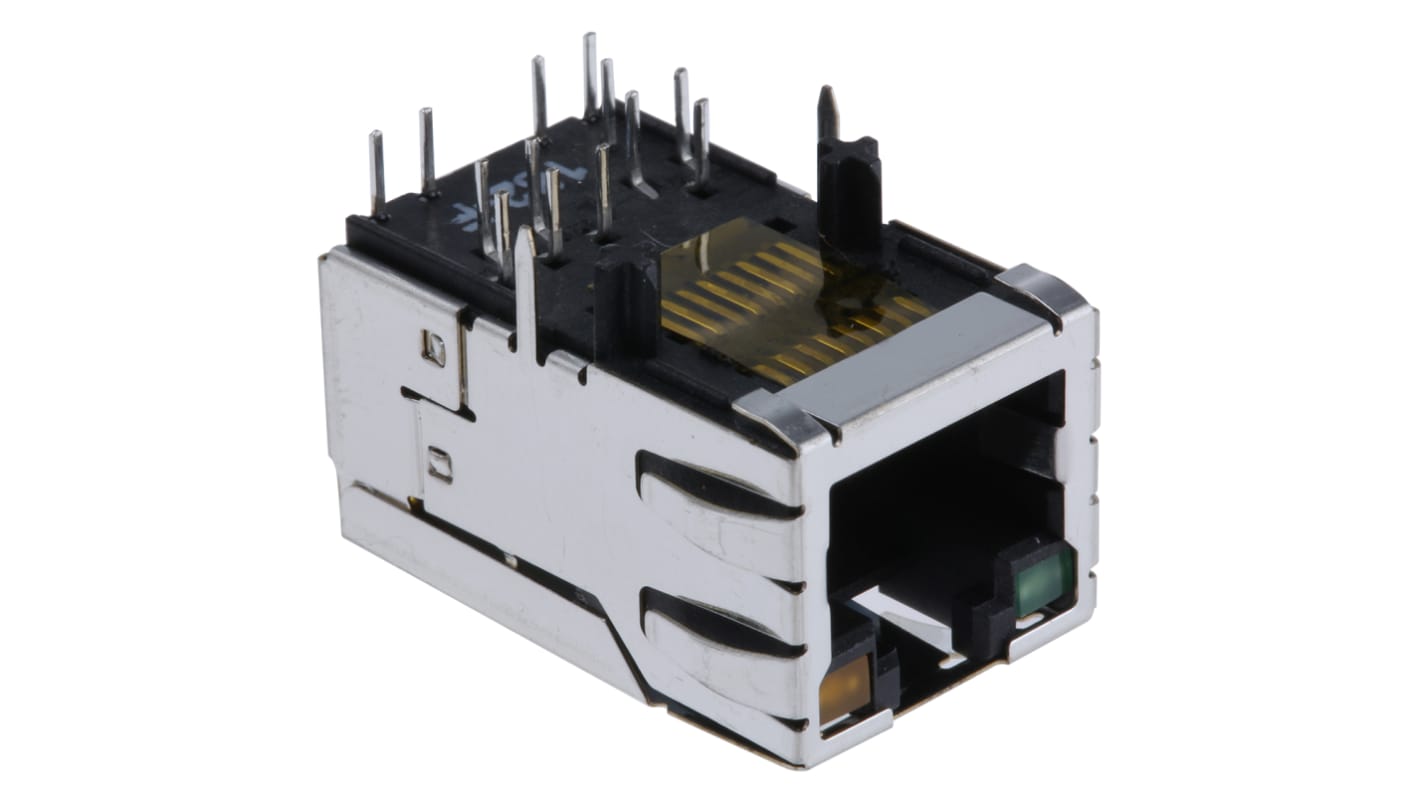

Bel-Stewart MagJack Series RJ45 Connector Female, Through Hole STP Shield Straight 1 Port 8 Way
- N° de stock RS:
- 741-8587
- Référence fabricant:
- SI-52007-F
- Fabricant:
- Bel-Stewart
Actuellement indisponible
Désolés, nous ne savons pas quand ce produit sera réapprovisionné.
- N° de stock RS:
- 741-8587
- Référence fabricant:
- SI-52007-F
- Fabricant:
- Bel-Stewart
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Bel-Stewart | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| Mount Type | Through Hole | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Type | Modular Jack | |
| Connector Gender | Female | |
| Shield Type | STP | |
| Orientation | Straight | |
| LED | Yes | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Series | MagJack | |
| Width | 17.98mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Length | 15.21mm | |
| Depth | 25.4mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Sélectionner tout | ||
|---|---|---|
Marque Bel-Stewart | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
Mount Type Through Hole | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Type Modular Jack | ||
Connector Gender Female | ||
Shield Type STP | ||
Orientation Straight | ||
LED Yes | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Series MagJack | ||
Width 17.98mm | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Length 15.21mm | ||
Depth 25.4mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
- Pays d'origine :
- CN
Stewart Magjack Connector Modules
A range of Stewart Magjack connector modules which provide a comprehensive portfolio of integrated devices that combine Bel’s connectors and magnetics. These modules provide the signal conditioning, EMI suppression and signal isolation previously performed by multiple (7+), discrete components. Each Magjack connector employed reduces PCB real estate use by more than 50% per RJ port. All models are highly reliable and excellent quality.
Features & Benefits
Both straight and right angle available;Mounting type: Through hole
