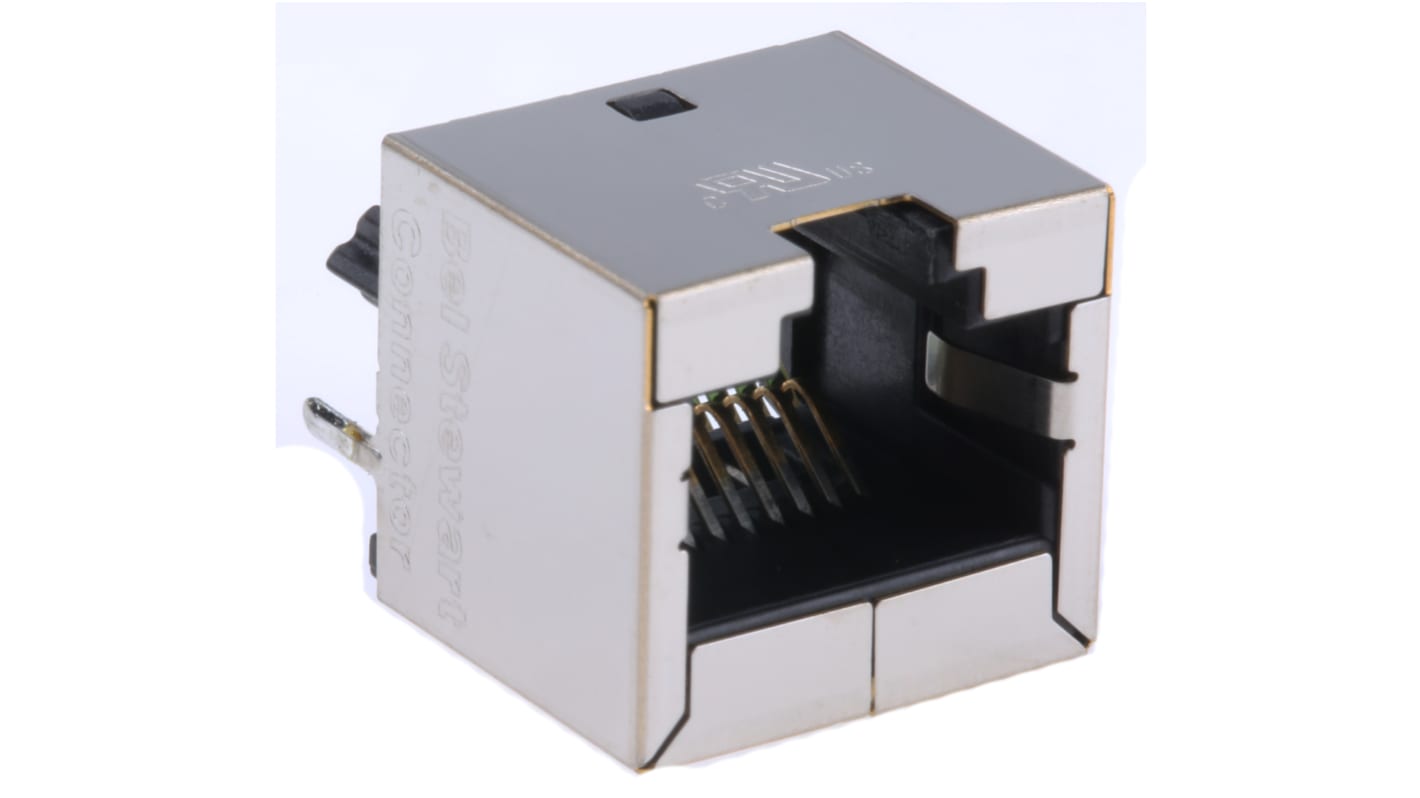

Bel-Stewart SS-60300 Series RJ45 Connector Female, Through Hole, Cat6a Shielded Straight 1 Port 8 Way
- N° de stock RS:
- 741-8530
- Référence fabricant:
- SS-60300-016
- Fabricant:
- Bel-Stewart
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
7,51 €
(TVA exclue)
9,09 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Dernier stock RS
- 3 dernière(s) unité(s), prête(s) à l'envoi d'un autre centre de distribution
Unité | Prix par unité |
|---|---|
| 1 - 14 | 7,51 € |
| 15 - 49 | 7,01 € |
| 50 + | 6,68 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 741-8530
- Référence fabricant:
- SS-60300-016
- Fabricant:
- Bel-Stewart
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Bel-Stewart | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat6a | |
| Mount Type | Through Hole | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Type | Modular Jack | |
| Connector Gender | Female | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| LED | No | |
| Termination Type | Solder | |
| Standards/Approvals | No | |
| Width | 15.75mm | |
| Series | SS-60300 | |
| Hazardous Area Certification | No | |
| Depth | 14.48mm | |
| Length | 14.33mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Sélectionner tout | ||
|---|---|---|
Marque Bel-Stewart | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat6a | ||
Mount Type Through Hole | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Type Modular Jack | ||
Connector Gender Female | ||
Shield Type Shielded | ||
Orientation Straight | ||
LED No | ||
Termination Type Solder | ||
Standards/Approvals No | ||
Width 15.75mm | ||
Series SS-60300 | ||
Hazardous Area Certification No | ||
Depth 14.48mm | ||
Length 14.33mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
- Pays d'origine :
- CN
Stewart Shielded & Unshielded Data Sockets
Brought to you by Bel-Stewart, these sockets are treated with an environmental coating. This enables the sockets to be used in harsh environments while still protecting the contacts. It also acts as a lubricant and increases the product mating cycles to over 10000 cycles. All models are highly reliable and excellent quality.
Features & Benefits
Minimum of 750 insertion cycles ;UL 94-V0 plastic;Preloaded, formed wire contacts offer superior mechanical and electrical performance;90°, 180°, multi-port, and cable-ready versions available
