TE Connectivity 216548 Series RJ25 Connector Female, Through Hole, Cat3 Unshielded Straight 2 Port 6 Way
- N° de stock RS:
- 615-4305
- Numéro d'article Distrelec:
- 304-51-768
- Référence fabricant:
- 216548-1
- Fabricant:
- TE Connectivity

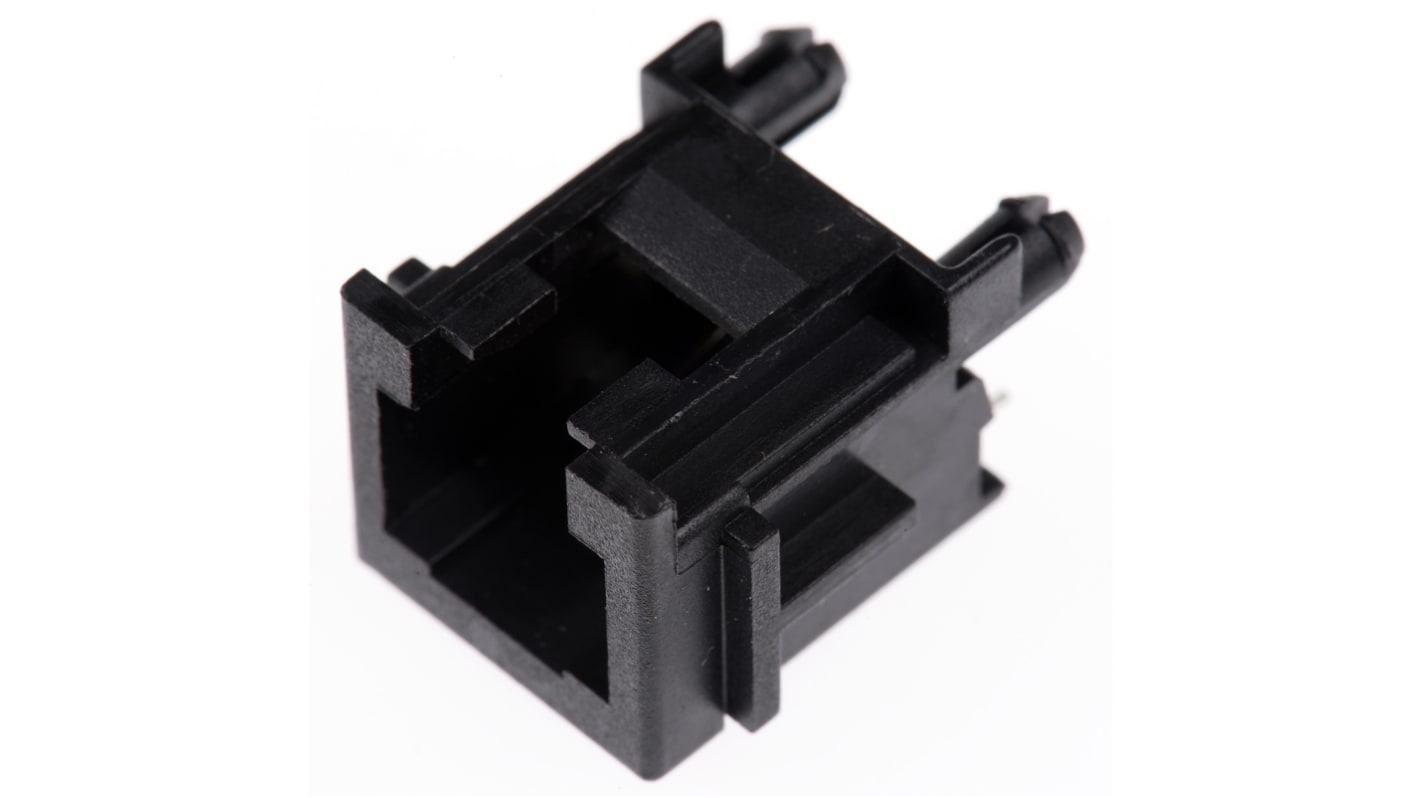

Visuel non contractuel
Actuellement indisponible
Désolés, nous ne savons pas quand ce produit sera réapprovisionné.
- N° de stock RS:
- 615-4305
- Numéro d'article Distrelec:
- 304-51-768
- Référence fabricant:
- 216548-1
- Fabricant:
- TE Connectivity
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | TE Connectivity | |
| Product Type | RJ25 Connector | |
| Ethernet Connector Type | RJ25 | |
| LAN Category | Cat3 | |
| Mount Type | Through Hole | |
| Number of Ports | 2 | |
| Number of Ways | 6 | |
| Connector Gender | Female | |
| Connector Type | Modular Jack | |
| Shield Type | Unshielded | |
| Orientation | Straight | |
| LED | No | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Series | 216548 | |
| Width | 16.4mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Length | 16mm | |
| Depth | 12.4mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold over Nickel | |
| Sélectionner tout | ||
|---|---|---|
Marque TE Connectivity | ||
Product Type RJ25 Connector | ||
Ethernet Connector Type RJ25 | ||
LAN Category Cat3 | ||
Mount Type Through Hole | ||
Number of Ports 2 | ||
Number of Ways 6 | ||
Connector Gender Female | ||
Connector Type Modular Jack | ||
Shield Type Unshielded | ||
Orientation Straight | ||
LED No | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Series 216548 | ||
Width 16.4mm | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Length 16mm | ||
Depth 12.4mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold over Nickel | ||
- Pays d'origine :
- IN
TE Connectivity Cat 3 Single Port Right Angle PCB Mount 6 Pole Modular Jacks
6 Pole Cat 3 single port right angle PCB mount modular RJ11, RJ14 and RJ25 jacks with high temperature thermoplastic housings. These Cat 3 modular jacks are available as through hole or SMT mounting with nickel plated copper alloy shielding and various heights and solder tail lengths. Other additional features include PCB and panel grounding options, panel stops to provide additional mechanical support, keying that enables the modular jack to be mated securely with a keyed plug and latching. Please refer to additional data table for details.
Approvals
UL94V-0
